CZT 18533 (7800380) - Simplicity Axion 33" Zero-Turn Mower, 18.5hp Lift Group - 33" Deck Parts Diagram

Axion 33" Zero-Turn Mower, 18.5hp

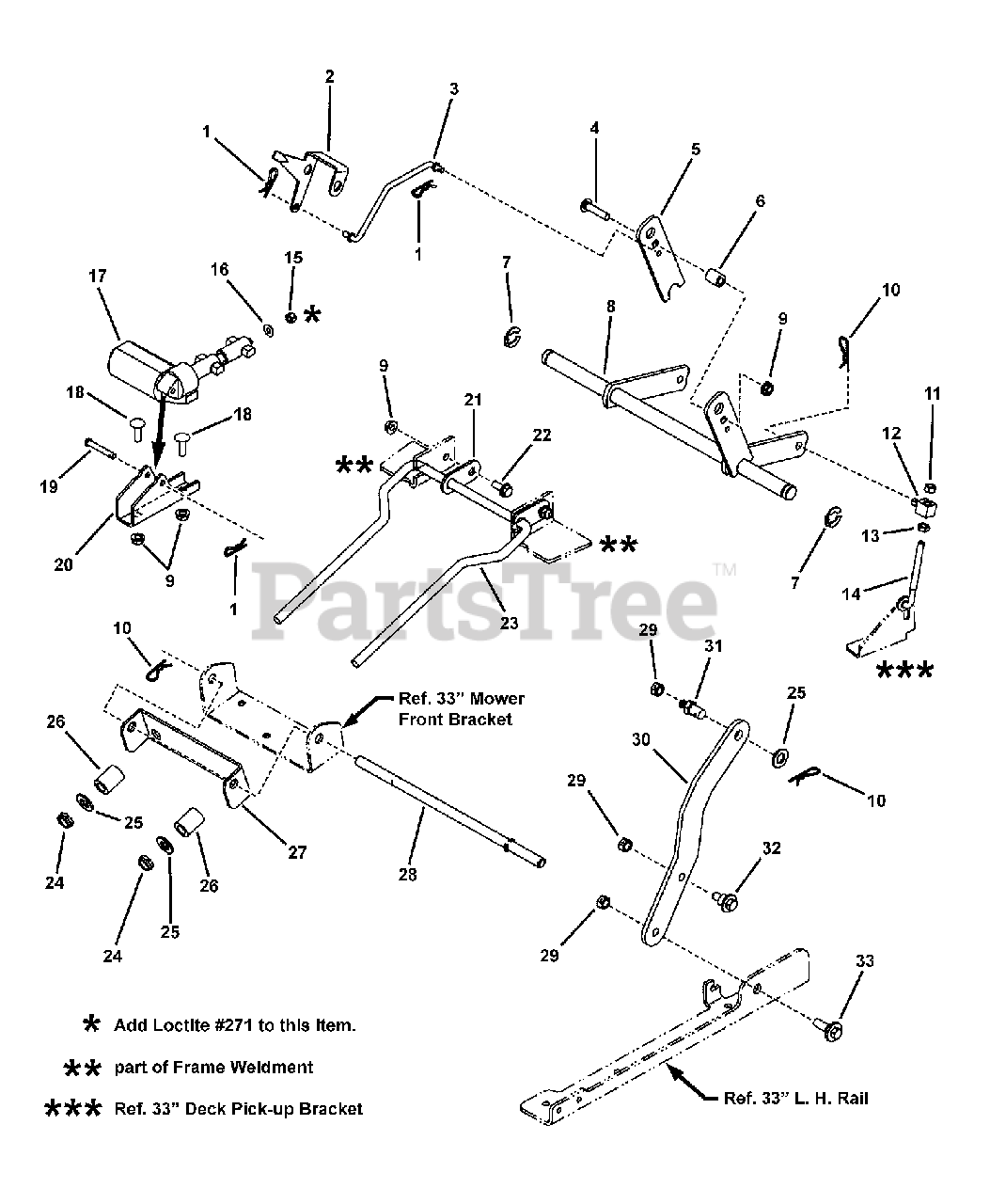

Lift Group - 33" Deck Parts Diagram

  • Title

1

Simplicity 1722460SM

CLIP, Hair Pin
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

2

Simplicity 1733454SM

INDICATOR, Height-of-Cut

$19.99

$

Usually ships in 2-12 days

0

3

Simplicity 1733572SM

ROD, Height-of-Cut Indicator

$11.99

$

In Stock, only 1 left!

0

4

Simplicity 1931337SM

BOLT, 5/16-18 x 1-1/2" Round Head Short Square Neck, GR5
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 1734336ASM

ARM, Lift Trunnion

$62.99

$

Usually ships in 2-12 days

0

6

Simplicity 1673796SM

SPACER, .328 I.D. x .625 O.D. x .781 Long (Powdered metal)

$24.99

$

Usually ships in 2-12 days

0

7

Simplicity 1611710SM

KLIPRING, External for .750 Dia. Shaft

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1735045ASM

WELDMENT, Lift Shaft, 33" Mower
(Superseded to 1735045BMYP)

$122.99

$

Usually ships in 2-12 days

0

9

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Simplicity 1960074SM

CLIP, Hair Pin .093 Dia.
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 7091067SM

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

12

Simplicity 7073607SM

SWIVEL, Brake Link (Powdered Metal)

$9.99

$

In Stock, only 2 left!

0

13

Simplicity 1920161SM

NUT, 5/16-18 Hex Jam, Black

$4.49

$

In Stock, only 2 left!

0

14

Simplicity 7028728SM

ROD, Height Adjust, 3.68"
(Superseded to 703827)

Note: (Long)

$10.99

$

In Stock, Qty 12

0

15

Simplicity 1960757SM

NUT, 1/4-20 Hex, L.H. Thread

$5.49

$

Usually ships in 2-12 days

0

16

Simplicity 1921319SM

WASHER, 1/4" Flat (.27 I.D. x .62 O.D.)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1733513SM

MOTOR, Mini-Actuator (Electric)
(Superseded to 7600123YP)

$159.99

$

In Stock, only 2 left!

0

18

Simplicity 1931335SM

BOLT, 5/16-18 x 1" Round Head Short Square Neck, GR5 Zinc
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

19

Simplicity 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1733533ASM

BRACKET, Electric Motor Mount
(Superseded to 1733533BMYP)

$9.99

$

Usually ships in 2-12 days

0

21

Simplicity 1731899ASM

PLATE, Pivot Lock

$

$

Not available

22

Simplicity 1930591SM

SCREW, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

23

Simplicity 1730097SM

ROD, Bail (1/2-13 thread, 2 places)

$43.99

$

Usually ships in 2-12 days

0

24

Simplicity 1960379SM

NUT, 1/2-13 Hex Jam

$4.99

$

In Stock, Qty 18

0

25

Simplicity 1960170SM

WASHER, 1/2" Flat (0.51 I.D. x 1.00 O.D. x .10 Thick)
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

26

Simplicity 1679166SM

SPACER, .520 I.D. x .88 I.D. x 1.185 Long

$7.49

$

In Stock, only 2 left!

0

27

Simplicity 1730221ASM

HANGER, Front

$12.99

$

In Stock, only 2 left!

0

28

Simplicity 1735033SM

PIN, Hitch

$

$

Not available

29

Simplicity 7091585SM

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

30

Simplicity 7300024SM

BAR, Rear Lift, 38/42
(Superseded to 7300024BMYP)

$19.99

$

Usually ships in 2-12 days

0

31

Simplicity 094067MA

PIN, 3/8-16 Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

32

Simplicity 009X52MA

SHOULDER BOLT, 3/8-16 x .600 O.D. x .95 Long

$6.49

$

In Stock, only 2 left!

0

33

Simplicity 1732129SM

SHOULDER BOLT, 3/8-16 x .94

$5.99

$

Usually ships in 2-12 days

0
