CZT 18533 (7800380) - Simplicity Axion 33" Zero-Turn Mower, 18.5hp Frame, Body & Seat Group Parts Diagram

Axion 33" Zero-Turn Mower, 18.5hp

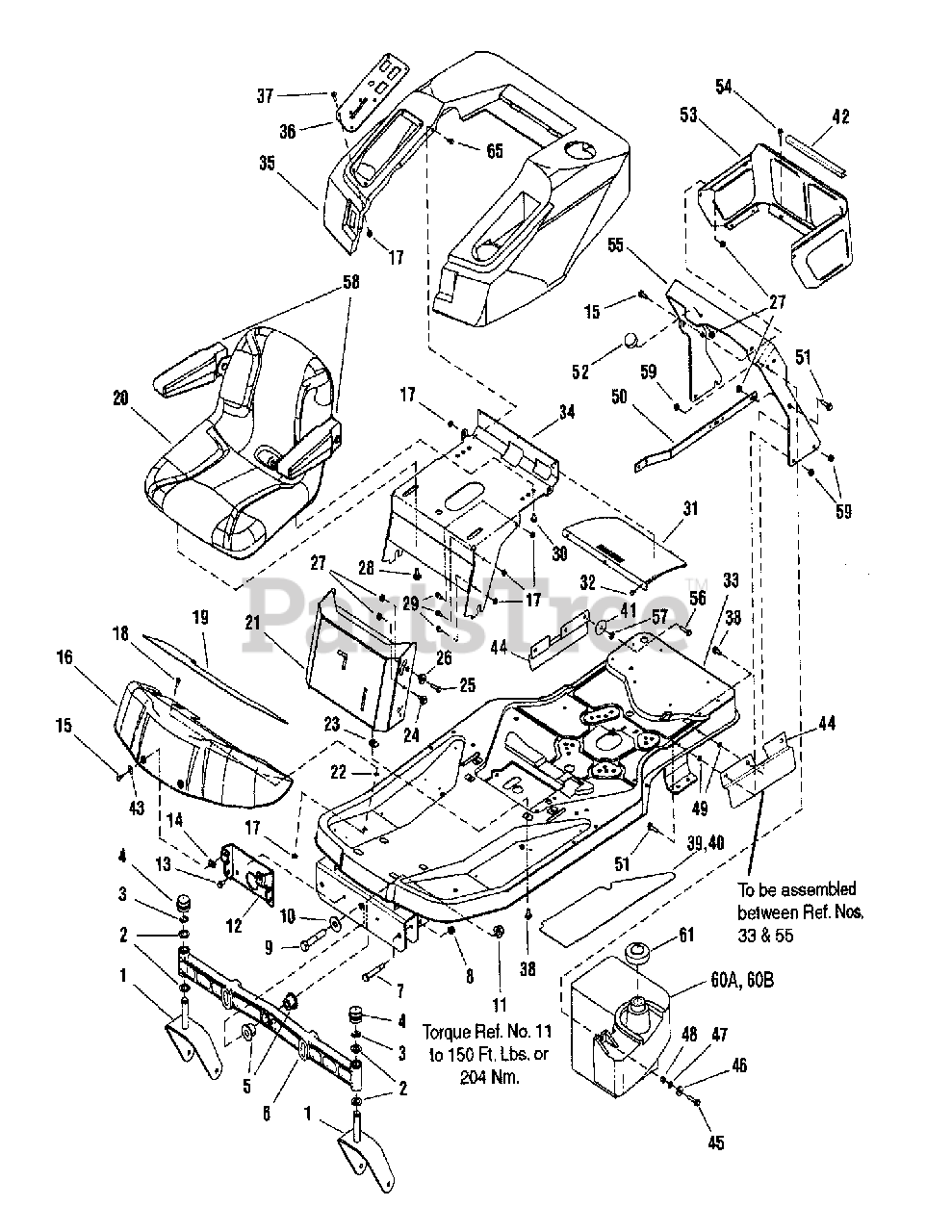

Frame, Body & Seat Group Parts Diagram

  • Title

1

Simplicity 1733448ASM

WELDMENT, Caster Yoke & Spindle- Black
(Superseded to 1733448BMYP)

$152.99

$

In Stock, only 3 left!

0

2

Simplicity 1960160SM

WASHER, .75 ID x 1.60 OD x .05 Thick Flat (Black)

$4.99

$

In Stock, Qty 9

0

3

Simplicity 1611710SM

KLIPRING, External for .750 Dia. Shaft

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1734135SM

CAP, Hub 1.481 I.D. x .62 Long Red Poly

$5.99

$

In Stock, Qty 20+

0

5

Simplicity 1730186SM

BUSHING, Axle Pivot PM Regent Yellow

$6.99

$

In Stock, Qty 12

0

6

Simplicity 1733426ASM

AXLE, Front Iron Casting Machined ZT 2007
(Superseded to 1733426SM)

$243.99

$

Usually ships in 2-12 days

0

7

Simplicity 1733571SM

SHOULDER BOLT, 3/8-16 x 3" Long .50 Sh GR5 Black
(Superseded to 703427)

$5.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960687SM

NUT, 3/8-16 Hex Flange Nyloc
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 2860744SM

SCREW, 5/8-11 x 3-1/4" Hex Head Cap, GR5 Yellow

$8.49

$

Usually ships in 2-12 days

0

10

Simplicity 1960035SM

WASHER, 0.64 I.D. x 1.75 O.D. x .11 Thick, Black

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 2860646SM

NUT, Hex Flange 5/8-11 Two Way Lock Yellow

$10.99

$

In Stock, Qty 6

0

12

Simplicity 1733304ASM

BRACKET, Footrest Support, 12 Ga Sears- Black

$52.99

$

Usually ships in 2-12 days

0

13

Simplicity 1930601SM

SCREW, 5/16-18 x .62 Taptite
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

14

Simplicity 1960368SM

SPEED NUT, 1/4-20 Lug Type .025/.150 Black
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1921333SM

SCREW, 5/16-18 x 1" Hex Head Cap
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1726025CSM

PANEL, Footrest, 18 Ga ZT 7000 Gloss Orange

$159.99

$

Usually ships in 2-12 days

0

17

Simplicity 1960694SM

NUT, 1/4-20 Hex Flange Nyloc Black
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1931317SM

BOLT, 1/4-20 x 2" Round Head Short Square Neck, GR5 Black
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

19

Simplicity 1726306SM

PAD, Footrest Center Black Vinyl Sears

$119.99

$

Usually ships in 2-12 days

0

20

Simplicity 1726018SM

ASSEMBLY, Seat w/Arm Rests ZTR Sears

$744.99

$

In Stock, only 1 left!

0

21

Simplicity 7300752ASM

PANEL, Front - Manual Brake & Deck Lift
(Superseded to 7300752AYP)

$72.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960518SM

RETAINER, 1/4" Bolt
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1935255SM

SPEED NUT, 5/16 -18 Lug Type .025/.150 B

$3.49

$

In Stock, only 2 left!

0

24

Simplicity 009X67MA

SHOULDER BOLT, 5/16-18

$5.49

$

In Stock, only 3 left!

0

25

Simplicity 1960223SM

BOLT, 5/16-18 x 1-1/4" Round Head Short Square Neck GR5 Black
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

26

Simplicity 1728086SM

PIVOT, Hood (Powdered Metal)

$5.99

$

In Stock, Qty 7

0

27

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

28

Simplicity 1716654SM

BOLT, 5/16-18 Idler Pivot

$5.49

$

In Stock, only 2 left!

0

29

Simplicity 1960295SM

SCREW, 1/4-20 x 5/8" Hex Whiz Lock Flange

$4.49

$

In Stock, only 1 left!

0

30

Simplicity 1960738SM

SCREW, 5/16-18 x 3/4" Hex Flange Lock Dog Point
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

31

Simplicity 7102141SM

SCREEN, Deck Top

$42.99

$

In Stock, only 1 left!

0

32

Simplicity 1673320SM

RIVET, .188 x .617 Large Flange

$4.49

$

In Stock, Qty 8

0

33

Simplicity 1735028ASM

WELDMENT, Frame- 33" ZT

$

$

Not available

33

Simplicity 1733227ASM

WELDMENT, Frame- 42" & 50" ZT (Black)

$866.99

$

Usually ships in 2-12 days

0

34

Simplicity 1733965ASM

SUPPORT, Seat Deck 12 GA ZTS Sears-Black

$289.99

$

In Stock, only 1 left!

0

35

Simplicity 1734144SM

SEAT DECK, Orange Poly Sears ZTS

$780.99

$

Usually ships in 2-12 days

0

36

Simplicity 1734252ASM

PLATE, Control 12 GA ZTS 2007- Black

$21.99

$

Usually ships in 2-12 days

0

37

Simplicity 1960715SM

SCREW, 1/4-20 x 3/4" Truss Head Torx Black
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

38

Simplicity 7091591SM

BOLT, 5/16-18 x 1" Hex Flange Lock YZ
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

39

Simplicity 1728986SM

PAD, Footrest RH Black Vinyl w/Adhesive Sears

$10.99

$

Usually ships in 2-12 days

0

40

Simplicity 1728987SM

PAD, Footrest LH Black Vinyl w/Adhesive Sears

$10.99

$

In Stock, only 1 left!

0

41

Simplicity 1960534SM

WASHER, .375 Flat (0.41 I.D. x 1.50 O.D. x .25 Thick) Black

$

$

Not available

42

Simplicity 1735680SM

TRIM, 8"

$8.99

$

Usually ships in 2-12 days

0

43

Simplicity 2820426SM

WASHER, 5/16" External Tooth Lock Washer Yellow

$4.49

$

In Stock, only 1 left!

0

44

Simplicity 1734392ASM

GUARD, Debris 12 Ga Sears ZTR 2007- Black

$20.99

$

Usually ships in 2-12 days

0

45

Simplicity 1921221SM

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR5 Black
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

46

Simplicity 1919381SM

WASHER, 5/16" Flat (.341 I.D. x 1.00 O.D. x .13 Thick) Black
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

47

Simplicity 7090189SM

WASHER 5/16" Internal/External Tooth Lock, BZ
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

48

Simplicity 7024340SM

SPACER, .316 x .375 x .300/.310

$4.99

$

In Stock, only 4 left!

0

49

Simplicity 1933988SM

PUSH NUT, 5/16" Dia. Thread .625 O.D. Black (Pal)
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

50

Simplicity 1734323ASM

STRAP, Fuel Tank Brace

$28.99

$

Usually ships in 2-12 days

0

51

Simplicity 1921977SM

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5 Black
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

52

Simplicity 1726390SM

BUMPER, Rubber 1.50 DIA 0.5 Thick Sears

$9.99

$

Usually ships in 2-12 days

0

53

Simplicity 1715962ASM

SHROUD, Rear 20 GA ZTR 14+16, Cor Black
(Superseded to 7301146AYP)

$68.99

$

Usually ships in 2-12 days

0

54

Simplicity 1925003SM

SCREW, 1/4-20 x 1/2" Hex Washer Head Screw Black (Taptite)
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

55

Simplicity 1733393ASM

SUPPORT, Seat Deck .250 Thick Sears- Black

$307.99

$

Usually ships in 2-12 days

0

56

Simplicity 1920415SM

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, GR5 Black
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

57

Simplicity 1931942SM

PUSH NUT, .375 Dia. Thread .781 O.D. Black (Pal)
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

58

Simplicity 1687021SM

KIT, Arm Rest L.H. & R.H.

$240.99

$

Usually ships in 2-12 days

0

59

Simplicity 1960686SM

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

60A

Simplicity 7102378SM

ASSEMBLY, Fuel Tank (incl. below items 61, 63 & 64)

Note: used on 49-state models (excluding California)

$267.99

$

In Stock, only 1 left!

0

60B

Simplicity 7102688SM

ASS'Y, Fuel Tank (incl. below items 61 through 64)

Note: used on California models

$

$

Not available

61

Simplicity 1734320SM

ASSEMBLY, Fuel Cap (Vented)

$31.99

$

Usually ships in 2-12 days

0

62

Simplicity 7102690SM

TUBE, Fuel Pickup (not shown)
(Superseded to 7102690YP)

$14.99

$

Usually ships in 2-12 days

0

63

Simplicity 1674792SM

ELBOW, Gas Tank (not shown)

$15.99

$

In Stock, Qty 13

0

64

Simplicity 1726400SM

BUSHING, Fuel (not shown)
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

65

Simplicity 1930594SM

SCREW, 1/4-20 x 3/4" Hex Flange Lock Black
(Superseded to 1935450SM)

$4.49

$

In Stock, only 1 left!

0
