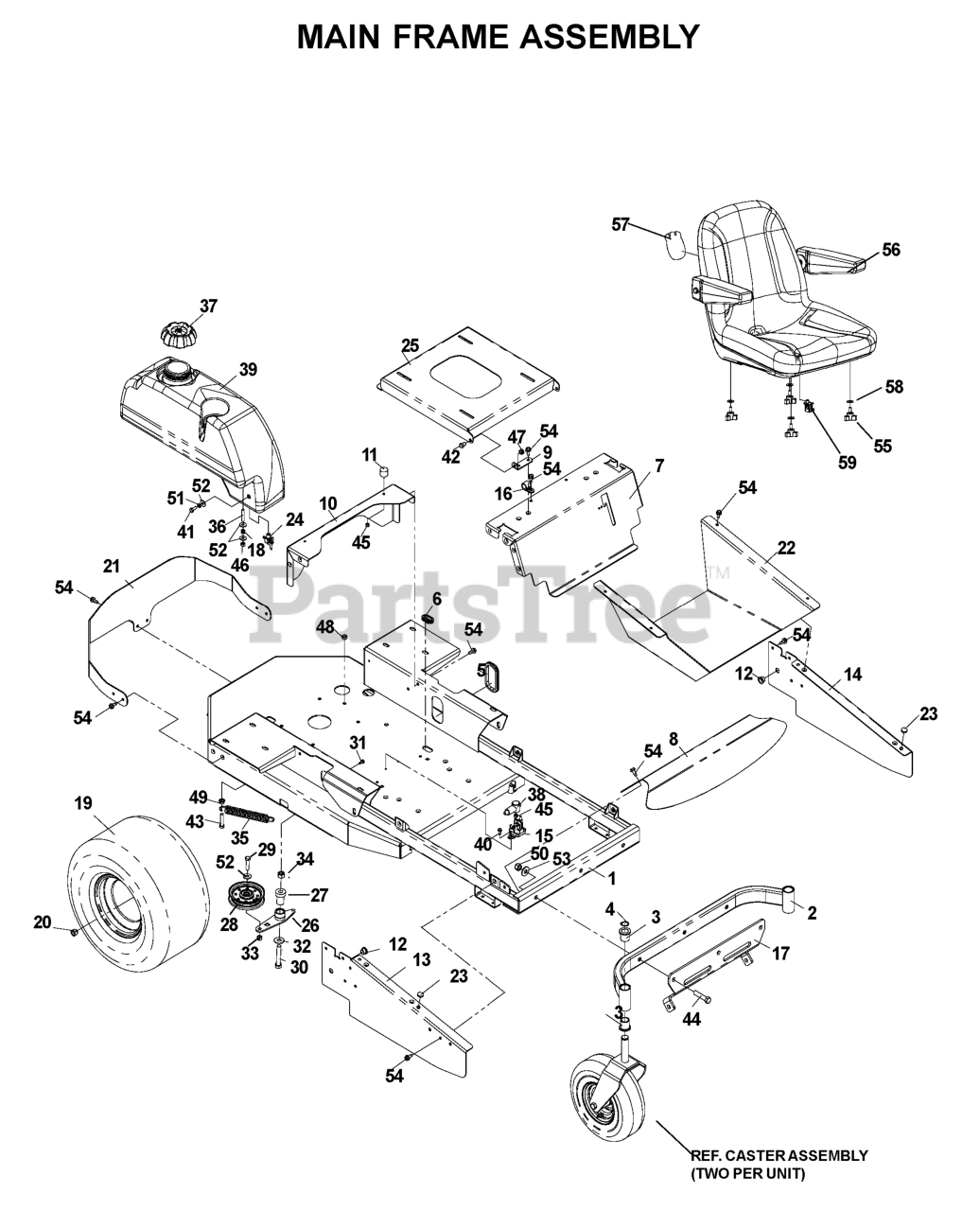

CZE 4818 KAA (968999228) - Husqvarna 48" Zero-Turn Mower (2003-11) FRAME Parts Diagram

48" Zero-Turn Mower

FRAME Parts Diagram

  • Title

59

Husqvarna 539107523

SEAT SWITCH

$10.99

$

In Stock, Qty 6

0

45

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

32

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539107587

FLOOR PAN-ORANGE

$113.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539107565

REAR SUPPORT-ORANGE

$

$

Not available

53

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

539912234

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

49

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

29

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 539102685

LOOM CLIP

$4.99

$

Usually ships in 3-10 days

0

539108009

Husqvarna 539108009

TIRE 18 X 9.5-8 4 PLY

$194.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

23

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

12

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

20

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

46

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

4

Husqvarna 539101151

RETAINING RING, 7/8"

$

$

Not available

28

Husqvarna 539107620

FLAT IDLER PULLEY
(Superseded to 532175820)

$

$

Not available

5

Husqvarna 539107116

GROMMET

$14.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539107967

MAINFRAME W/DECALS

$

$

Not available

42

Husqvarna 539106776

BOLT .375 X .5

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539107575

REAR BUMPER-BLACK

$78.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539107966

SEAT SUPPORT W/DECALS

$61.99

$

Usually ships in 3-10 days

0

539108008

Husqvarna 539108008

RIM.8"X6.38".ZTR
(Superseded to 579753401)

$265.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539104789

DECAL, CROWN H

$

$

Not available

39

Husqvarna 539104409

LEFT TANK W/CUP HOLDER

$

$

Not available

37

Husqvarna 539107598

FUEL CAP
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

43

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 539108045

CASTER AXLE W/BUSHING

$

$

Not available

17

Husqvarna 539107480

STRUT MOUNT

$51.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539107547

TIRE ASSY
(Superseded to 579753401)

$265.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539108744

SEAT W/ARMRESTS

$

$

Not available

51

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

52

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539107585

FRONT FOOT PLATE

$47.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

31

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539107706

HEX SCREW-.5C X 2.25

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539107579

RH FRAME SIDE-ORANGE

$48.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

6

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

15

Husqvarna 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539107804

FUEL VALVE

$

$

Not available

41

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 539107968

SEAT SUPPORT W/DECALS

$61.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 539107561

SEAT BRACKET-BLACK

$28.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539107581

LH FRAME SIDE-ORANGE

$33.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 7

0

33

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

18

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 2 left!

0

35

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

11

Husqvarna 539105039

STUD/PLATE MOUNT

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539107553

PUMP IDLER ARM WELDMENT
(Superseded to 539109781)

$103.99

$

Usually ships in 3-10 days

0
