CZ 4818 (968999276) - Husqvarna 48" Zero-Turn Mower (2004-09) Motion Control Assembly Parts Diagram

48" Zero-Turn Mower

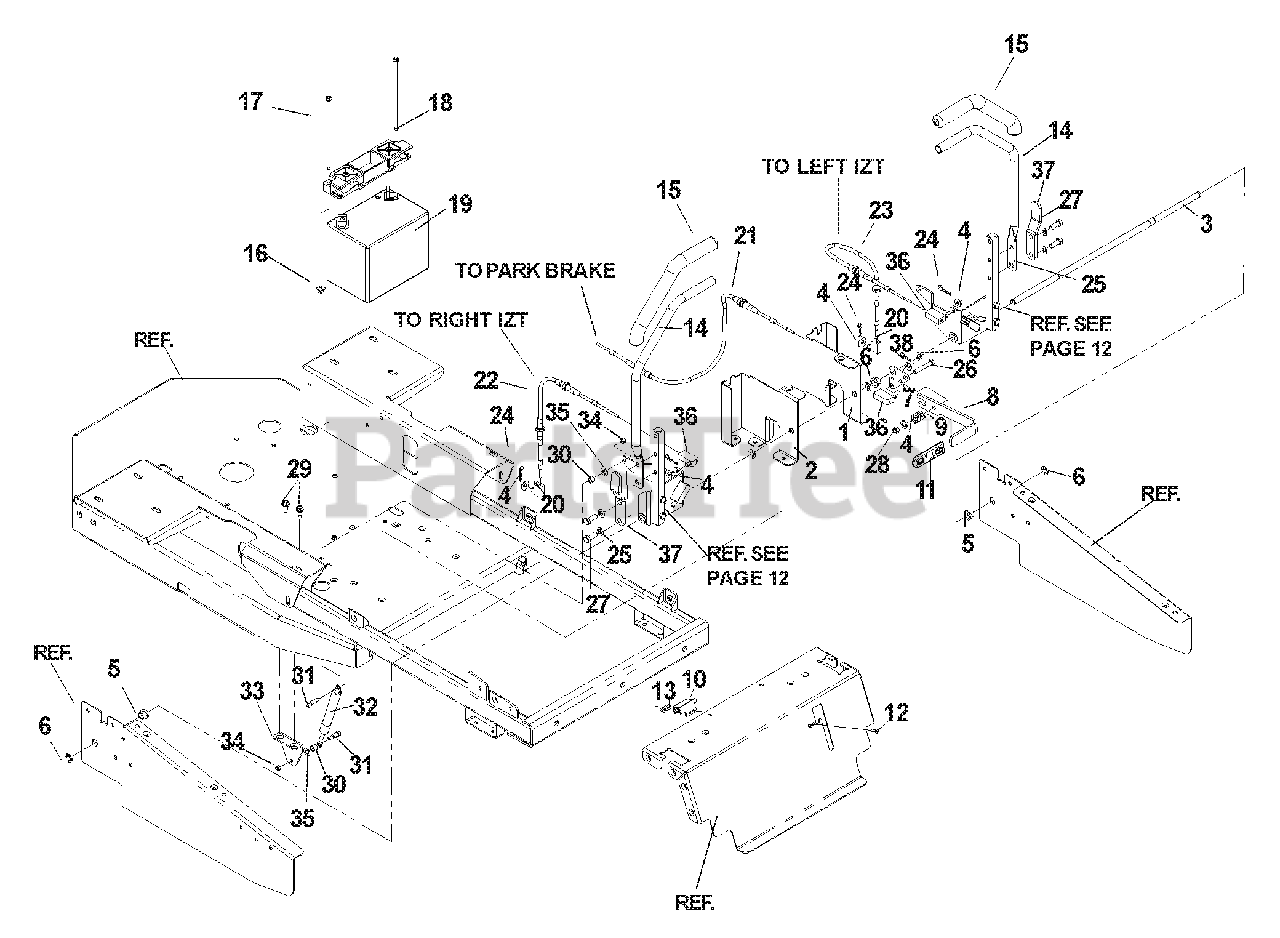

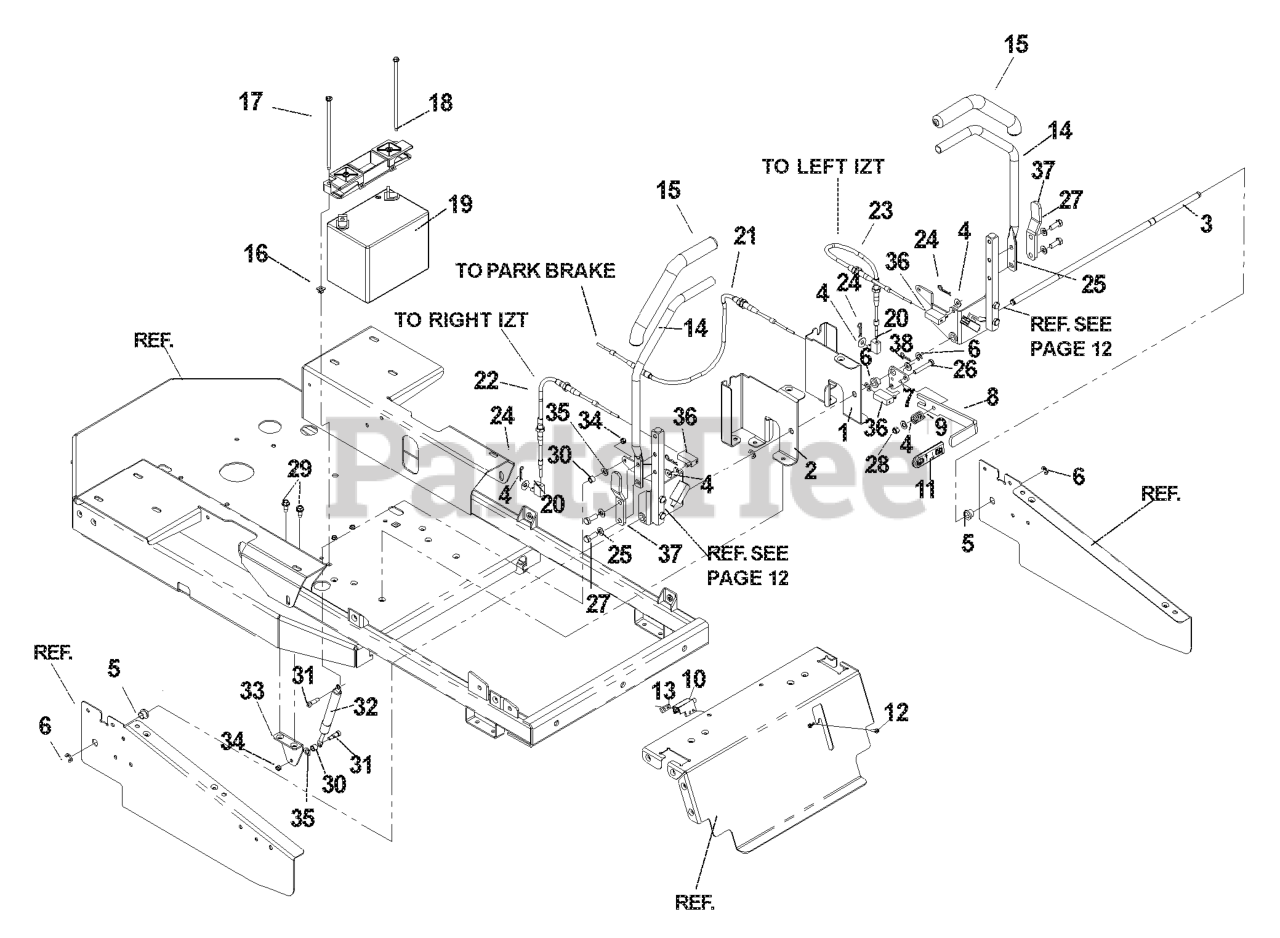

Motion Control Assembly Parts Diagram

  • Title
1

Husqvarna 539107528

BATTERY SUPPORT, LEFT

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539107530

BATTERY SUPPORT, RIGHT

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539107568

CONTROL PIVOT SHAFT

$

$

Not available

4

Husqvarna 539990692

WASHER, 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539100032

BUSHING, NYLON FLANGED

$

$

Not available

6

Husqvarna 539101949

E-RING, 1/2"

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539107603

BRAKE LEVER

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539107576

UPPER BRAKE LEVER

$17.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539101080

SWITCH N.C.

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539105036

GRIP, PARK BRAKE

$6.49

$

In Stock, only 2 left!

0

12

Husqvarna 539976952

SCREW, #10-24 X 5/8 MACH.
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

13

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

14

Husqvarna 539107526

CONTROL LEVER
(Superseded to 539108254)

$

$

Not available

15

Husqvarna 539102592

DRIVE LEVER CUSHION

$

$

Not available

16

Husqvarna 539107629

PUSH NUT, NYLON

$4.99

$

In Stock, Qty 7

0

17

Husqvarna 539107632

BOLT, 1/4-20 X 7 1/2

$

$

Not available

18

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

19

Husqvarna 539102436

BATTERY, DRY
(Superseded to 579411601)

$

$

Not available

20

Husqvarna 539109334

LOWER CABLE END

$36.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539107592

CABLE, BRAKE

$103.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539107623

CABLE, RIGHT
(Superseded to 539110044)

$

$

Not available

23

Husqvarna 539107624

CABLE, LEFT
(Superseded to 539110045)

$303.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976988

COTTER, HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539102593

WASHER, 3/8 SPRING

$3.99

$

In Stock, only 4 left!

0

26

Husqvarna 539976937

HCS 5/16C X 2

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990717

NUT, 5/16C NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539107475

BOLT 5/16-18 X 3/4, THREAD FORMING

$6.49

$

In Stock, only 4 left!

0

$6.49

$

In Stock, only 2 left!

0

31

Husqvarna 539102828

BOLT 5/16C X 5/8, SHLD

$

$

Not available

32

$

$

Not available

33

Husqvarna 539108072

BRACKET, DAMPENER

$8.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539108120

NUT 1/4C, THIN NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

$0.99

$

In Stock, only 2 left!

0

36

Husqvarna 539108663

UPPER CABLE END

$28.99

$

Usually ships in 3-10 days

0

37

$9.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990188

WASHER, 5/16, SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0
