CZ 4818 (968999276) - Husqvarna 48" Zero-Turn Mower (2004-09) IZT Assembly (Integrated Zeroturn Transaxle) Parts Diagram

48" Zero-Turn Mower

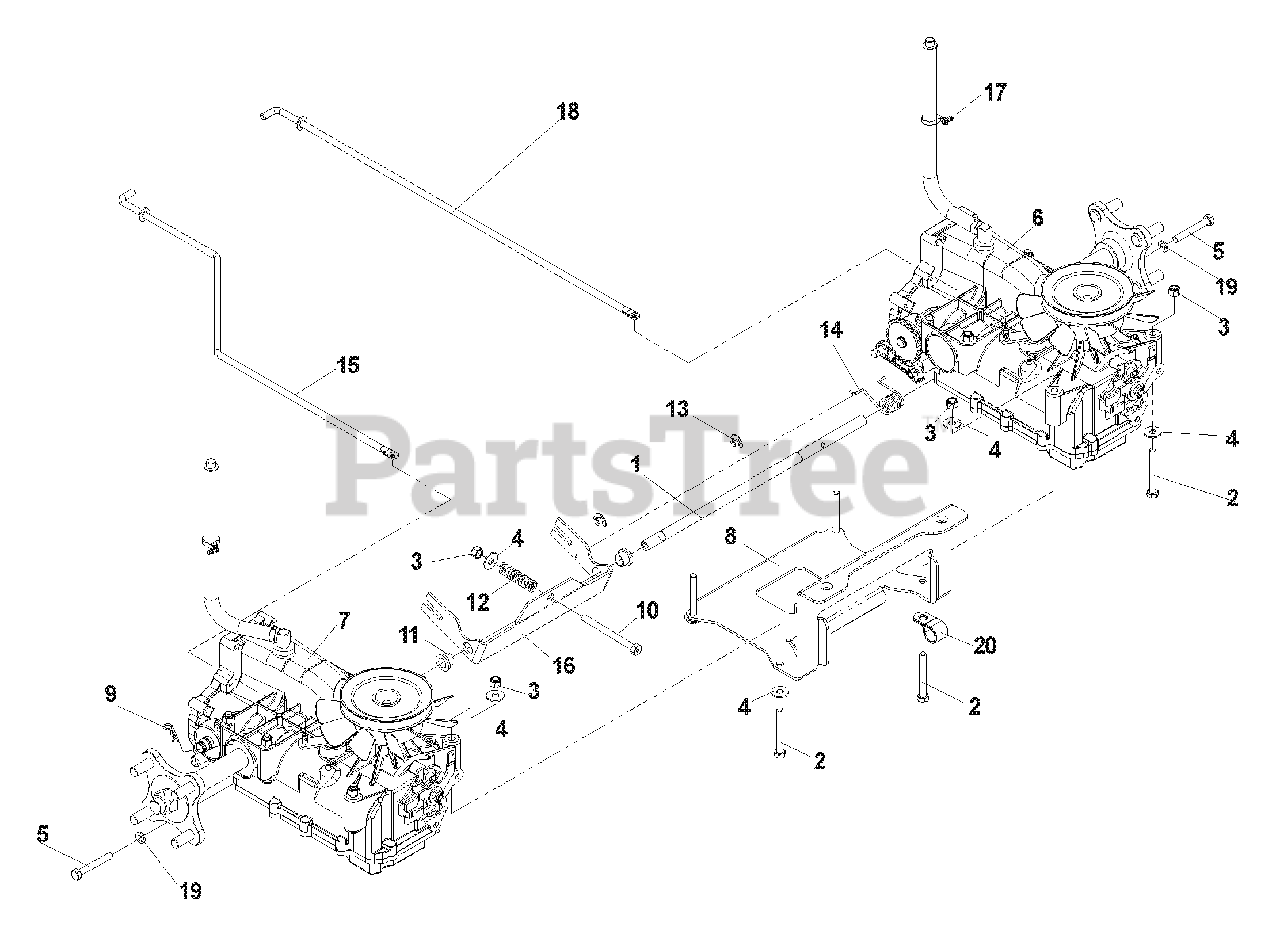

IZT Assembly (Integrated Zeroturn Transaxle) Parts Diagram

  • Title

1

Husqvarna 539107554

TIE ROD

$

$

Not available

2

Husqvarna 539991046

HCS 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

3

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 539990692

WASHER, 5/16, FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539108002

HCS 5/16C X 2 1/4, GR. 8

$6.99

$

In Stock, Qty 6

0

6

Husqvarna 539107605

IZT LEFT

$

$

Not available

7

Husqvarna 539107606

IZT RIGHT

$

$

Not available

8

Husqvarna 539107556

IZT SUPPORT

$

$

Not available

9

Husqvarna 539976988

HAIRPIN COTTER

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539107595

BOLT, BRAKE

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539100032

BUSHING, NYLON FLANGED

$

$

Not available

12

Husqvarna 539102796

SPRING

$

$

Not available

13

Husqvarna 539101949

E-RING, 1/2"

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539107708

SPRING-TORSION

$9.49

$

In Stock, Qty 5

0

15

Husqvarna 539107498

BYPASS LINKAGE, RIGHT

$

$

Not available

16

Husqvarna 539107488

BRAKE "U" ARM

$

$

Not available

17

Husqvarna 539107921

RETAINER

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539107931

BYPASS LINKAGE, LEFT

$

$

Not available

19

Husqvarna 539990187

LOCKWASHER 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

20

Husqvarna 539107891

CLIP

$2.99

$

In Stock, only 1 left!

0

Husqvarna 539107710

IZT PUMP BELT

Note: (NOT SHOWN)

$

$

Not available
