CZ 4817 KOA (968999220) - Husqvarna 48" Zero-Turn Mower (2003-05) ENGINE Parts Diagram

48" Zero-Turn Mower

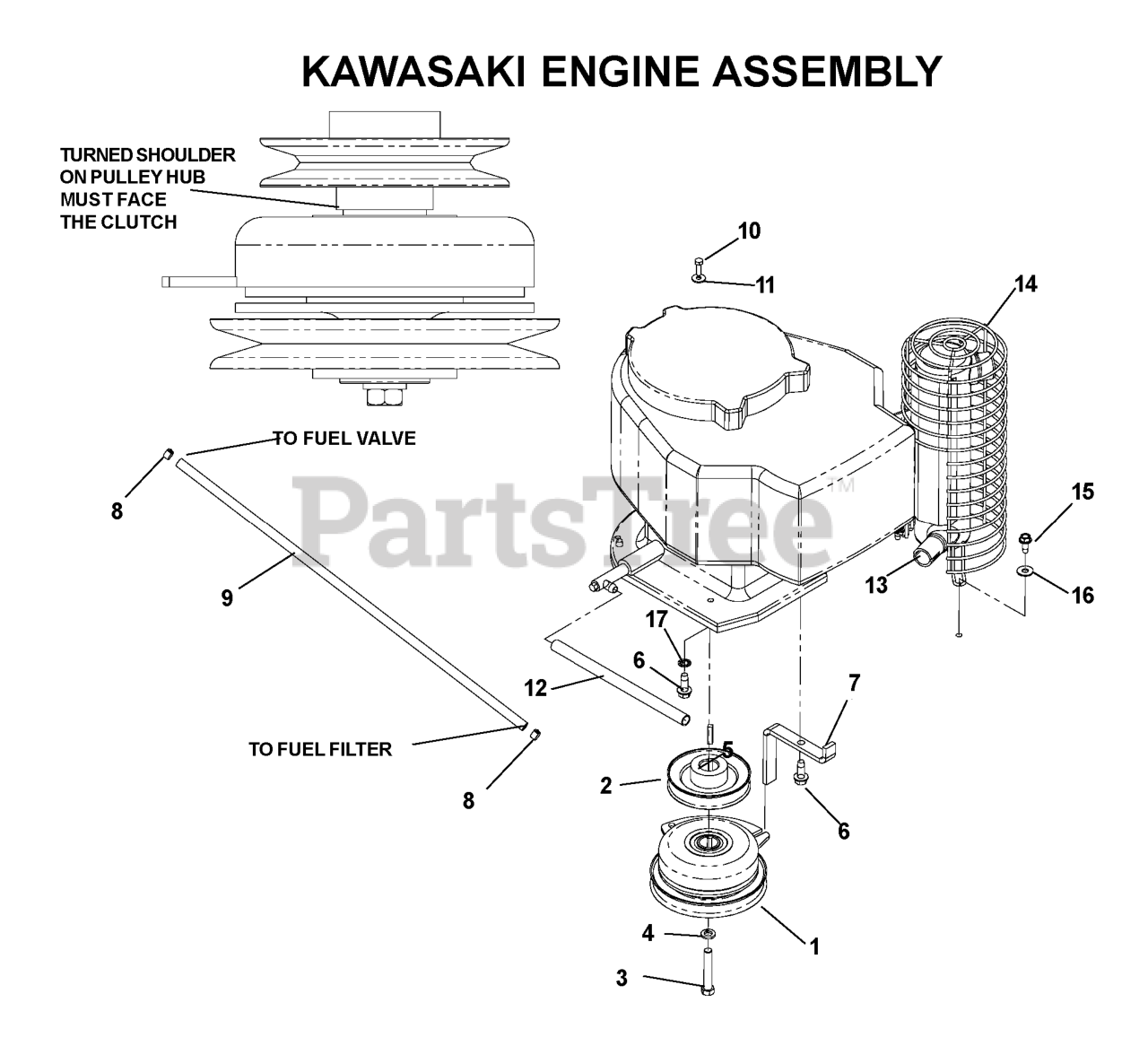

ENGINE Parts Diagram

  • Title

3

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

11

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

17

Husqvarna 539108266

WASHER
(Superseded to 539990390)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539107955

HEX HEAD SCREW M6 X 1 X 20

$

$

Not available

539105637

Husqvarna 539105637

CLUTCH HARNESS

$26.99

$

In Stock, Qty 6

0

2

Husqvarna 539107557

PULLEY

$

$

Not available

16

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539108120

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 539108171

MUFFLER GUARD

$

$

Not available

9

Husqvarna 539105527

FUEL LINE 24"
(Superseded to 539110424)

$7.99

$

In Stock, only 2 left!

0

6

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

8

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

1

Husqvarna 539105804

CLUTCH

$

$

Not available

12

Husqvarna 539107937

OIL DRAIN HOSE

$3.99

$

Usually ships in 3-10 days

0

539104415

Husqvarna 539104415

KAW PIGTAIL

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

4

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

15

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

13

Husqvarna 539107892

MUFFLER KAW

$169.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539107573

CLUTCH TIE DOWN

$

$

Not available
