CZ 4817 KOA (968999220) - Husqvarna 48" Zero-Turn Mower (2003-05) 48"/122CM CUTTING DECK Parts Diagram

48" Zero-Turn Mower

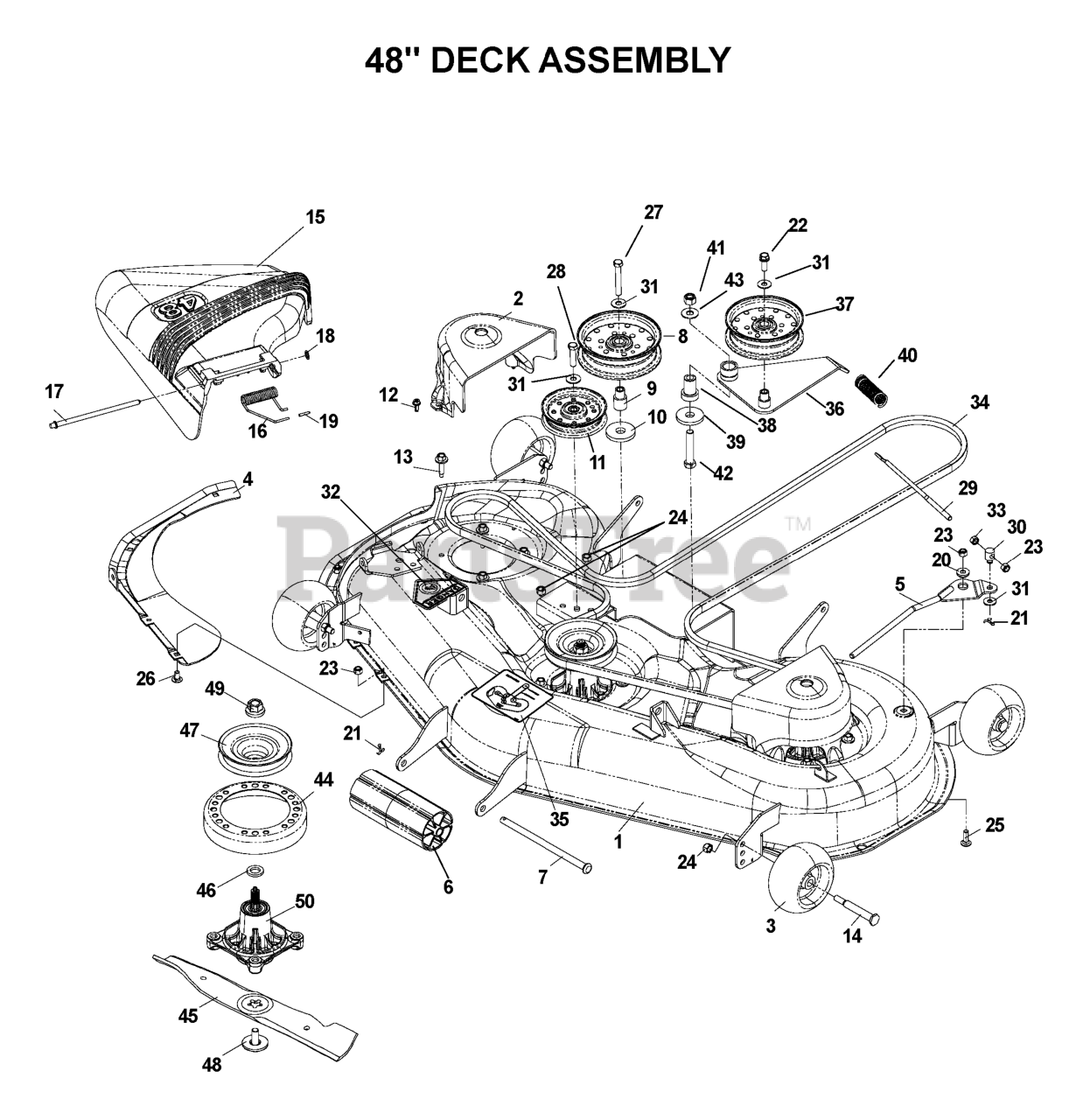

48"/122CM CUTTING DECK Parts Diagram

  • Title
1

Husqvarna 539109550

DECK W/DECALS 48" HUS

$

$

Not available

37

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 4 left!

0

2

Husqvarna 539108025

BELT SHIELD

$

$

Not available

29

Husqvarna 539107803

TENSION RELIEF LINKAGE

$

$

Not available

27

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

21

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

42

Husqvarna 539101572

SCREW, 1/2C X 3 HEX CAP

$5.99

$

In Stock, Qty 9

0

28

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

18

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

47

Husqvarna 539107521

DRIVEN PULLEY-48"
(Superseded to 532174375)

$39.99

$

In Stock, Qty 6

0

33

Husqvarna 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

44

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 539107960

DECAL, BELT ROUTING

$

$

Not available

16

Husqvarna 539107609

TORSION SPRING

$5.99

$

In Stock, Qty 20+

0

50

Husqvarna 539107515

CUTTER HOUSING
(Superseded to 587125201)

$56.99

$

In Stock, only 4 left!

0

43

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

7

Husqvarna 539107613

NOSE ROLLER ROD
(Superseded to 594092501)

$6.99

$

In Stock, Qty 19

0

14

Husqvarna 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 539107604

DISCHARGE CHUTE
(Superseded to 532180655)

$45.99

$

In Stock, only 4 left!

0

25

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539108668

TENSION RELIEF LEVER BLK

$

$

Not available

3

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

32

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

39

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

23

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539107620

FLAT IDLER PULLEY
(Superseded to 532175820)

$

$

Not available

$

$

Not available

6

Husqvarna 539107612

NOSE ROLLER-48"
(Superseded to 532176066)

$13.99

$

In Stock, Qty 13

0

41

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 539107709

BELT, DECK

$109.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539107519

BLADE-HIGH LIFT/48"
(Superseded to 532180054)

$22.99

$

In Stock, Qty 20+

0

13

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

4

Husqvarna 539107614

VORTEX MOWER BAFFLE
(Superseded to 532174378)

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 4 left!

0

19

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 539107540

DECK IDLER ARM WELDMENT
(Superseded to 539109780)

$

$

Not available

20

Husqvarna 539107617

PIVOT BUSHING
(Superseded to 532174606)

$4.99

$

In Stock, only 2 left!

0

$17.99

$

In Stock, Qty 10

0
