CZ 4217 (968999246) - Husqvarna 42" Zero-Turn Mower (2006-08) Main Frame Parts Diagram

42" Zero-Turn Mower

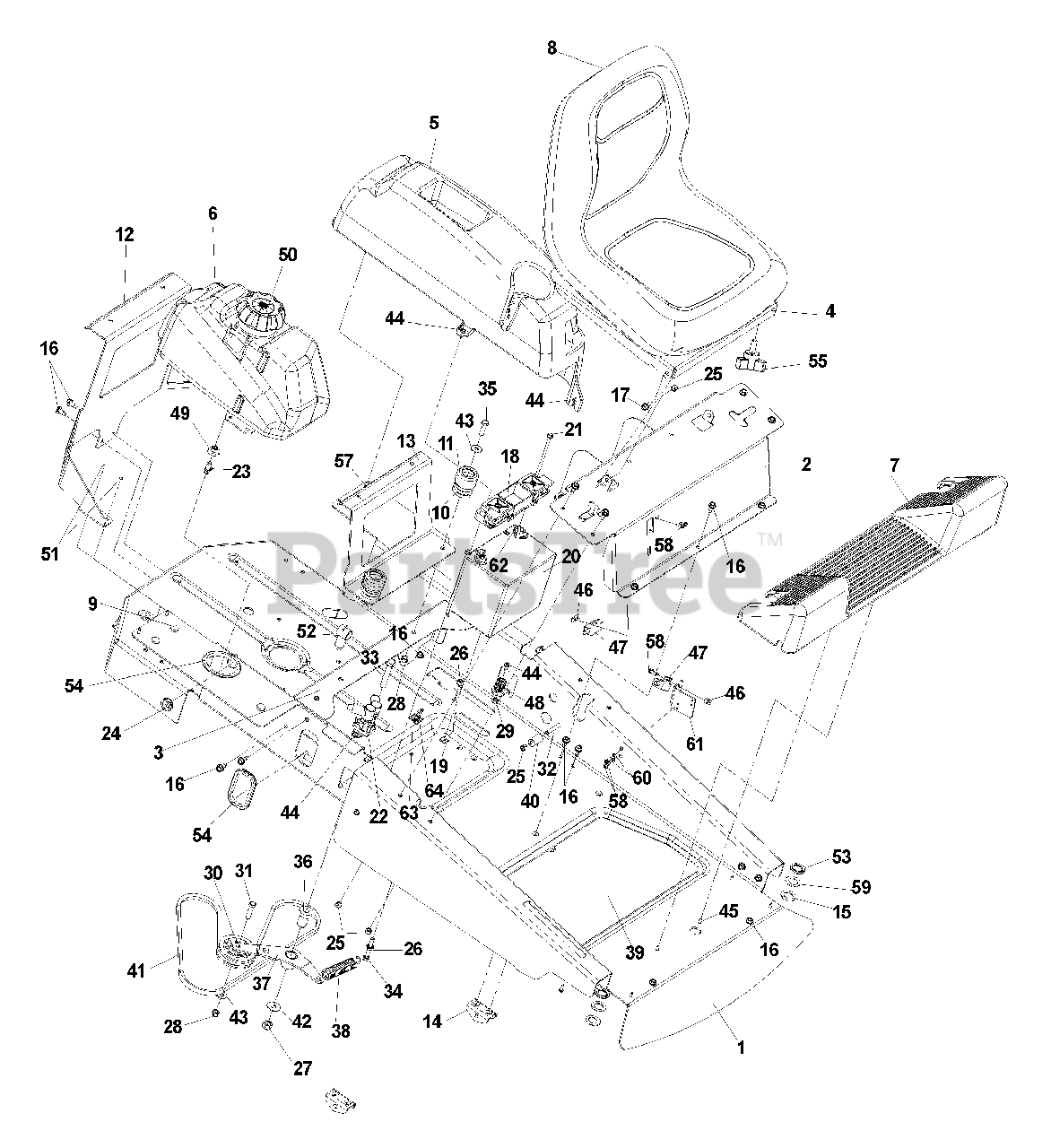

Main Frame Parts Diagram

  • Title

1

Husqvarna 539110008

FRAME, CHASSIS

$

$

Not available

2

Husqvarna 539110131

CONSOLE
(Superseded to 539110378)

$472.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539110126

REAR SEAT SUPPORT

$37.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539110134

SEAT PLATE
(Superseded to 539112694)

$

$

Not available

5

Husqvarna 539110251

FENDER, LEFT
(Superseded to 539130374)

$93.99

$

In Stock, only 2 left!

0

6

Husqvarna 539110252

TANK, FUEL

$

$

Not available

7

Husqvarna 539110284

FOOT REST

$74.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539110302

SEAT
(Superseded to 539112700)

$319.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539102587

RUBBER STOP

$5.99

$

In Stock, Qty 15

0

10

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

11

Husqvarna 539110301

CAP, SPRING COVER
(Superseded to 532124238)

$

$

Not available

12

Husqvarna 539109930

REAR BRACKET W/ DECALS, TOOLBOX

$

$

Not available

13

Husqvarna 539110052

FRONT BRACKET, TOOLBOX
(Superseded to 539112139)

$54.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110030

BRACKET, DECK HANGER

$9.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539923787

MACHINE BUSHING, 7/8

$3.99

$

In Stock, only 1 left!

0

16

Husqvarna 539107475

BOLT, 5/16-18 X 3/4, THREAD FORMING

$6.49

$

In Stock, only 4 left!

0

17

Husqvarna 539110303

BOLT, 5/16, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

19

Husqvarna 539107629

PUSH NUT, NYLON

$4.99

$

In Stock, Qty 7

0

20

Husqvarna 539109952

BATTERY 12V
(Superseded to 579411601)

$

$

Not available

21

Husqvarna 539107632

BOLT, 1/4 X 7 1/2

$

$

Not available

22

Husqvarna 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539110432

ELBOW, TANK
(Superseded to 532139277)

$8.99

$

In Stock, Qty 5

0

24

Husqvarna 539110433

GROMMET, FUEL LINE

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990717

NUT, 5/16, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539990585

NUT, 5/16C

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 539990546

NUT, 3/8C, CENTER LOCK

$

$

Not available

29

Husqvarna 539976978

NUT, 1/4C, NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

30

Husqvarna 539110311

IDLER PULLEY, HYDRO'S

$17.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990655

HCS, 3/8-16 X 1 1/2,

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 539976937

HCS, 5/16-18 X 2,

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539101332

HCS, 1/2-13 X 2 3/4,

$5.99

$

In Stock, only 3 left!

0

34

Husqvarna 539976938

HCS, 5/16-18 X 2 1/4,

$4.99

$

In Stock, only 2 left!

0

35

Husqvarna 539976941

HCS, 3/8-16 X 1 1/4,

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539110219

IDLER ARM, PUMP

$103.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539101977

TRACTION SPRING

$17.99

$

In Stock, Qty 10

0

39

Husqvarna 539110310

NON-SLIP MATTING

$21.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539110312

MOTION LIMITER

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539110411

BELT, HYDRO

$31.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990550

WASHER, 1/2

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990362

SCREW, 1/4C X 5/8, SELF TAPPING

$4.99

$

In Stock, Qty 12

0

45

Husqvarna 539110674

SCREW, 10-24 X 5/8, WASHER HEAD

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539102678

PLATE, SWITCH, THREAD FORM

$15.99

$

In Stock, Qty 9

0

47

Husqvarna 539101080

SWITCH N C

$17.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539110070

SPRING, NEUTRAL RETURN

$

$

Not available

49

Husqvarna 539105245

GROMMET, RUBBER

$4.99

$

In Stock, Qty 5

0

50

Husqvarna 539106188

FUEL CAP
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

51

Husqvarna 539990369

SCREW, 5/16 X 1, TAPTITE

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

53

Husqvarna 539101151

RETAINING RING

$

$

Not available

54

Husqvarna 539107116

GROMMET

$14.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 539110309

WIRING HARNESS

Note: (NOT SHOWN)

$

$

Not available

55

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

Note: (NOT SHOWN)

$9.49

$

Usually ships in 3-10 days

0

55

Husqvarna 539107616

BATTERY CABLE, POSITIVE

Note: (NOT SHOWN)

$

$

Not available

56

Husqvarna 539110675

SPRING BRACKET

Note: (NOT SHOWN)

$

$

Not available

57

Husqvarna 539110674

SCREW, 10-12 X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539976952

SCREW, 10-24 X 5/8 SPEC
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

59

Husqvarna 539110294

WAVE WASHER

$7.99

$

In Stock, only 3 left!

0

60

Husqvarna 539107360

LOCKWASHER, #10
(Superseded to 539109552)

$4.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539110860

BRACKET

$5.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539976934

HCS, 5/16-18 X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

63

Husqvarna 539976856

WIRE TIE

$5.99

$

Usually ships in 3-10 days

0

64

Husqvarna 539110863

MOUNTING BLOCK, CABLE TIE

$3.99

$

Usually ships in 3-10 days

0
