CZ 4217 (968999246) - Husqvarna 42" Zero-Turn Mower (2006-08) Deck Assembly 42" Parts Diagram

42" Zero-Turn Mower

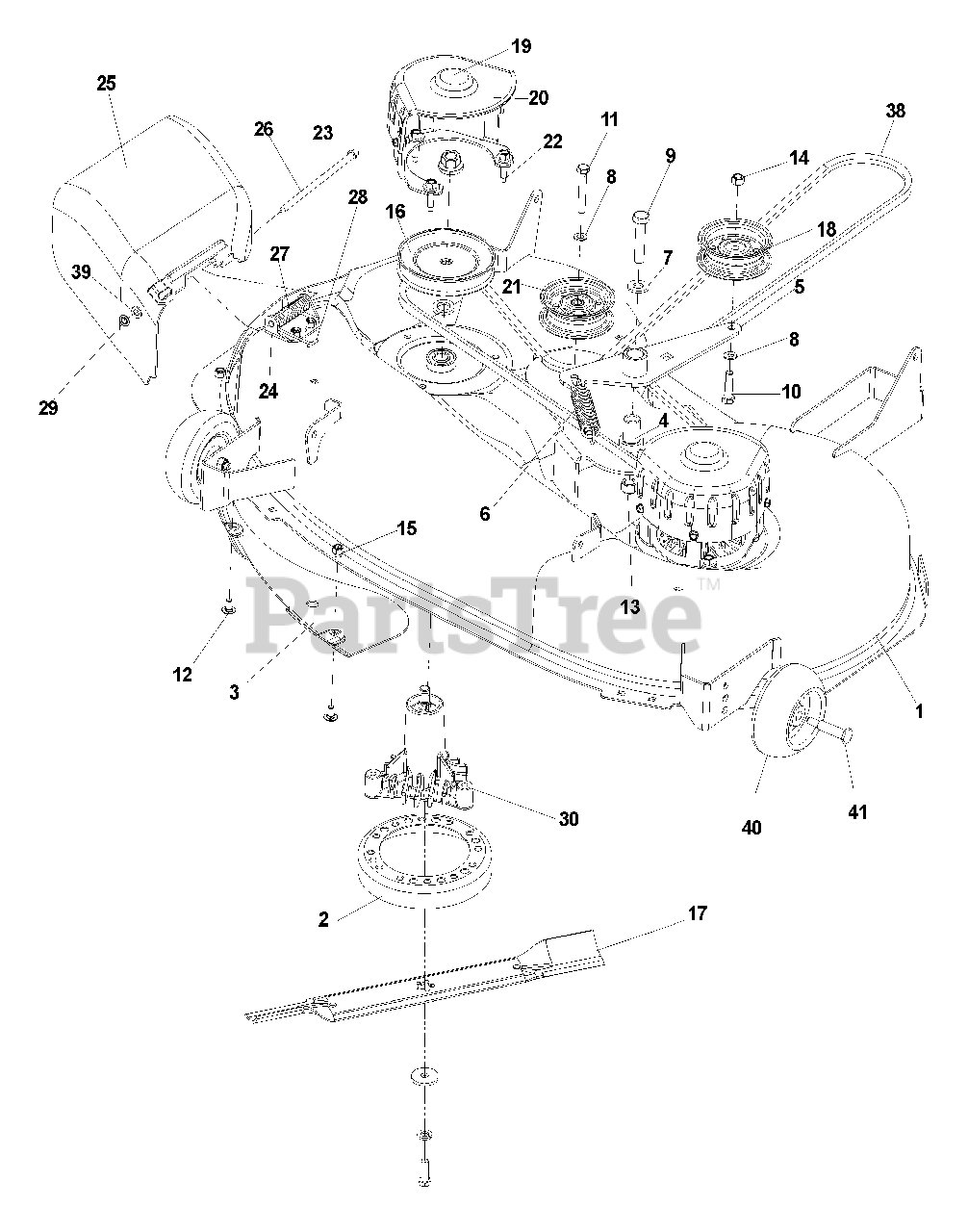

Deck Assembly 42" Parts Diagram

  • Title

1

Husqvarna 539110528

DECK W/DECAL, 42"

$3399.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539107518

STRIPPER, ROUND
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539110463

BAFFLE, VORTEX 42"
(Superseded to 532159770)

$

$

Not available

4

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539110217

DECK IDLER ARM

$

$

Not available

6

Husqvarna 539101977

TRACTION SPRING

$17.99

$

In Stock, Qty 10

0

7

Husqvarna 539990250

WASHER, 1/2 SAE

$1.99

$

In Stock, only 2 left!

0

8

Husqvarna 539990122

WASHER, 3/8 SAE
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539101332

HCS, 1/2-13 X 2 3/4, GR5

$5.99

$

In Stock, only 3 left!

0

10

Husqvarna 539990655

HCS, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 539990637

HCS, 3/8-16 X 2 1/2, GR5

$1.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990799

RHSNB, 5/16-18 X 5/8, GR5
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539110318

PULLEY, MANDREL #707

$12.99

$

In Stock, only 2 left!

0

17

Husqvarna 539110460

BLADE, 42"
(Superseded to 532134149)

$

$

Not available

18

Husqvarna 539110316

PULLEY, DECK IDLER

$

$

Not available

19

Husqvarna 539110075

SPINDLE COVER

$

$

Not available

20

Husqvarna 539110076

SPINDLE COVER ANCHOR

$

$

Not available

21

Husqvarna 539110317

PULLEY , IDLER

$

$

Not available

22

Husqvarna 539107630

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

23

Husqvarna 539990362

SCREW, 1/4C X 5/8, SELF TAPPING

$4.99

$

In Stock, Qty 12

0

24

Husqvarna 539110472

BRACKET, DEFLECTOR, MOWER 42"
(Superseded to 532177563)

$

$

Not available

25

Husqvarna 539110461

SHIELD, 42"
(Superseded to 532171859)

$39.99

$

In Stock, Qty 9

0

26

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

27

Husqvarna 539110328

SPRING, TORSION, DEFLECTOR
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

28

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539107626

PUSHNUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539110158

HOUSING, MANDREL, ASSY
(Superseded to 532130794)

$56.99

$

In Stock, only 4 left!

0

38

Husqvarna 539110410

BELT, 42" DECK

$78.99

$

In Stock, only 2 left!

0

39

Husqvarna 539110331

WASHER, 11/32 X 5/8 X 16GA
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

40

Husqvarna 539110289

WHEEL, GAUGE

$8.99

$

In Stock, only 2 left!

0

41

Husqvarna 539110222

BOLT, SHOULDER
(Superseded to 532004898)

$

$

Not available
