CZ 3815 (968999245) - Husqvarna 38" Zero-Turn Mower (2006-08) Deck Assembly 38" Parts Diagram

38" Zero-Turn Mower

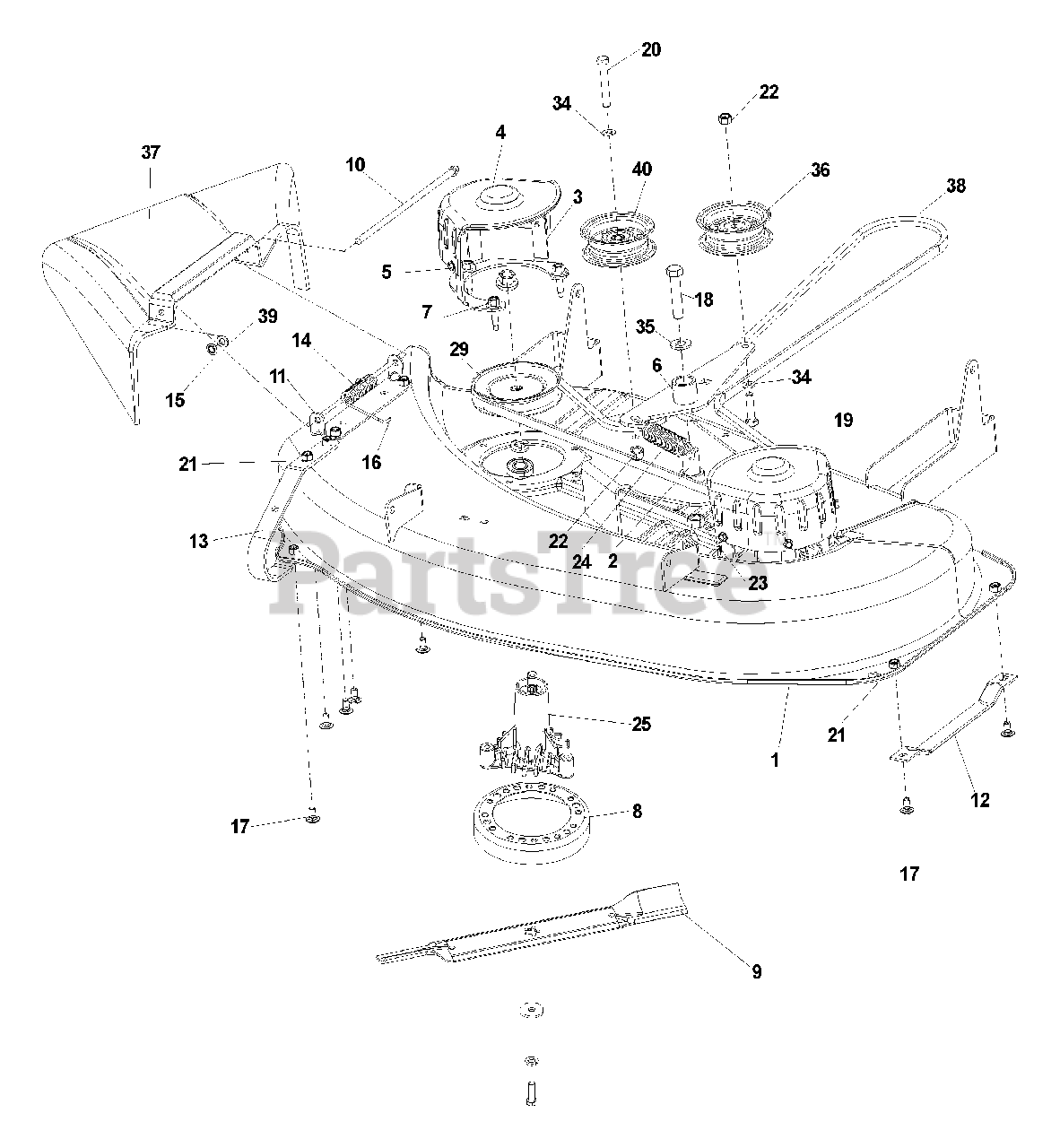

Deck Assembly 38" Parts Diagram

  • Title

1

Husqvarna 539110527

DECK W/DECAL, 38"

$

$

Not available

2

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539110076

SPINDLE COVER ANCHOR

$

$

Not available

4

Husqvarna 539110075

SPINDLE COVER

$

$

Not available

5

Husqvarna 539990362

SCREW, 1/4C X 5/8, SELF TAPPING

$4.99

$

In Stock, Qty 12

0

6

Husqvarna 539110217

DECK IDLER ARM

$

$

Not available

7

Husqvarna 539107630

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

8

Husqvarna 539107518

STRIPPER, ROUND, UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 539110324

BLADE, 38", MULCHING
(Superseded to 532134148)

$26.99

$

In Stock, only 2 left!

0

10

Husqvarna 539110327

ROD, HINGE
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

11

Husqvarna 539110473

BRACKET, MOWER DEFLECTOR
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

12

Husqvarna 539110313

RUNNER, LEFT
(Superseded to 532125074)

$18.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539110314

RUNNER, RIGHT
(Superseded to 532128772)

$

$

Not available

14

Husqvarna 539110328

SPRING, TORSION, DEFLECTOR
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 539107626

PUSHNUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990799

RHSNB 5/16-18 X 5/8, GR5
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539101332

HCS 1/2-13 X 2 3/4, GR5

$5.99

$

In Stock, only 3 left!

0

19

Husqvarna 539990655

HCS 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 539990637

HCS 3/8-16 X 2 1/2, GR5

$1.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539101977

TRACTION SPRING

$17.99

$

In Stock, Qty 10

0

25

Husqvarna 539110158

HOUSING, MANDREL, ASSY
(Superseded to 532130794)

$56.99

$

In Stock, only 4 left!

0

29

Husqvarna 539110315

PULLEY, MANDREL
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990122

WASHER, 3/8, SAE
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990250

WASHER, 1/2, SAE

$1.99

$

In Stock, only 2 left!

0

36

Husqvarna 539110316

PULLEY, DECK IDLER

$

$

Not available

37

Husqvarna 539110326

SHIELD DEFLECTOR
(Superseded to 532175943)

$

$

Not available

38

Husqvarna 539110413

BELT, 38" DECK

$

$

Not available

39

Husqvarna 539110331

WASHER, 11/32 X 5/8 X 16GA
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

40

Husqvarna 539110080

PULLEY, IDLER

$

$

Not available

Husqvarna 539110081

BEARING INSERT

Note: (NOT SHOWN)

$

$

Not available
