CYT 5023 SE (13AQA1KQ897) - Columbia 50" Yard Tractor (2015) Mower Deck 50-inch Parts Diagram

50" Yard Tractor

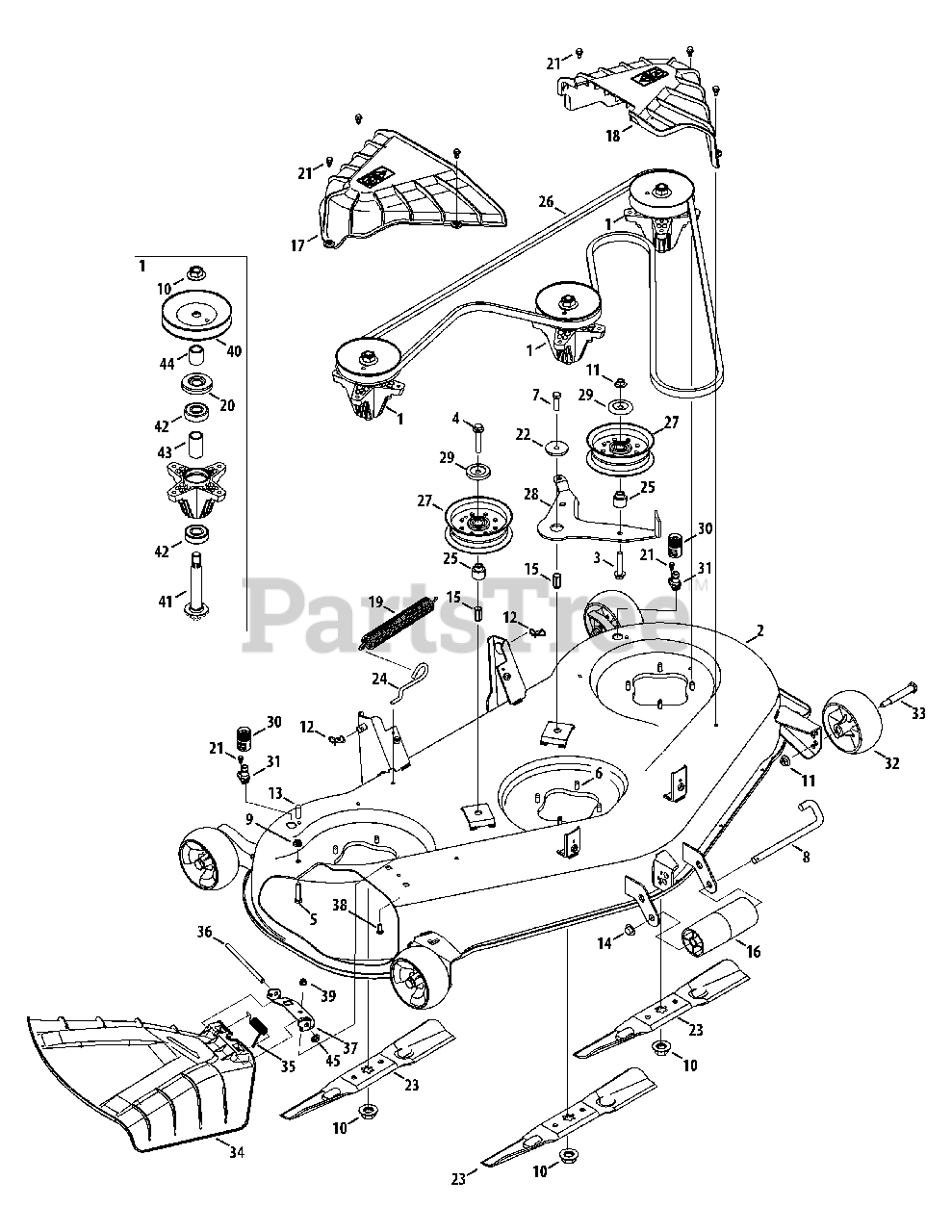

Mower Deck 50-inch Parts Diagram

  • Title

1

MTD 918-06981

Spindle Ass’y, Pulley, 5.37 Dia

$147.99

$

In Stock, only 1 left!

0

2

MTD 983-05103-0606

Deck, 50"
(Superseded to 983-05103D-0606)

$938.99

$

Usually ships in 3-6 days

0

3

MTD 710-06178

Hex Cap Screw, 3/8-16 x 2.00

$6.49

$

In Stock, Qty 20+

0

4

MTD 710-06215

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, only 1 left!

0

5

MTD 710-0805A

Hex Cap Screw, 5/16-18 x 1.50

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1260A

Screw, Self-tapping, 5/16-18, 0.750,

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

8

MTD 711-06377

Roller Pin, 1/2 x 7.31 Lg

$20.99

$

In Stock, only 1 left!

0

9

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

11

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 17

0

12

MTD 714-05005

Bow-Tie Cotter Pin

$4.99

$

Usually ships in 3-6 days

0

13

MTD 720-05075

Vinyl Cap, .29 x 1.00

$4.49

$

In Stock, only 2 left!

0

14

MTD 726-0299

Push Cap, 1/2"

$8.49

$

In Stock, Qty 20+

0

15

MTD 728-05016

Rivet Nut, 3/8-16

$5.99

$

In Stock, Qty 10

0

16

MTD 731-05679B

Front Roller

$18.99

$

In Stock, Qty 20+

0

17

MTD 731-09968

Belt Cover, RH
(Superseded to 731-09968B)

$28.99

$

In Stock, Qty 20+

0

18

MTD 731-09969A

Belt Cover, LH
(Superseded to 731-09969C)

$28.99

$

In Stock, Qty 20+

0

19

MTD 732-04927

Spring, Extension, 1.25 OD x 8.5

$22.99

$

In Stock, Qty 20+

0

20

MTD 783-08435

Bearing Shield

$7.49

$

Usually ships in 3-6 days

0

21

MTD 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

22

MTD 738-05082

Shoulder Spacer, .970 x .190

$8.49

$

In Stock, only 2 left!

0

23

MTD 942-05052A

Blade, Cut, 17.27" 2-In-1

$28.99

$

In Stock, Qty 20+

0

24

MTD 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

25

MTD 748-05037A

Shoulder Spacer
(Superseded to 748-05037B)

$5.49

$

In Stock, Qty 20+

0

26

MTD 954-04077A

Belt, V-Type, B Sec x 134

$82.99

$

In Stock, Qty 12

0

27

MTD 756-05034

Pulley, Idler, 4.50" Dia.
(Superseded to 756-05034A)

$45.99

$

In Stock, Qty 20+

0

28

MTD 783-08309A

Pivot Idler bracket
(Superseded to 783E08309B)

Variations

MTD 783-08309A-0637

Idler Pivot Bracket - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

29

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

30

MTD 921-04041

Coupler, Water

$23.99

$

In Stock, Qty 20+

0

31

MTD 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

32

MTD 734-04155

Wheel, Deck, 5.0 Dia. Ball

$20.99

$

In Stock, Qty 20+

0

33

MTD 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

34

MTD 631-05116B

Chute Deflector Assembly

$54.99

$

In Stock, Qty 20+

0

35

MTD 732-05261

Spring, Torsion, .440 ID x 1.75

$5.99

$

In Stock, Qty 20+

0

36

MTD 747-06290B

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

37

MTD 783-08504A

Bracket, Chute, 42"
(Superseded to 783-08504B)

Variations

MTD 783-08504A-0637

Deflector Chute Mounting Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 7

0

$14.99

$

In Stock, Qty 7

0

38

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

39

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

40

MTD 756-05036

Pulley, Deck, 5.00 Dia.

$23.99

$

In Stock, Qty 12

0

41

MTD 938-04241

Shaft, Spindle, 5.50

$34.99

$

In Stock, only 1 left!

0

42

MTD 941-0919B

Bearing, Ball, .787id x 1.85 Od x .551

$21.99

$

In Stock, Qty 20+

0

43

MTD 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

44

MTD 750-06153

Spacer, .792 x 1.060 x 1.191
(Superseded to 750-06414)

$12.99

$

Usually ships in 3-6 days

0

45

MTD 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 2 left!

0
