CYT 4622 SE (13AZA1KT897) - Columbia 46" Yard Tractor, EFI (2018) Hood Parts Diagram

46" Yard Tractor, EFI

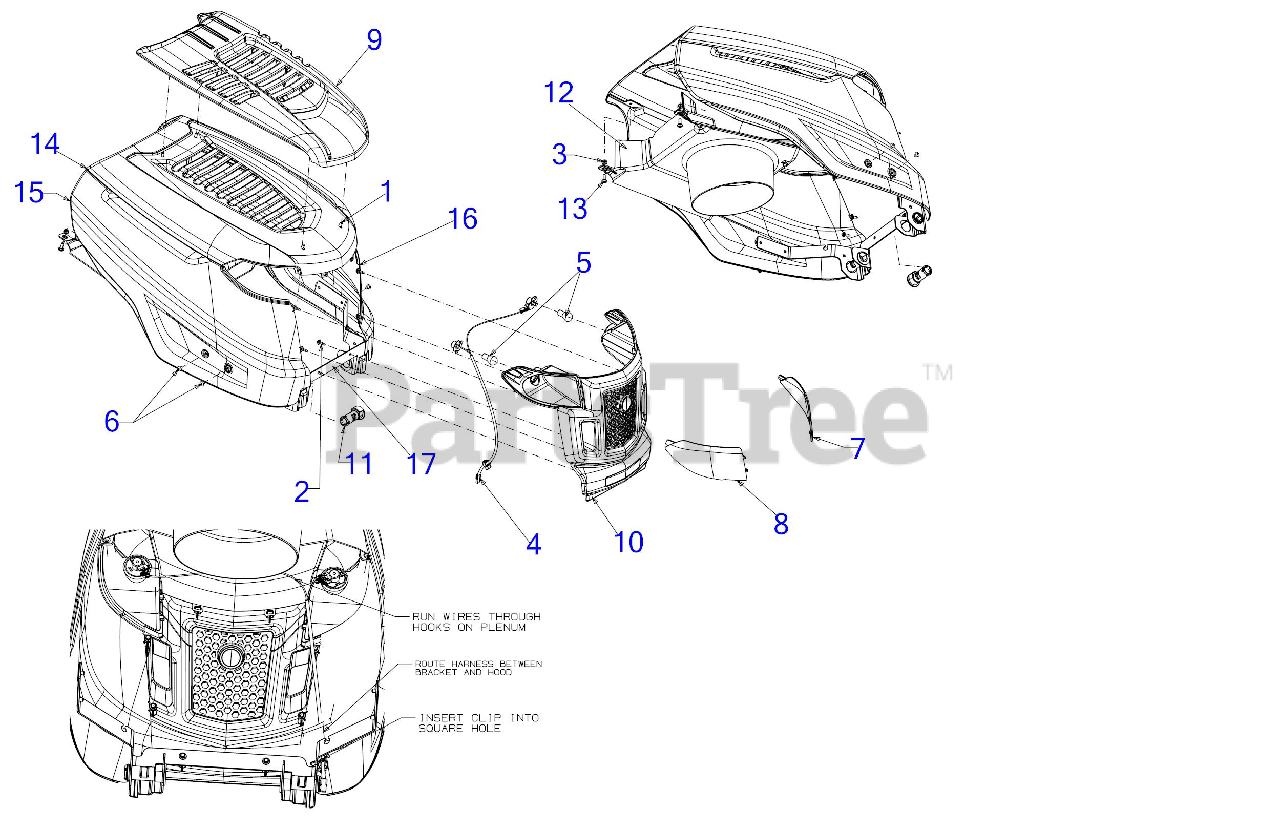

Hood Parts Diagram

  • Title

1

MTD 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 20+

0

2

MTD 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

4

MTD 925-06463

HEADLIGHT HARNESS

$26.99

$

In Stock, only 1 left!

0

5

MTD 925-0963

MINIATUURE BULB 12V

$7.49

$

In Stock, only 3 left!

0

6

MTD 728-04063

POP RIVET 6.4MM x 10MM

$3.99

$

Usually ships in 3-6 days

0

7

MTD 731-06095

LENS (LH)

$12.99

$

In Stock, only 1 left!

0

8

MTD 731-06096

LENS (RH)

$12.99

$

In Stock, only 2 left!

0

9

MTD 731-06194B

HOOD SCOOP

$56.99

$

Usually ships in 3-6 days

0

10

MTD 931-06796A

GRILLE (K STYLE)

$72.99

$

Usually ships in 3-6 days

0

11

MTD 731-10070A

HOOD PIVOT PIN

$5.99

$

In Stock, Qty 20+

0

12

MTD 931-13555

PLENUM

$48.99

$

Usually ships in 3-6 days

0

13

MTD 738-05040

SCREW 1/4-20 x .75 TORX

$5.49

$

In Stock, only 1 left!

0

14

MTD 783-07231

HOOD

Variations

MTD 783-07231-0606

HOOD-K STYLE TB - MAJESTIC ORANGE (0606)

$105.99

$

Usually ships in 3-6 days

0

MTD 783-07231-0638

HOOD-K STYLE TB - MTD/TROY-BILT RED (0638)

$105.99

$

Usually ships in 3-6 days

0

$91.99

$

Usually ships in 3-6 days

0

15

MTD 783-09762

SIDE PANEL (RH)

Variations

MTD 783-09762-0606

PANEL-RH SIDE - MAJESTIC ORANGE (0606)

$48.99

$

Usually ships in 3-6 days

0

MTD 783-09762-0638

PANEL-RH SIDE - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

16

MTD 783-09763

SIDE PANEL (LH)

Variations

MTD 783-09763-0606

PANEL-LH SIDE - MAJESTIC ORANGE (0606)

$48.99

$

Usually ships in 3-6 days

0

MTD 783-09763-0638

PANEL-LH SIDE - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

17

MTD 783-09764

PIVOT BRACKET

Variations

MTD 783-09764-0637

BRKT-HOOD PIVOT - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0
