CYT 4220 (13B8A1KS897) - Columbia 42" Yard Tractor (2018) Dash Parts Diagram

42" Yard Tractor

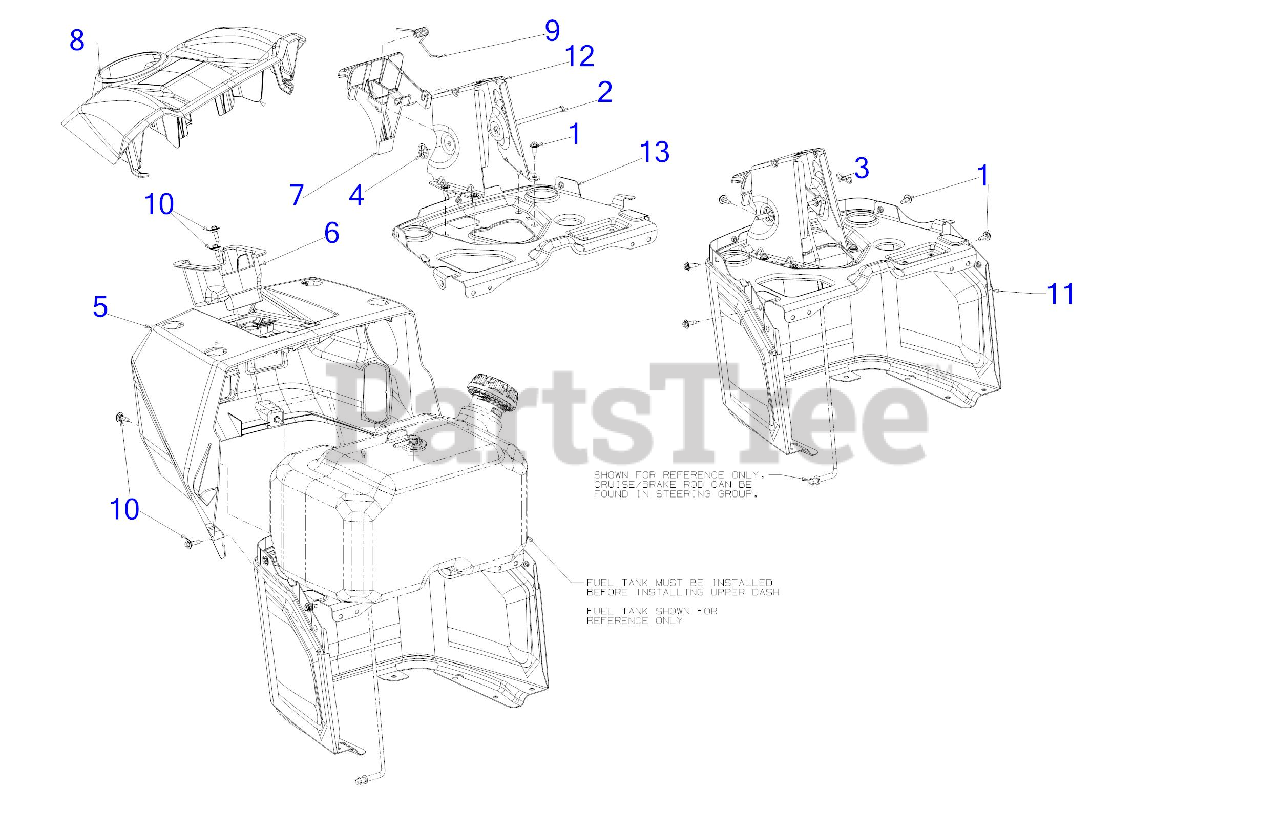

Dash Parts Diagram

  • Title

1

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 8

0

2

MTD 711-06378

HINGE PIN .25 x 4.50

$3.99

$

Usually ships in 3-6 days

0

3

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

4

MTD 926-04012

PUSH ON NUT
(Superseded to 726-04012)

$

$

Not available

5

MTD 931-09815B

UPPER DASH

$63.99

$

Usually ships in 3-6 days

0

6

MTD 731-10618

STEERING SHAFT BEARING

$14.99

$

Usually ships in 3-6 days

0

7

MTD 731-10636C

CRUISE/BRAKE DASH LEVER

$12.99

$

Usually ships in 3-6 days

0

8

MTD 931-11141A

UPPER DASH CAP

$

$

Not available

9

MTD 732-05199

TORSION SPRING .330 ID

$3.49

$

Usually ships in 3-6 days

0

10

MTD 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0

11

MTD 783-08391A

LOWER DASH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-08391A-0637

Lower Dash - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 783-08391A-0606

DASH-LOWER - MAJESTIC ORANGE (0606)

$52.99

$

Usually ships in 3-6 days

0

MTD 783-08391A-0691

DASH-LOWER - BLACK JACK (0691)

$48.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

12

MTD 783-08538A

STEERING MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-08538A-0637

Steering Bearing Mounting Bracket - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

13

MTD 783-09546A

DASH PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-09546A-0637

PLT-DASH/FUEL TNK - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0
