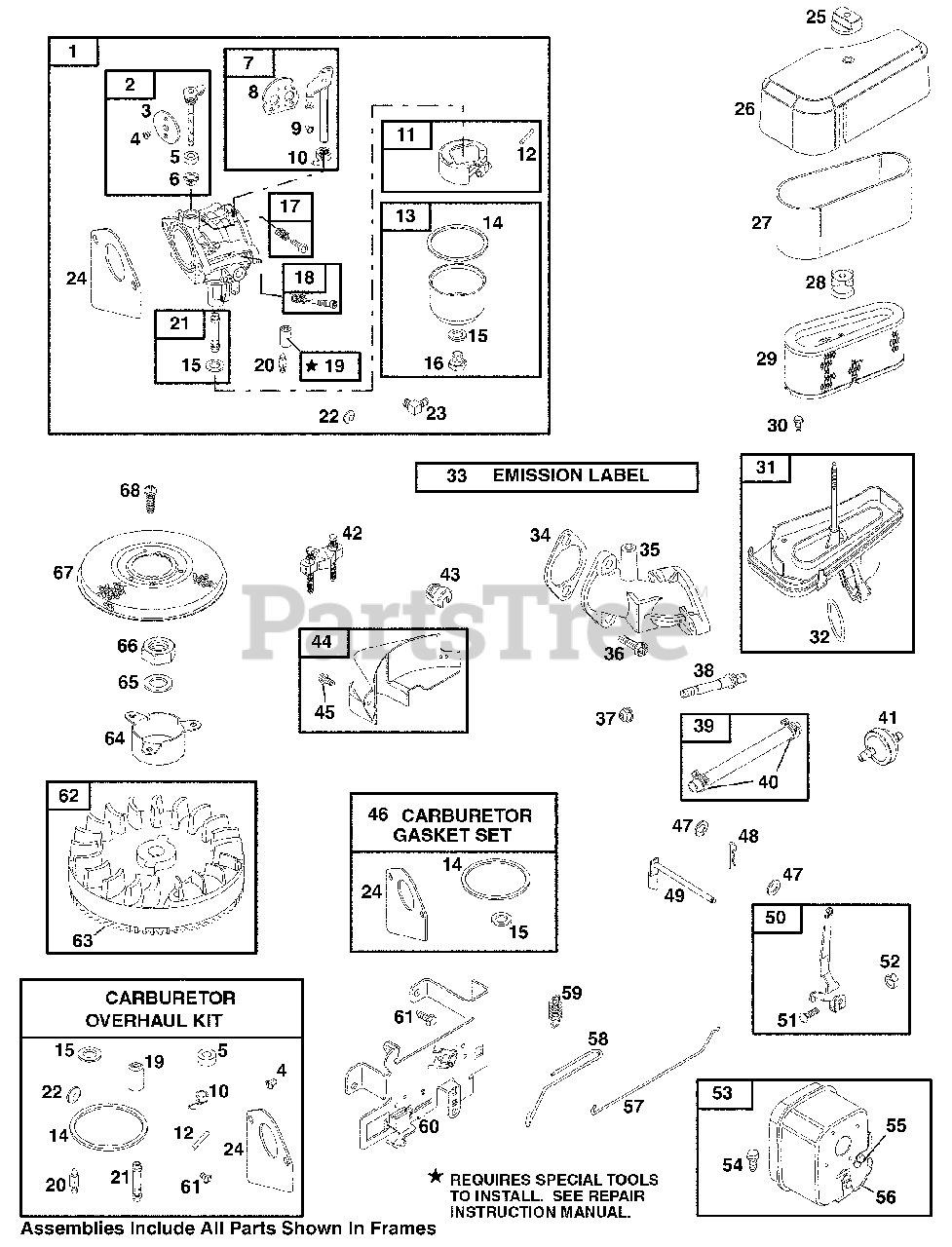

CYB (13A-325-101) - Cub Cadet Rear-Engine Riding Mower Engine (1999) Air Filter, Carburetor & Engine External Parts Diagram

Rear-Engine Riding Mower Engine

Air Filter, Carburetor & Engine External Parts Diagram

  • Title

1

Cub Cadet BS-692684

Carburetor

$235.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-494885

Throttle Shaft Kit

$

$

Not available

3

Cub Cadet BS-690468

Throttle Valve

$9.49

$

In Stock, only 1 left!

0

4

Cub Cadet BS-94098

Screw
(Superseded to BS-691636)

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet BS-691326

Seal-Throttle Shaft

$5.49

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-281346

Bushing-Throttle Shaft

$

$

Not available

7

Cub Cadet BS-495931

Choke Shaft Kit
(Superseded to BS-790902)

$33.99

$

In Stock, only 1 left!

0

8

Cub Cadet BS-692344

Valve-Choke

$8.49

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-94098

Screw
(Superseded to BS-691636)

Note: (Choke Valve)

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet BS-690802

Spring & Seal Assembly

$9.49

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

12

Cub Cadet BS-690525

Pin-Float Hinge

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-495933

Bowl-Float

$

$

Not available

14

Cub Cadet BS-281165

Gasket-Float Bowl
(Superseded to BS-281165S)

$4.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-281164

Sealing Washer
(Superseded to BS-692255)

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet BS-94642

Screw
(Superseded to BS-691657)

Note: (Float Bowl)

$7.99

$

In Stock, only 1 left!

0

17

Cub Cadet BS-495800

Kit-Idle Speed

$10.99

$

In Stock, only 1 left!

0

18

Cub Cadet BS-498836

Kit-Idle Mixture

$18.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-231854

Inlet Seat
(Superseded to BS-690577)

$7.99

$

In Stock, only 3 left!

0

20

Cub Cadet BS-231855

Float Needle Valve
(Superseded to BS-231855S)

$6.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-692687

Nozzle-Carburetor

$

$

Currently unavailable

22

Plug-Welch

Note: (Sold in Kit Only)

$

$

Not available

23

Cub Cadet BS-493496

Connector-Hose
(Superseded to BS-692317)

$6.49

$

In Stock, Qty 20+

0

24

Cub Cadet BS-272465

Intake Gasket
(Superseded to BS-692284)

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet BS-493903

Knob-Air Cleaner
(Superseded to BS-691668)

$5.49

$

In Stock, only 1 left!

0

26

Cub Cadet BS-691324

Cover-Air Cleaner

$55.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-272477

Filter-Pre Cleaner
(Superseded to BS-272477S)

$4.49

$

In Stock, Qty 11

0

28

Cub Cadet BS-281051

Seal-Air Cleaner Stud
(Superseded to BS-691668)

$5.49

$

In Stock, only 1 left!

0

29

Cub Cadet BS-493910

Filter-A/C Cartridge
(Superseded to BS-691667)

$26.99

$

In Stock, only 1 left!

0

30

Cub Cadet BS-692125

Screw

Note: (Air Cleaner Base Mounting)

$4.99

$

In Stock, only 4 left!

0

31

Cub Cadet BS-693670

Base-Air Cleaner

$

$

Not available

32

Cub Cadet BS-281106

O-Ring Seal
(Superseded to BS-691917)

Note: (Air Cleaner Base)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet BS-499356

Label-Emissions

$3.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-272554

Intake Gasket
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 5

0

35

Cub Cadet BS-213819

Intake Manifold
(Superseded to BS-691711)

$

$

Not available

36

Cub Cadet BS-94913

Screw
(Superseded to BS-690953)

Note: (Intake Manifold)

$5.99

$

Usually ships in 2-12 days

0

37

Cub Cadet BS-94010

Nut
(Superseded to BS-690958)

Note: (Carburetor)

$3.49

$

In Stock, only 3 left!

0

38

Cub Cadet BS-691098

Stud
(Superseded to BS-690227)

Note: (Carburetor)

$7.99

$

In Stock, Qty 6

0

39

Cub Cadet BS-296004

Line-Fuel
(Superseded to BS-791745)

Note: (Cut to Required Length)

$10.99

$

In Stock, Qty 20+

0

40

Cub Cadet BS-93053

Clamp-Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

41

Cub Cadet BS-298090

Filter-Fuel
(Superseded to BS-298090S)

$

$

Not available

42

Cub Cadet BS-19165

Flywheel Puller

$25.99

$

Usually ships in 2-12 days

0

43

Cub Cadet BS-690603

Clip-Wire

$

$

Not available

44

Cub Cadet BS-395405

Cover-Starter Drive

$

$

Not available

45

Cub Cadet BS-691097

Screw

Note: (Starter Drive Cover)

$3.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-494385

Carburetor Gasket Set
(Superseded to BS-697241)

$43.99

$

In Stock, only 1 left!

0

47

Cub Cadet BS-94927

Washer
(Superseded to BS-691691)

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

48

Cub Cadet BS-93306

Pin-Cotter

$

$

Not available

49

Cub Cadet BS-495157

Crank-Governor
(Superseded to BS-692012)

$13.99

$

In Stock, only 2 left!

0

50

Cub Cadet BS-691374

Governor Control Lever

$26.99

$

In Stock, only 2 left!

0

51

Cub Cadet BS-92613

Bolt

Note: (Governor Control Lever)

$

$

Not available

52

Cub Cadet BS-231082

Nut

Note: (Governor Control Lever)

$

$

Not available

53

Cub Cadet BS-494222

Muffler-Exhaust

$68.99

$

Usually ships in 2-12 days

0

54

Cub Cadet BS-94905

Screw

Note: (Muffler Bracket)

$

$

Not available

55

Cub Cadet BS-94054

Screw
(Superseded to BS-691351)

Note: (Muffler-Exhaust)

$8.49

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-690433

Shield-Heat

$21.99

$

Usually ships in 2-12 days

0

57

Cub Cadet BS-692350

Mechanical Governor Link

$

$

Not available

58

Cub Cadet BS-690573

Choke Link

$9.49

$

Usually ships in 2-12 days

0

59

Cub Cadet BS-260871

Governor Spring
(Superseded to BS-792602)

$3.49

$

In Stock, only 2 left!

0

60

Cub Cadet BS-495611

Bracket-Control
(Superseded to BS-694042)

$38.99

$

In Stock, Qty 20+

0

61

Cub Cadet BS-94929

Screw
(Superseded to BS-691693)

Note: (Control Bracket)

$3.99

$

In Stock, Qty 9

0

62

Cub Cadet BS-691354

Flywheel

$192.99

$

Usually ships in 2-12 days

0

63

Cub Cadet BS-392134

Gear-Ring
(Superseded to BS-696537)

$50.99

$

Usually ships in 2-12 days

0

64

Cub Cadet BS-691173

Cup-Flywheel

$37.99

$

Usually ships in 2-12 days

0

65

Cub Cadet BS-690582

Washer

Note: (Flywheel)

$4.49

$

In Stock, only 4 left!

0

66

Cub Cadet BS-92284

Nut
(Superseded to 712-3056)

Note: (Flywheel)

$4.99

$

In Stock, Qty 13

0

67

Cub Cadet BS-224517

Rotating Screen
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

68

Cub Cadet BS-94626

Screw
(Superseded to BS-691655)

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0
