CYB (13A-325-101) - Cub Cadet Rear-Engine Riding Mower (1999) Transaxle Assembly Support Parts Diagram

Rear-Engine Riding Mower

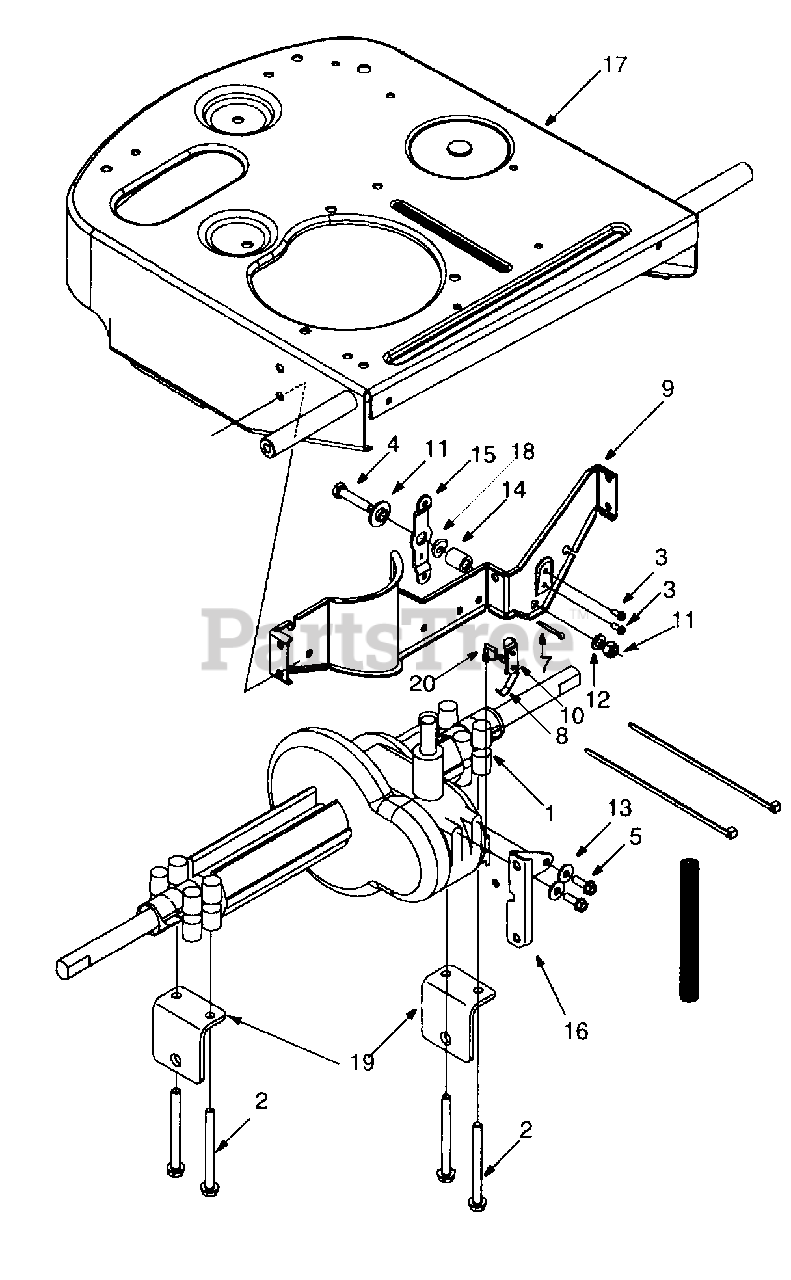

Transaxle Assembly Support Parts Diagram

  • Title
1

Cub Cadet 629-0865

Harness Assembly Adapter

$

$

Not available

2

Cub Cadet 710-1208

Hex TT Screw 5/16-18 x 3.50

$6.99

$

In Stock, only 2 left!

0

3

Cub Cadet 710-0227

Hex Washer Head Self-Tap. Screw

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0805

Hex Screw 5/16-18 x 1.5 Gr. 5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0642

Thd. Forming Scr. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

?6

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

9

Cub Cadet 783-0809

Transaxle Support Bracket

Note: (Code N)

Variations

Cub Cadet 783-0809-0637

TRANSAXLE SUPPORT BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 725-1713A

Spring Switch
(Superseded to 725-1746)

$

$

Not available

11

Cub Cadet 736-0289

Shoulder Bushing
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0173

Flat Washer .28 I.D. x .74 O.D. x .083

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 750-1064

Spacer
(Superseded to 950-1064)

$

$

Not available

15

Cub Cadet 783-0433A

Shift Lever

$

$

Not available

16

Cub Cadet 783-0591

Transaxle Bracket

$

$

Not available

17

Cub Cadet 683-0149A

Frame Assembly

Variations

Cub Cadet 683-0149A-0637

FRAME ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0149A-0665

FRAME ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

$

$

18

Cub Cadet 736-3013

Flat Washer

$4.49

$

In Stock, only 3 left!

0

19

Cub Cadet 783-0437

Rear Axle Bracket

Variations

Cub Cadet 783-0437-0637

BRACKET-REAR AXLE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0437-0665

USE 783-0437-0637 BRACKET-REA - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0437-0721

REAR AXLE BRACKET - SEARS RED (0721)

$

$

Not available

Cub Cadet 783-0437-4044

REAR AXLE BRACKET - CRAFTSMAN RED (4044)

$

$

Not available

$

$

20

Cub Cadet 729-0268

Insulation Connector

$

$

Not available
