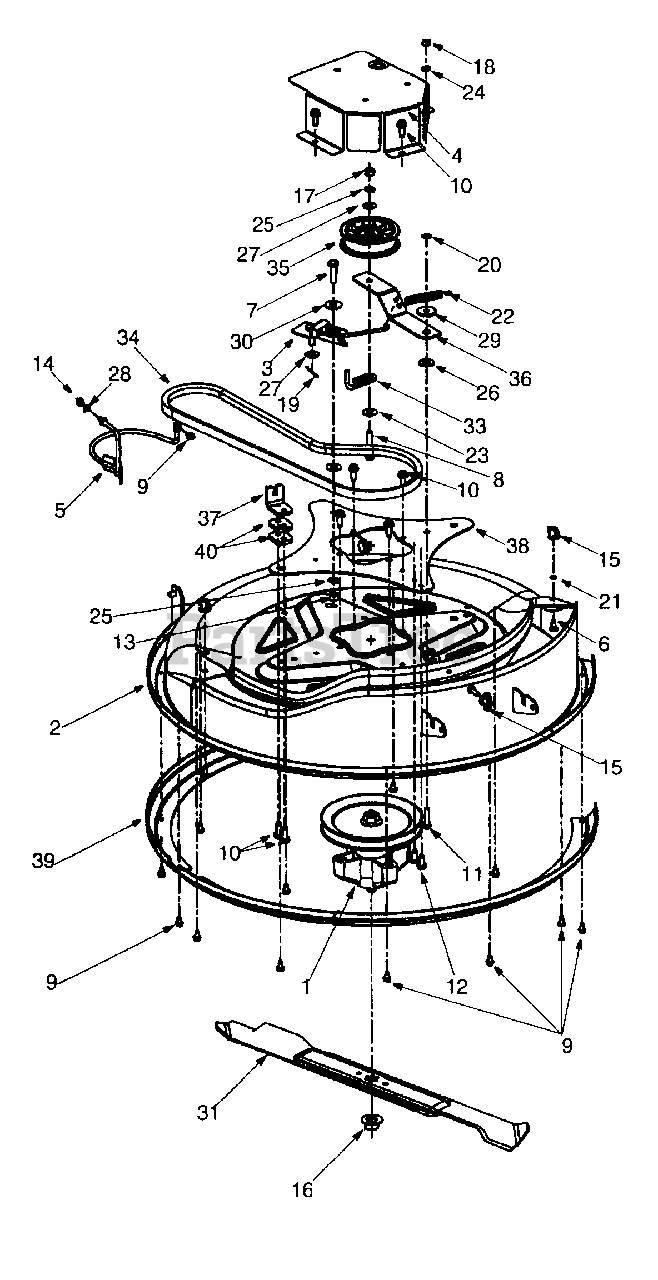

CYB (13A-325-101) - Cub Cadet Rear-Engine Riding Mower (1999) Mowing Deck Assembly Parts Diagram

Rear-Engine Riding Mower

Mowing Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 618-0250

Spindle Assembly
(Superseded to 618-0250P)

$402.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 683-0150C

Deck Assembly
(Superseded to 983-0150E)

Note: (Code N)

Variations

Cub Cadet 683-0150C-0498

USE 983-0150E-0637 DECK ASM-2 - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 683-0150C-0637

USE 983-0150E-0637 DECK ASM-2 - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0150C-0648

USE 983-0150E-0637 DECK ASM-2 - TECH GRAY (0648)

$

$

Not available

Cub Cadet 683-0150C-0650

USE 983-0150E-0650 DECK ASM-2 - RED METALLIC (0650)

$

$

Not available

Cub Cadet 683-0150C-0665

USE 983-0150E-0637 DECK ASM-2 - YARDMAN GREEN (0665)

$

$

Not available

$

$

3

Cub Cadet 683-0159

Brake Bracket Assembly
(Superseded to 983-0159)

$

$

Not available

4

Cub Cadet 683-0173

Deck Belt Cover

Variations

Cub Cadet 683-0173-0637

Deck Belt Cover Assembly, Black - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0173-0650

Deck Belt Cover Assembly, Black - RED METALLIC (0650)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0173-0665

Deck Belt Cover Assembly, Black - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

$57.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 747-1172

Belt Keeper

Note: (Code N)

Variations

Cub Cadet 747-1172-0637

BELT KEEPER - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 710-0134

Carriage Screw 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25 Grade 8

$4.99

$

In Stock, Qty 8

0

8

Cub Cadet 710-0347

Hex Screw 3/8-16 x 1.75 Gr. 5

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0599

Self-Tapping Washer Head Hex Screw 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0650

Hex Washer Self-Tapping Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0672

Hex Cap Scr. 5/16-24 x 1.25 (Gr. 5)

$4.49

$

In Stock, Qty 19

0

12

Cub Cadet 710-1611

Torx Head Screw 5/16-18 x .75
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

13

Cub Cadet 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

14

Cub Cadet 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0397

Wing Nut With Bell Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0417A

Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3057

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

19

Cub Cadet 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 726-0201

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 726-0233

Push Nut

$4.49

$

In Stock, only 3 left!

0

22

Cub Cadet 732-0429A

Extension Spring
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0101

Flat Washer 3/8 x 1.00 x .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0289

Bushing
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

27

Cub Cadet 736-0300

Flat Washer .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

Cub Cadet 736-0343

Flat Washer .330 x 1.25 x .120

$4.49

$

In Stock, Qty 7

0

30

Cub Cadet 738-0968

Spacer
(Superseded to 938-0968)

$5.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 742-0651

Three-in-one Blade
(Superseded to 942-0651)

Variations

Cub Cadet 742-0651-0637

Mower Blade, 27.56" Lg 3-Function Star - POWDER BLACK (0637)

$61.99

$

In Stock, only 1 left!

0

$

$

?32

Cub Cadet 747-0957

Link Rod

$

$

Not available

33

Cub Cadet 747-0972

Belt Keeper

$

$

Not available

34

Cub Cadet 754-0754

V Belt
(Superseded to 954-0754)

$65.99

$

In Stock, only 2 left!

0

35

Cub Cadet 756-0627

Flat Idler Pulley
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

36

Cub Cadet 783-0463

Idler Bracket

Variations

Cub Cadet 783-0463-0637

BRACKET-DE - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 783-0529

Cable Bracket

$

$

Not available

38

Cub Cadet 783-0569A

Deck Plate
(Superseded to 783-0569B-0637)

Variations

Cub Cadet 783-0569A-0637

USE 783-0569B-0637 PLATE-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

39

Cub Cadet 783-0781

Deck Skirt

Note: (Code N)

$

$

Not available

40

Cub Cadet 783-0594

Deck Cable Bracket
(Superseded to 783-0594-0637)

$

$

Not available
