CYB (13A-325-101) - Cub Cadet Rear-Engine Riding Mower (1999) Electrical Parts Diagram

Rear-Engine Riding Mower

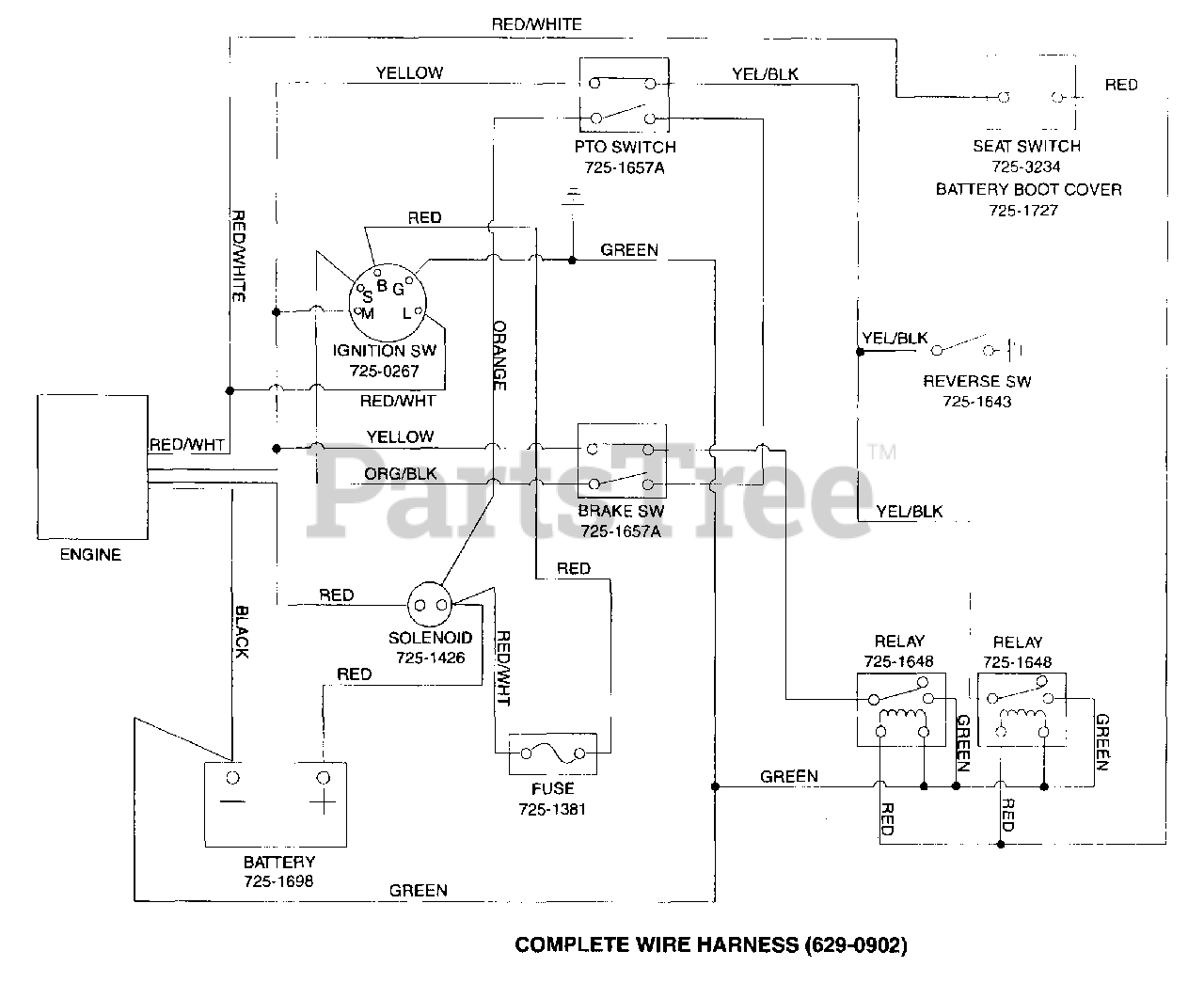

Electrical Parts Diagram

  • Title
725-0267

Cub Cadet 725-0267

Ignition Sw
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

725-1426

Cub Cadet 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

725-1698

Cub Cadet 725-1698

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

725-1657A

Cub Cadet 725-1657A

PTO Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

725-1657A

Cub Cadet 725-1657A

Brake Sw
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

725-1381

Cub Cadet 725-1381

Fuse
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

725-3234

Cub Cadet 725-3234

Seat Switch
(Superseded to 925-3234)

$36.99

$

In Stock, Qty 7

0

725-1727

Cub Cadet 725-1727

Battery Boot Cover

$

$

Not available

725-1643

Cub Cadet 725-1643

Reverse Sw

$10.99

$

In Stock, only 1 left!

0

725-1648

Cub Cadet 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 7

0

629-0902

Cub Cadet 629-0902

Complete Wire Harness

$

$

Not available
