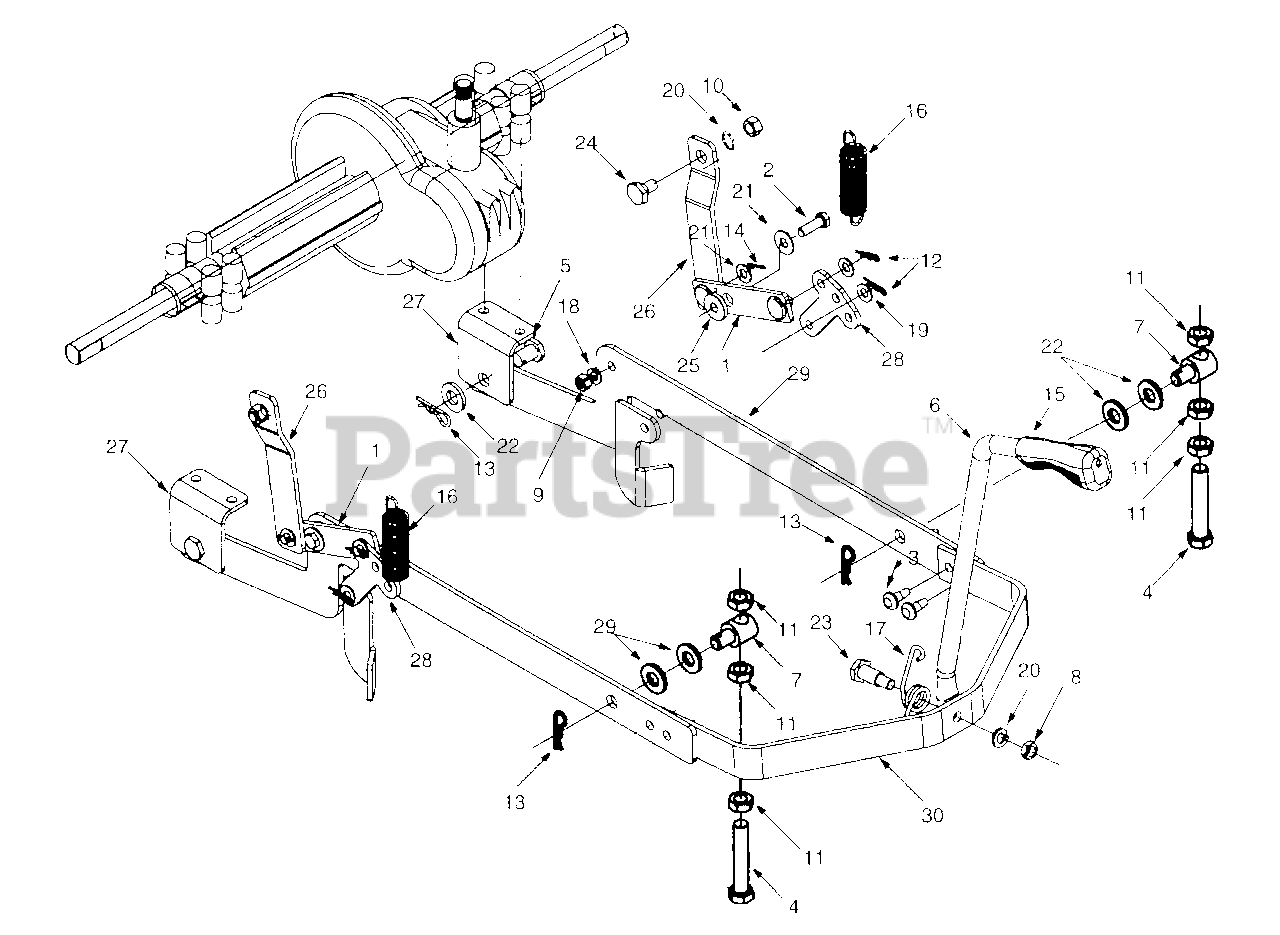

CYB (13A-325-101) - Cub Cadet Rear-Engine Riding Mower (1999) Deck Hanger Parts Diagram

Rear-Engine Riding Mower

Deck Hanger Parts Diagram

  • Title

1

Cub Cadet 683-0152

Pivot Link Assembly

Variations

Cub Cadet 683-0152-0637

LINK ASSEMBLY- - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 710-0376

Hex Screw 5/16-18 X 1.00 Gr.5

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3230

Hex Bolt 1/2-13 X 2.75 Gr.5 Special

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 711-0332

Lift Bracket Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 12

0

6

Cub Cadet 711-1120

Lift Rod

$

$

Not available

7

Cub Cadet 711-3319

Ferrule
(Superseded to 911-3319)

$

$

Not available

8

Cub Cadet 712-3008

Jam Nut 3/8-16 Gr. 5

$4.99

$

In Stock, Qty 16

0

9

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0266

Hex Cent. Lock Nut 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3048

Hex Jam Nut 1/2-13 Gr.5

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0147

Cotter Pin

$4.99

$

In Stock, Qty 6

0

14

Cub Cadet 714-3010

Cotter Pin

$4.99

$

In Stock, only 1 left!

0

15

Cub Cadet 720-0298

Handle Grip

$43.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 732-0829

Extension Spring
(Superseded to 932-0829)

$

$

Not available

17

Cub Cadet 732-0837

Torsion Spring

$

$

Not available

18

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0140

Flat Washer .385 I.D. x .620 O.D.

Note: (Code N)

$7.49

$

In Stock, Qty 6

0

20

Cub Cadet 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0275

Flat Washer 5/16

$6.99

$

Usually ships in 3-6 days

0

22

UNKNOWN

$

$

Not available

23

Cub Cadet 738-0145

Shoulder Screw

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 738-0183

Shoulder Screw
(Superseded to 938-0183)

$

$

Not available

25

Cub Cadet 738-0958

Shoulder Spacer
(Superseded to 938-0958)

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 783-0435

Upper Deck Link

Variations

Cub Cadet 783-0435-0637

LINK-UPPER DECK - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0435-0665

USE 783-0435-0637 LINK-UPPER - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0435-0721

UPPER DECK LINK - SEARS RED (0721)

$

$

Not available

Cub Cadet 783-0435-4044

LINK-UPPER DECK - CRAFTSMAN RED (4044)

$

$

Not available

$

$

27

Cub Cadet 783-0437

Axle Bracket: Rear

Variations

Cub Cadet 783-0437-0637

BRACKET-REAR AXLE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0437-0665

USE 783-0437-0637 BRACKET-REA - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0437-0721

REAR AXLE BRACKET - SEARS RED (0721)

$

$

Not available

Cub Cadet 783-0437-4044

REAR AXLE BRACKET - CRAFTSMAN RED (4044)

$

$

Not available

$

$

28

Cub Cadet 783-0440

Lower Link

$

$

Not available

29

Cub Cadet 736-0257

Flat Washer .526 1.D. x 1.262 O.D.
(Superseded to 936-0179)

Note: (Code N)

$4.99

$

In Stock, only 2 left!

0

30

Cub Cadet 683-0194

Crossbar Lift Link
(Superseded to 683-0194A-0637)

Variations

Cub Cadet 683-0194-0637

USE 683-0194A-0637 ARM ASM-LI - POWDER BLACK (0637)

$233.99

$

In Stock, only 1 left!

0

$233.99

$

In Stock, only 1 left!

0
