CXT 21675 (7800816) - Champion 21" Walk-Behind Mower (2011) Wheels & Height-of-Cut Group (7502395) Parts Diagram

21" Walk-Behind Mower

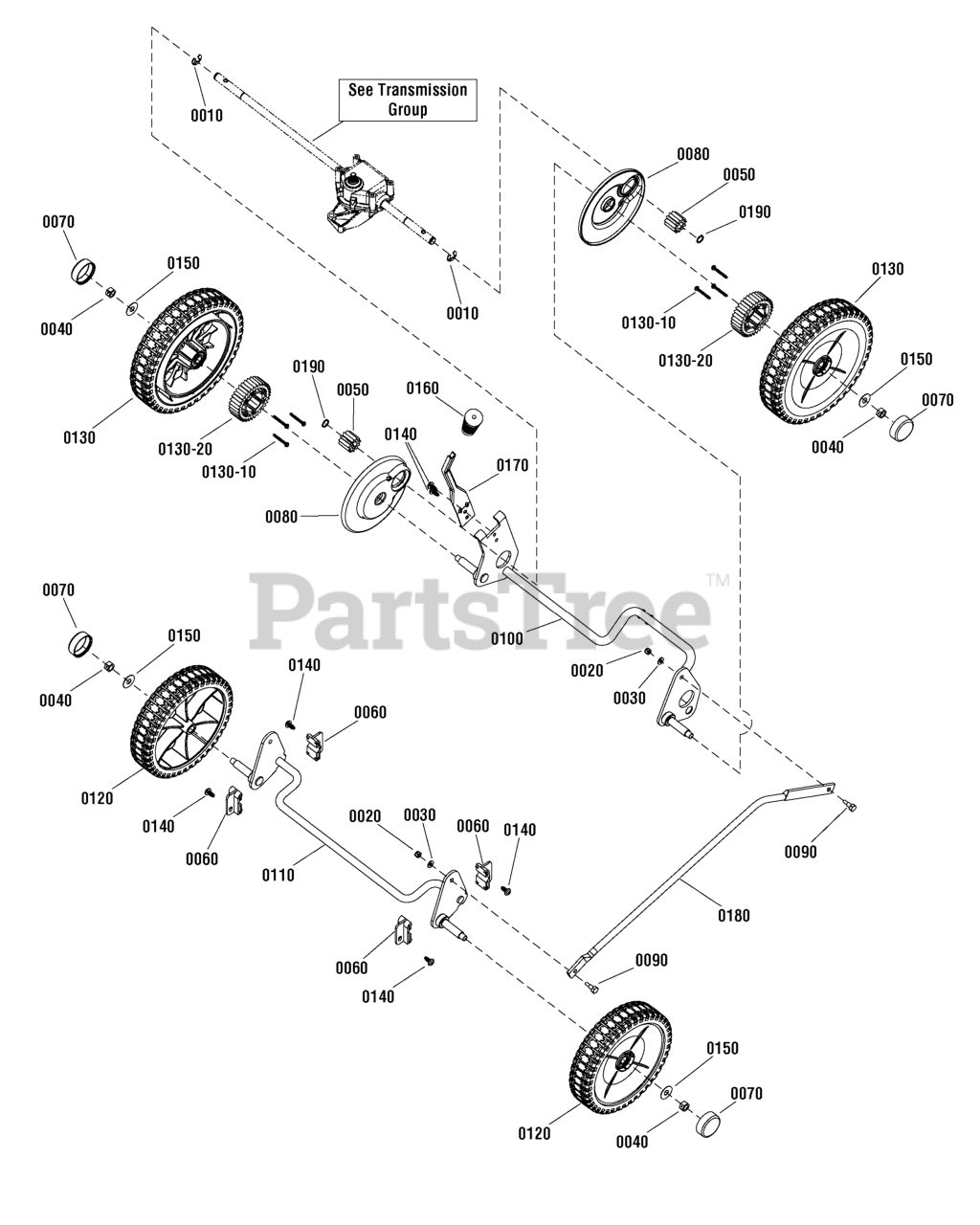

Wheels & Height-of-Cut Group (7502395) Parts Diagram

  • Title
0010

Murray 7014341YP

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

0020

Murray 7091290SM

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0030

Murray 7091552SM

WASHER, Flat, 7/32

$3.99

$

In Stock, Qty 16

0

0040

Murray 7091585SM

NUT, Center Lock Hex, 3/8-16, GR 5
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0050

Murray 7100820YP

GEAR, Pinion

$

$

Not available

0060

Murray 7101241YP

BUSHING, Front 21"

$6.99

$

In Stock, only 4 left!

0

0070

Murray 7101351MA

HUBCAP, Round, Black

$4.99

$

Usually ships in 2-12 days

0

0080

Murray 7101367YP

SHIELD, Dust

$7.49

$

In Stock, only 2 left!

0

0090

Murray 7101774YP

BOLT, Shoulder, 1/4 x 3/8

$8.49

$

In Stock, only 2 left!

0

0100

Murray 7400275YP

CROSSBAR, Rear

$110.99

$

In Stock, only 1 left!

0

0110

Murray 7400276YP

CROSSBAR, Front

$152.99

$

Usually ships in 2-12 days

0

0120

Murray 7101712MA

WHEEL, 8" x 2" Idle, w/Db Tread, Brute Yellow

$39.99

$

Usually ships in 2-12 days

0

0130

Murray 7500689MA

WHEEL ASSEMBLY, 9" x 2" Drive, w/External Gear

Note: (Incl. Ref. No. 0300)

$39.99

$

Usually ships in 2-12 days

0

0130-10

Murray 7091196SM

SCREW, Hex Washer Self-Tap, Hi-Lo, #8 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0130-20

Murray 7100914YP

GEAR, External Wheel

$10.99

$

Usually ships in 2-12 days

0

0140

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

0150

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0160

Murray 671297MA

GRIP, Height Adjust

$6.49

$

In Stock, only 1 left!

0

0170

Murray 672278MA

LEVER, Spring, Height-Of-Cut

$12.99

$

Usually ships in 2-12 days

0

0180

Murray 7101430ZYP

ROD, Lifter Link

$16.99

$

Usually ships in 2-12 days

0

0190

Murray 7027999YP

RING, Retaining

$4.49

$

In Stock, only 4 left!

0

0300

Murray 7101380YP

BEARING, Ball, 1-1/8 OD, Flange
(Superseded to 071579MA)

Note: (Included with Ref. No. 0130)(Not Illustrated)

$40.99

$

In Stock, only 1 left!

0
