CXT 21675 (7800816) - Champion 21" Walk-Behind Mower (2011) Mower Deck Group (7502396) Parts Diagram

21" Walk-Behind Mower

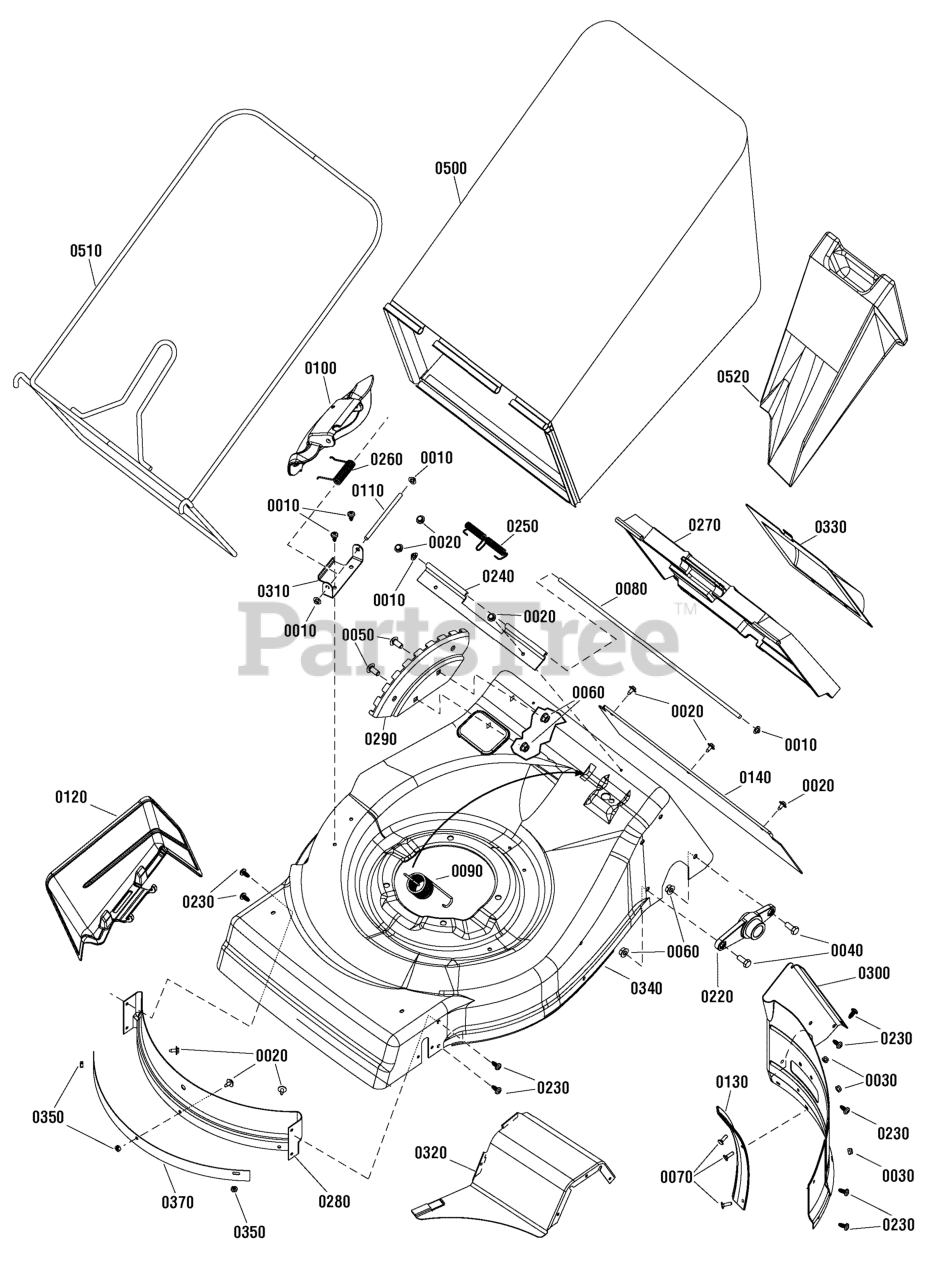

Mower Deck Group (7502396) Parts Diagram

  • Title

0010

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

0020

Murray 7091286YP

SCREW, Self Tap, SEMS, #10-24 x 1/2

$4.99

$

In Stock, Qty 12

0

0030

Murray 7091290SM

NUT, Hex Lock, Nylon, #10C
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0040

Murray 7091318SM

SCREW, Hex Head Cap, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0050

Murray 7091508SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0060

Murray 7091601SM

NUT, Hex Flange, 5/16-18, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0070

Murray 7091711YP

BOLT, Flat Head Square Neck, #10-24 x 5/8
(Superseded to 7091283YP)

$4.49

$

In Stock, only 3 left!

0

0080

Murray 7101314YP

ROD, Rear Door Pivot, 21" Rear Discharge

$6.99

$

In Stock, only 1 left!

0

0090

Murray 7101434YP

SPRING, Extension, Height-Of-Cut Assist

$6.99

$

Usually ships in 2-12 days

0

0100

Murray 7101437YP

COVER, 21" Mulching

$20.99

$

Usually ships in 2-12 days

0

0110

Murray 7101471YP

ROD, Mulch Cover Pivot

$4.49

$

Usually ships in 2-12 days

0

0120

Murray 7101490YP

CHUTE, 21" Side Discharge

$43.99

$

In Stock, only 1 left!

0

0130

Murray 7101502YP

BAFFLE, Extension, 21" RD WBM

$8.49

$

Usually ships in 2-12 days

0

0140

Murray 7101553YP

DEFLECTOR, Rear, 21" WBM, RD

$

$

Not available

0220

Murray 7500558YP

HOLDER, Bearing Assembly 21", RD
(Superseded to 7501070YP)

Note: (Incl. Ref. No. 0220-10)

$26.99

$

In Stock, only 2 left!

0

0220-10

Murray 7078243YP

BEARING, Ball

Note: (Included with Ref. No. 0220)

$10.99

$

In Stock, Qty 18

0

0230

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

0240

Murray 071410MA

SPACER, Rear Door, 21" WBM

$7.99

$

Usually ships in 2-12 days

0

0250

Murray 166X33MA

SPRING, Torsion

$6.99

$

In Stock, only 1 left!

0

0260

Murray 166X38MA

SPRING, Torsion, Chute

$4.99

$

In Stock, only 2 left!

0

0270

Murray 071409MA

DOOR, 21" Black

$66.99

$

Usually ships in 2-12 days

0

0280

Murray 7300585ZMA

BAFFLE, Front, 21" WBM, RD

$82.99

$

Usually ships in 2-12 days

0

0290

Murray 7300587ZYP

INDEX PLATE, Height-Of-Cut

$12.99

$

Usually ships in 2-12 days

0

0300

Murray 7300589ZMA

BAFFLE, Left Rear, 21" WBM, RD

$

$

Not available

0310

Murray 7300590ZMA

BRACKET, Chute Deflector

$6.49

$

Usually ships in 2-12 days

0

0320

Murray 7300591ZMA

BAFFLE, Rjght Rear, 21" WBM, RD
(Superseded to 7300591BMYP)

$65.99

$

Usually ships in 2-12 days

0

0330

Murray 7300723ZMA

TRANSMISSION COVER, 21" WBM, RD

$33.99

$

Usually ships in 2-12 days

0

0340

Murray 7301050ZYP

DECK, 21" RD

$276.99

$

Usually ships in 2-12 days

0

0350

Murray 7091267SM

NUT, #10-24 Hex Center Lock

$3.99

$

In Stock, Qty 6

0

0370

Murray 7301009ZYP

BAFFLE EXTENSION, 21" RD

$21.99

$

Usually ships in 2-12 days

0

0500

Murray 7101304YP

GRASSBAG, 21" Rear Discharge

$119.99

$

In Stock, only 1 left!

0

0510

Murray 7101303AYP

BAG FRAME, 21" RD WBM

$

$

Not available

0520

Murray 071250MA

PLUG, Mulching

$97.99

$

Usually ships in 2-12 days

0
