CXT 21675 (7800816) - Champion 21" Walk-Behind Mower (2011) Engine & Blade Group (7502393) Parts Diagram

21" Walk-Behind Mower

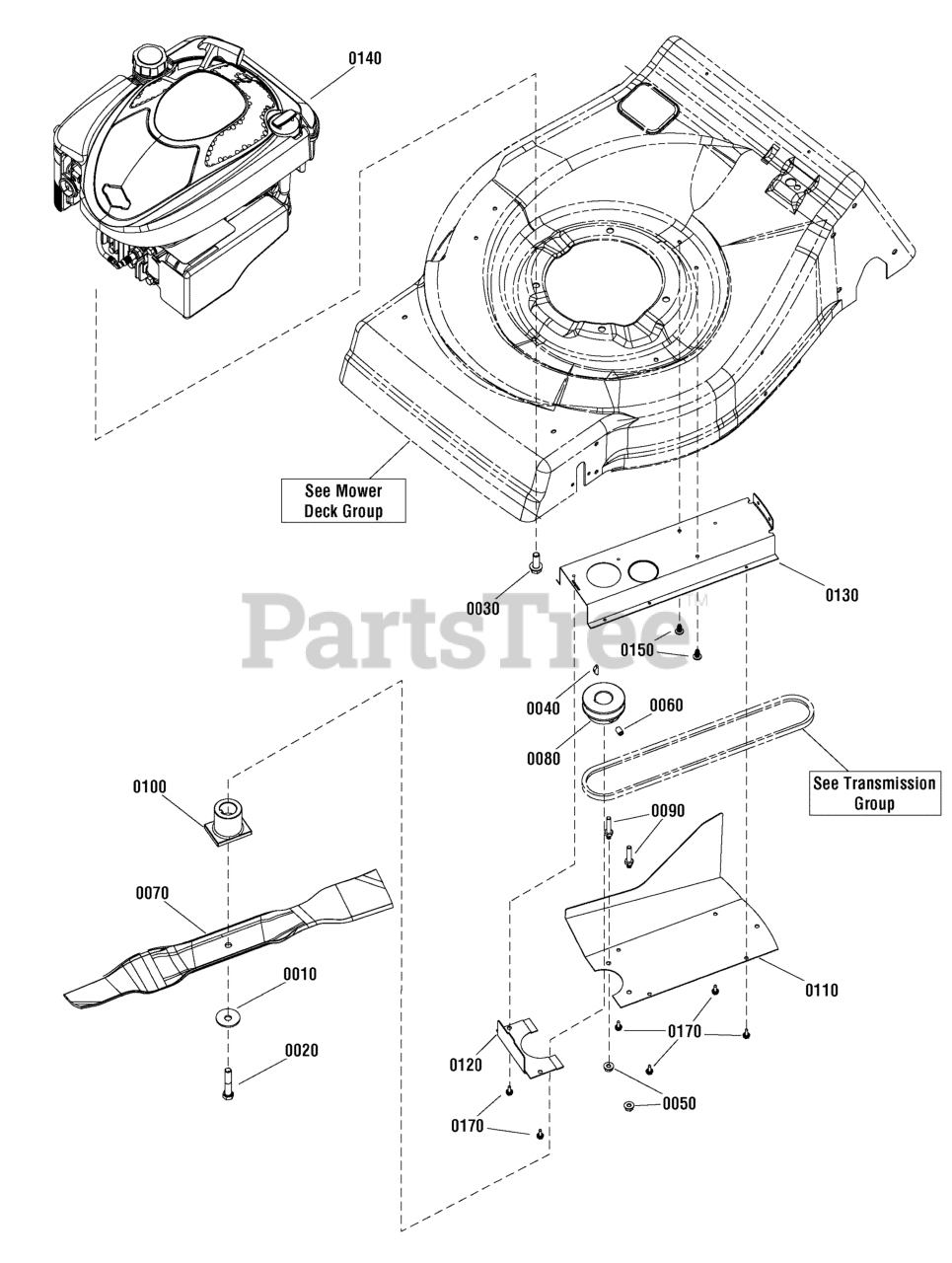

Engine & Blade Group (7502393) Parts Diagram

  • Title

0010

Murray 7012063SM

WASHER, Cone
(Superseded to 703963)

$6.99

$

Usually ships in 2-12 days

0

0020

Murray 7090167SM

SCREW, Hex Head Cap, 3/8-24 x 2, G5

$3.99

$

Usually ships in 2-12 days

0

0030

Murray 7090324SM

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0040

Murray 7091214YP

KEY, Hi-Pro, #605

$4.99

$

In Stock, only 1 left!

0

0050

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

0060

Murray 7092086YP

SET SCREW, Hex Recess, 5/16-18 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0070

Murray 7100242AYP

BLADE, Wave, 21" Steel Deck

$28.99

$

In Stock, only 1 left!

0

0080

Murray 7100437YP

PULLEY, Engine

$40.99

$

Usually ships in 2-12 days

0

0090

Murray 7101313YP

BELT GUIDE, Engine, 21" RD (1/4-20 thread)

$3.99

$

Usually ships in 2-12 days

0

0100

Murray 7101414YP

BLADE HUB, 21" WBM, Rear Discharge, 2 Position

$16.99

$

In Stock, only 1 left!

0

0110

Murray 7300596YP

COVER, Belt Guard
(Superseded to 7300596ZMA)

$33.99

$

Usually ships in 2-12 days

0

0120

Murray 7300724YP

COVER, Belt

$10.99

$

Usually ships in 2-12 days

0

0130

Murray 7300725YP

BELT GUARD

$16.99

$

In Stock, only 1 left!

0

0140

Murray 126T02-0268-B1

* ENGINE, 675 Series Briggs & Stratton

$

$

Not available

0150

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

0170

Murray 26X259MA

SCREW, AB, w/Washer, #10-16 x 1/2

$4.49

$

In Stock, only 4 left!

0
