CXM 550 E (881579) - Champion 16" Walk-Behind Mower, Canada (2013) Wheels Group, 200 SP Tread II (881434) Parts Diagram

16" Walk-Behind Mower, Canada

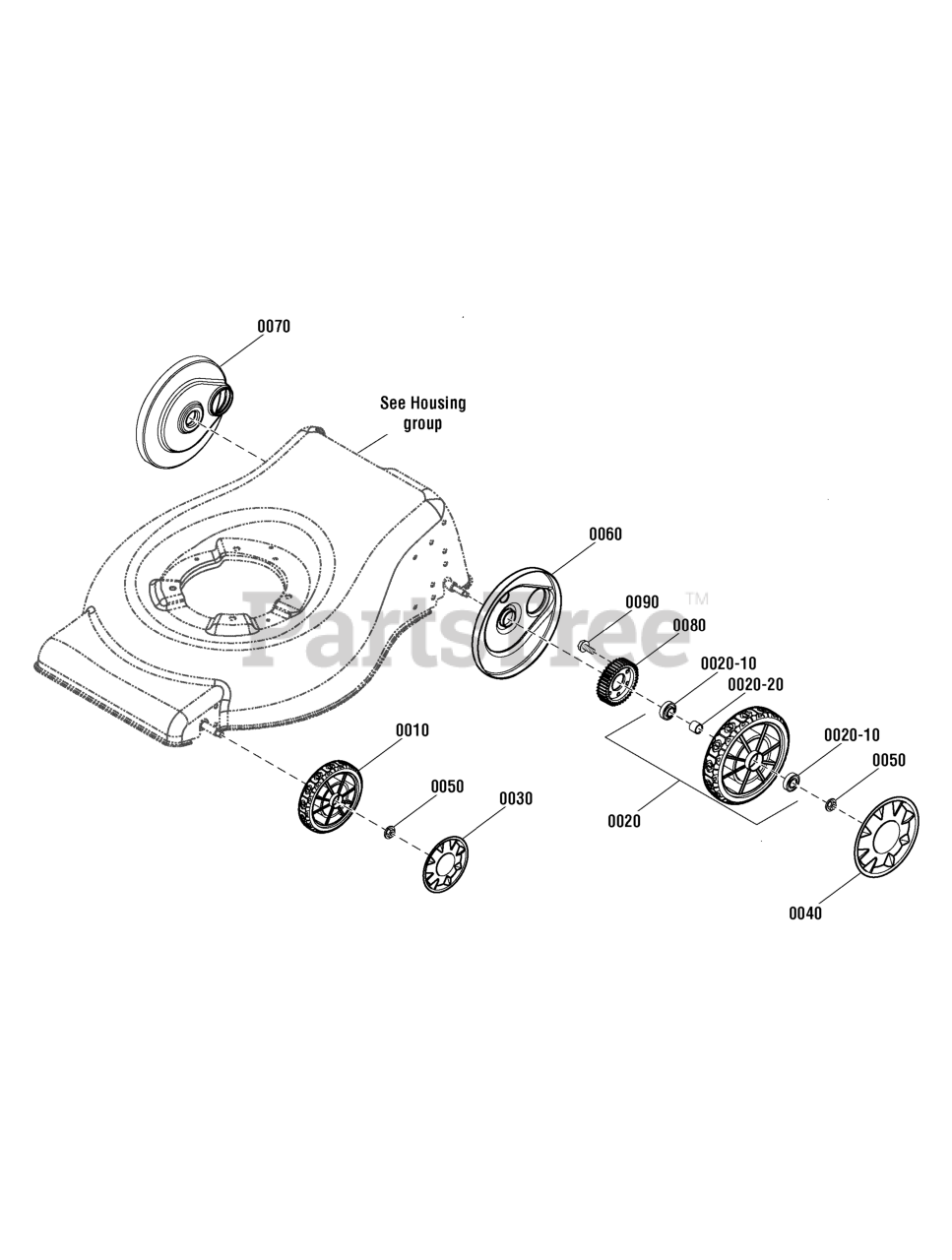

Wheels Group, 200 SP Tread II (881434) Parts Diagram

  • Title
0010

Murray 881428YP

ASSEMBLY, 175MM Wheel, Tread II, Black
(Superseded to 880703YP)

$36.99

$

Usually ships in 2-12 days

0

0020

Murray 880194YP

ASSEMBLY, 200MM Wheel, BBSP Tread II

$

$

Not available

0020-10

Murray 880175YP

WHEEL BEARING
(Superseded to 880718YP)

$56.99

$

In Stock, only 1 left!

0

0020-20

$3.99

$

Usually ships in 2-12 days

0

0030

Murray 881429YP

HUB CAP, 175MM, Style I, Yellow
(Superseded to 880698YP)

$9.49

$

Usually ships in 2-12 days

0

0040

Murray 881430YP

HUB CAP, 200MM Style I, Yellow

$8.49

$

Usually ships in 2-12 days

0

0050

Murray 881568YP

LOCKNUT, 3/8-16, Hex Flange Top Lock

$5.49

$

In Stock, only 1 left!

0

0060

Murray 880230YP

COVER, Dust, RH

$9.49

$

Usually ships in 2-12 days

0

0070

Murray 880640YP

COVER, Dust, LH

$22.99

$

In Stock, only 1 left!

0

0080

Murray 880225YP

GEAR, Wheel 39T

$7.49

$

Usually ships in 2-12 days

0

0090

Murray 880266YP

SCREW, 1/4-15 X 1.0, Hi-Lo Hex Head

$3.49

$

In Stock, only 1 left!

0
