CXM 550 E (881579) - Champion 16" Walk-Behind Mower, Canada (2013) Height-of-Cut Group, 16 SP (881570) Parts Diagram

16" Walk-Behind Mower, Canada

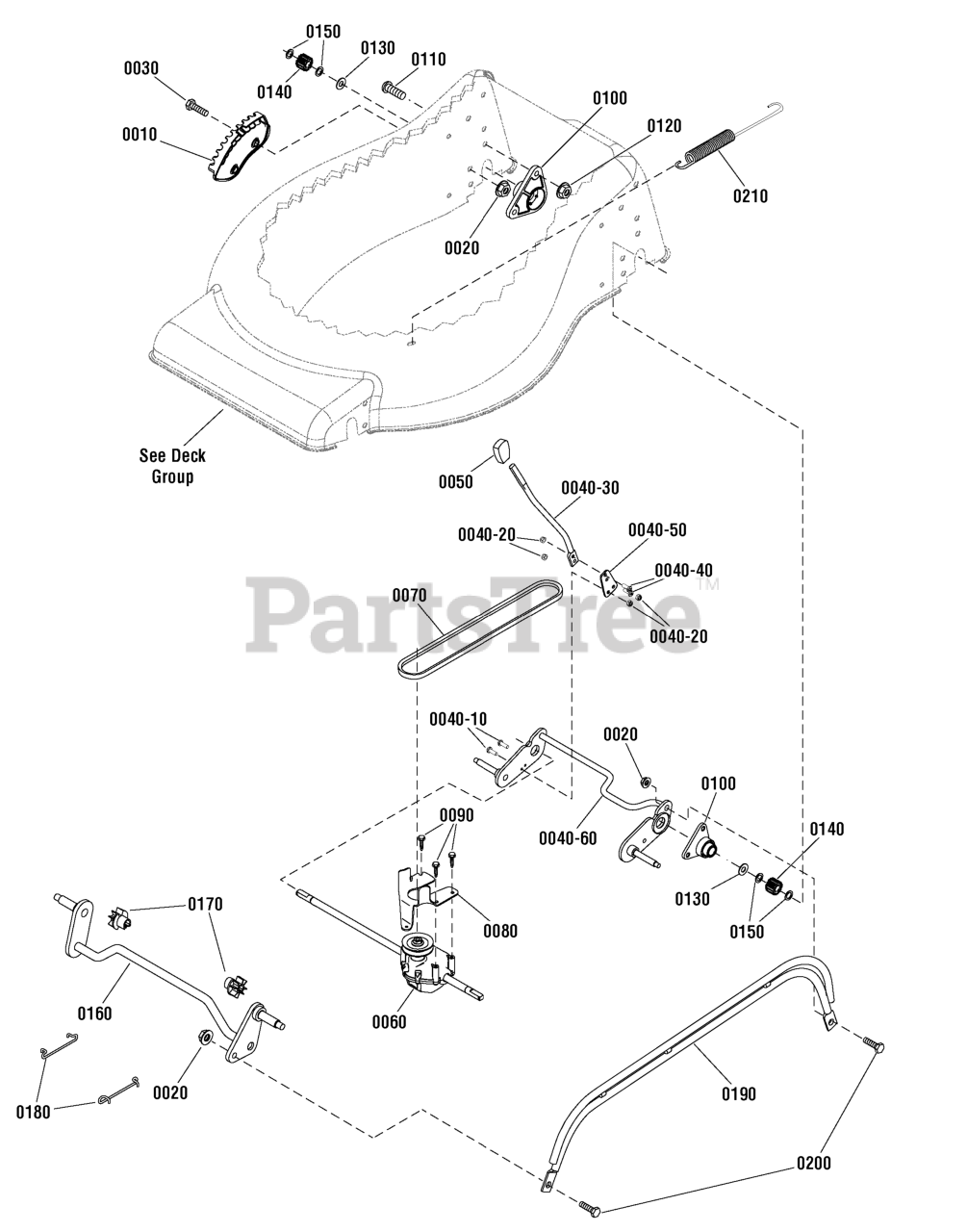

Height-of-Cut Group, 16 SP (881570) Parts Diagram

  • Title

0010

Murray 880960YP

BRACKET, Height Index, STD Wheel

$16.99

$

Usually ships in 2-12 days

0

0020

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0030

Murray 1921332SM

SCREW, 5/16-18 x 3/4 Hex Head Cap, GR 5, YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0040-10

Murray 880339YP

SCREW, M5 X .08 (.56" Lg) T-25 Torx Head

$3.99

$

In Stock, only 4 left!

0

0040-20

Murray 880428YP

NUT, M5 X 0.8, Nylock

$3.99

$

Usually ships in 2-12 days

0

0040-30

Murray 880540YP

LEVER, Height Adjuster

$7.99

$

Usually ships in 2-12 days

0

0040-40

Murray 880577YP

SCREW, M5-0.8 X 12.5, T-25 Torx Hd

$3.99

$

In Stock, only 4 left!

0

0040-50

Murray 880642YP

SPRING, Height Adjustment Handle

$5.99

$

In Stock, only 2 left!

0

0040-60

Murray 880873YP

WELDMENT, Rear Crossbar, 16 SP
(Superseded to 880873BMYP)

$63.99

$

Usually ships in 2-12 days

0

0050

Murray 880325YP

KNOB, Height Adjuster, Style II

$5.99

$

Usually ships in 2-12 days

0

0060

Murray 880379YP

TRANSMISSION, 16" Single Speed

$91.99

$

Usually ships in 2-12 days

0

0070

Murray 880424YP

BELT-V, 29.3" EL, 3L

$22.99

$

Usually ships in 2-12 days

0

0080

Murray 880282YP

GUIDE, Transmission Belt

$12.99

$

Usually ships in 2-12 days

0

0090

Murray 880760YP

SCREW, #10-14 x .88, Plastite

$4.49

$

Usually ships in 2-12 days

0

0100

Murray 880787YP

ASSEMBLY, Ball Bearing Retainer (Includes Bearing)

$17.99

$

Usually ships in 2-12 days

0

0110

Murray 880845YP

SCREW, 1/4-20 X 5/8, Torx Truss Hd

$3.49

$

Usually ships in 2-12 days

0

0120

Murray 880859YP

NUT, 1/4-20, Flange Lock, BZ

$3.99

$

Usually ships in 2-12 days

0

0130

Murray 880324YP

WASHER, 1.177" OD, .506" ID, .031" Thk, Thrust

$3.49

$

Usually ships in 2-12 days

0

0140

Murray 880226YP

GEAR, Pinion 11 Tooth, .91" Lg, .503 Oblong ID

$7.99

$

Usually ships in 2-12 days

0

0150

Murray 880269YP

RING, .46" ID, .050" Thk, Retaining

$3.99

$

Usually ships in 2-12 days

0

0160

Murray 880459YP

WELDMENT, Front Crossbar, 16"

$35.99

$

Usually ships in 2-12 days

0

0170

Murray 880050YP

BUSHING, Front SLA, Nylon

$4.99

$

Usually ships in 2-12 days

0

0180

Murray 881163YP

CLIP, Wire Crossbar Spring

$8.99

$

In Stock, Qty 7

0

0190

Murray 881478AYP

LINK, Lifter, 16

$50.99

$

Usually ships in 2-12 days

0

0200

Murray 880651YP

BOLT, 5/16-18 X .98, 3/8" Shoulder

$3.99

$

Usually ships in 2-12 days

0

0210

Murray 880052YP

SPRING, Extension, 7.873", 90° Offset Hooks

$6.99

$

Usually ships in 2-12 days

0
