CXM 550 (881424) - Champion 38cm Walk-Behind Mower, Canada (2011) Deck & Engine Group Parts Diagram

38cm Walk-Behind Mower, Canada

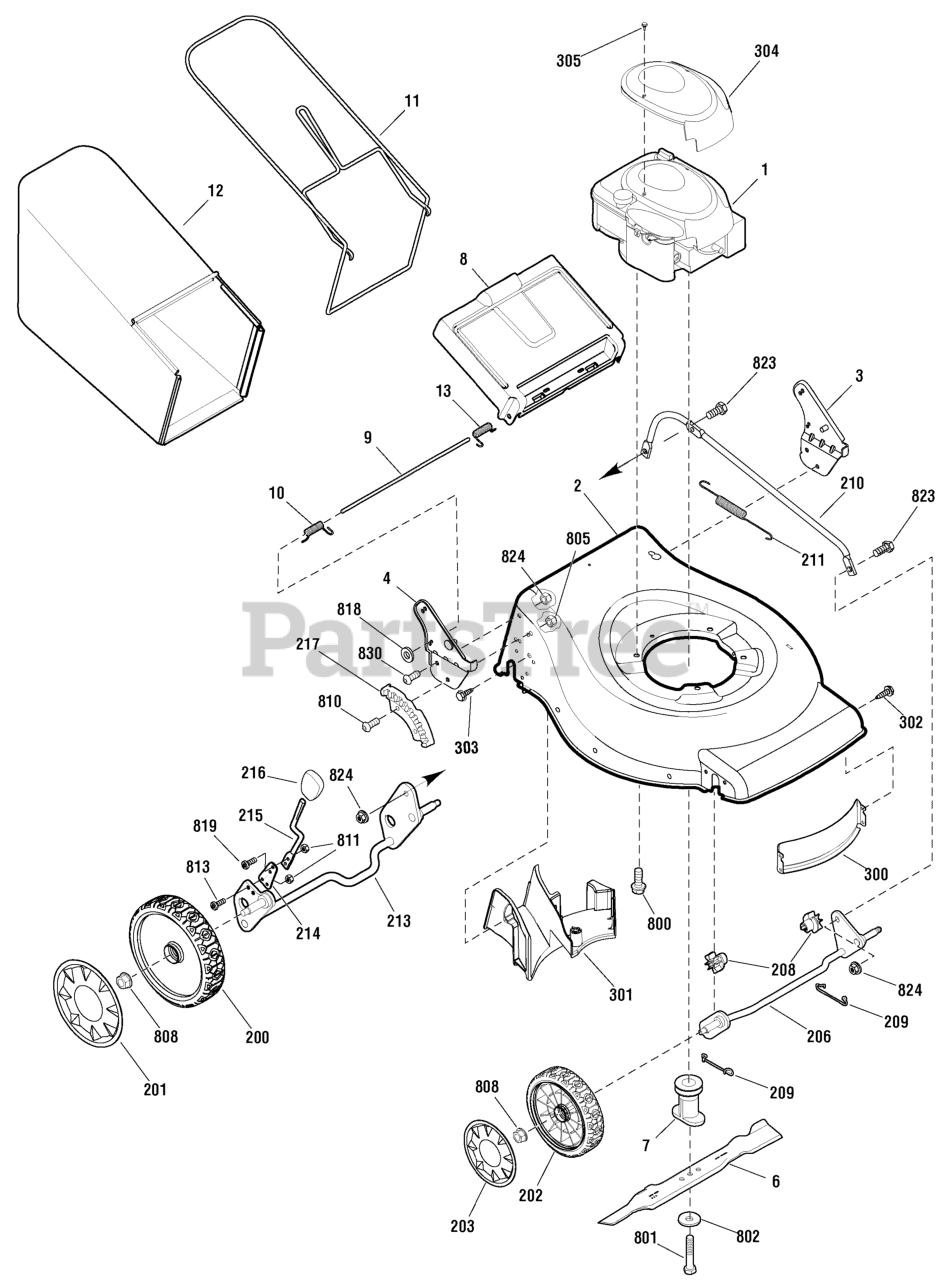

Deck & Engine Group Parts Diagram

  • Title
1

Murray 10T802-0161-B1

* ENGINE, 5.5GT Briggs & Stratton

Note: (Engine Model: 10T802-0161-B1)

$

$

Not available

2

Murray 881120BIYP

MOWER HOUSING

Note: (Includes Ref. Nos. 300 & 302)

$233.99

$

Usually ships in 2-12 days

0

3

Murray 880951AYP

BRACKET ASSEMBLY, Left Handle

$20.99

$

Usually ships in 2-12 days

0

4

Murray 880950AYP

BRACKET ASSEMBLY, Right Handle

$20.99

$

Usually ships in 2-12 days

0

6

Murray 881076YP

BLADE, 16 Inch
(Superseded to 881076BZYP)

$24.99

$

Usually ships in 2-12 days

0

7

Murray 880567YP

BLADE ADAPTER ASSEMBLY

$31.99

$

In Stock, only 1 left!

0

8

Murray 880661YP

DOOR, Rear

$30.99

$

Usually ships in 2-12 days

0

9

Murray 880213YP

ROD, Rear Door

$4.49

$

Usually ships in 2-12 days

0

10

Murray 880942YP

SPRING, Torsion Rear Door, Right

$4.49

$

Usually ships in 2-12 days

0

11

Murray 880944ZYP

FRAME ASSEMBLY

$77.99

$

Usually ships in 2-12 days

0

12

Murray 880947YP

BAG ASSEMBLY

$67.99

$

Usually ships in 2-12 days

0

13

Murray 880943YP

SPRING, Torsion Rear Door, Left

$4.49

$

Usually ships in 2-12 days

0

200

Murray 880194YP

WHEEL, Rear

$

$

Not available

201

Murray 881430YP

HUBCAP, Rear

$8.49

$

Usually ships in 2-12 days

0

202

Murray 881428YP

WHEEL, Front
(Superseded to 880703YP)

$36.99

$

Usually ships in 2-12 days

0

203

Murray 881429YP

HUBCAP, Front
(Superseded to 880698YP)

$9.49

$

Usually ships in 2-12 days

0

206

Murray 880459YP

CROSSBAR ASSEMBLY, Front

$35.99

$

Usually ships in 2-12 days

0

208

Murray 880050YP

BUSHING, Front Crossbar

$4.99

$

Usually ships in 2-12 days

0

209

Murray 881163YP

SPRING, Clip Crossbar

$8.99

$

In Stock, Qty 7

0

210

Murray 880790BIYP

LINK, Single Lever

$27.99

$

Usually ships in 2-12 days

0

211

Murray 880052YP

SPRING, Extension

$6.99

$

Usually ships in 2-12 days

0

213

Murray 880873BIYP

REAR CROSSBAR
(Superseded to 880873BMYP)

$63.99

$

Usually ships in 2-12 days

0

214

Murray 880642YP

SPRING, Adjuster

$5.99

$

In Stock, only 2 left!

0

215

Murray 880540YP

LEVER, Height Adjustment

$7.99

$

Usually ships in 2-12 days

0

216

Murray 880325YP

KNOB, Adjuster

$5.99

$

Usually ships in 2-12 days

0

217

Murray 880960YP

BRACKET, Height Adjuster

$16.99

$

Usually ships in 2-12 days

0

300

Murray 880794BIYP

BAFFLE, Front, 38cm

$32.99

$

Usually ships in 2-12 days

0

301

Murray 880793YP

BAFFLE, Rear, 38cm

$41.99

$

Usually ships in 2-12 days

0

302

Murray 880664YP

SCREW, Pan Head, Taptite, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

303

Murray 880804YP

SCREW, Pan Head, Taptite, 1/4-15 x 5/8

$3.99

$

Usually ships in 2-12 days

0

304

Murray 793814

SHROUD, With Label

$

$

Currently unavailable

305

Murray 95958

CAPSCREW, Hex Washer Head

$

$

Currently unavailable

800

Murray 7090324SM

SCREW, Hex Washer Self-Tap, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

801

Murray 880034YP

BOLT, Blade, 3/8-24 x 2

$4.49

$

Usually ships in 2-12 days

0

802

Murray 880035YP

WASHER, Belleville 7/16 ID

$3.49

$

Usually ships in 2-12 days

0

805

Murray 880020YP

NUT, Nylock, M8 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

808

Murray 880067YP

NUT, Flange Lock 3/8-16

$2.99

$

Usually ships in 2-12 days

0

810

Murray 880323YP

BOLT, Hex Key Head, M8 X 1.25

$3.99

$

In Stock, only 4 left!

0

811

Murray 880428YP

NUT, Nylock

$3.99

$

Usually ships in 2-12 days

0

813

Murray 880339YP

SCREW, Torx Head, M5 x .8 x 14mm

$3.99

$

In Stock, only 4 left!

0

818

Murray 7091020YP

PUSHNUT, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

819

Murray 880577YP

SCREW, Torx Head, M5 x .8 x 12.5mm

$3.99

$

In Stock, only 4 left!

0

823

Murray 880651YP

BOLT, Shoulder, 5/16-18 x 1

$3.99

$

Usually ships in 2-12 days

0

824

Murray 880020YP

NUT, Nylock, M8 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

830

Murray 880748YP

SCREW, 5/16-18 x 1.1, Hex Washer

$3.99

$

Usually ships in 2-12 days

0
