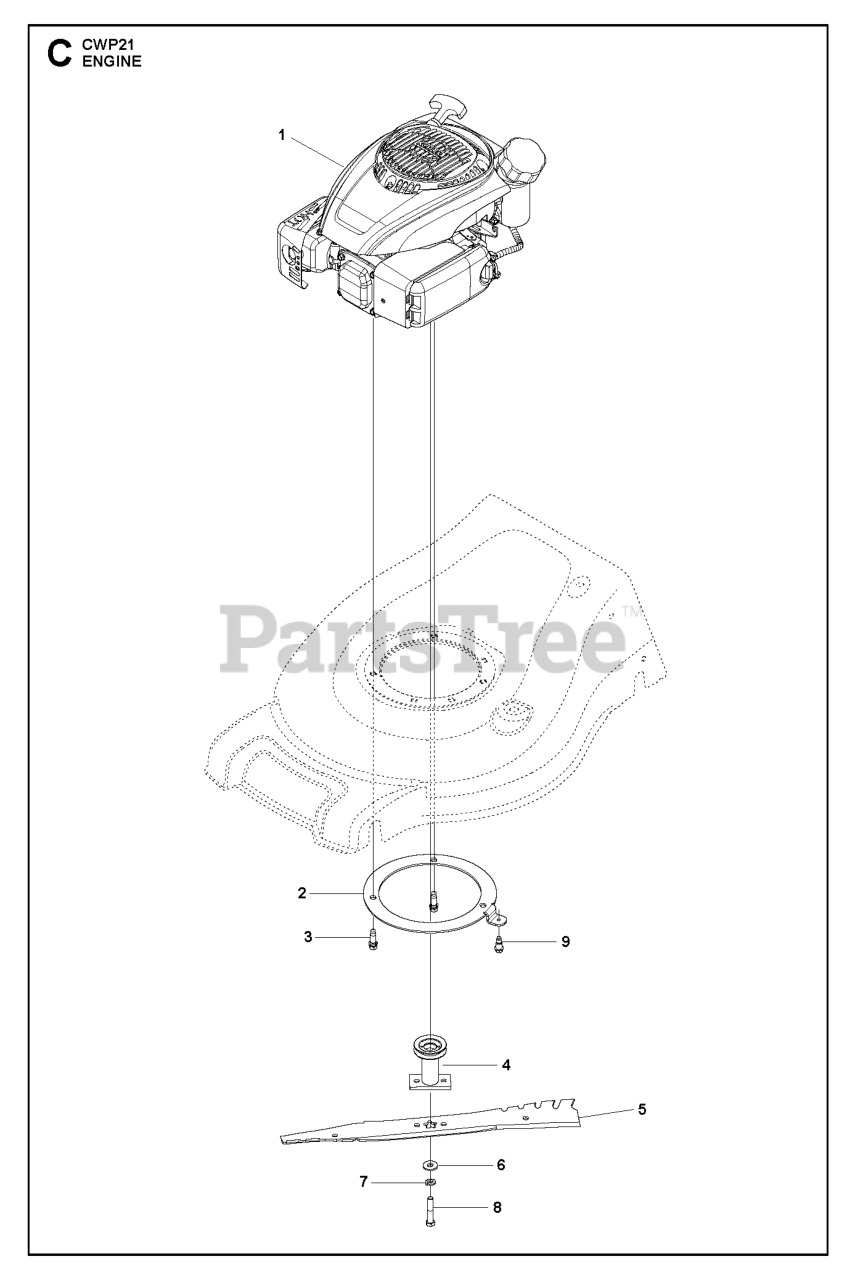

CWP 21 (961320104-00) - RedMax 21" Walk-Behind Mower (2017-10) ENGINE Parts Diagram

21" Walk-Behind Mower

ENGINE Parts Diagram

  • Title

1

RedMax 000000000

Note: Kohler HD 775-3018 For service and parts 1-800-544-2444

$

$

Not available

2

RedMax 591101102

MOUNTING PLATE BOTTOM ENGINE R

Note: Bottom Engine Ring

$

$

Not available

3

RedMax 532150406

BOLT 3/8-16X1-1/8

Note: Enigne, 3/8-16

$7.49

$

Usually ships in 3-10 days

0

4

RedMax 590044201

ADAPTER.BLD.25M.2P.AW/RW/21EFF

Note: 7/8 21"

$11.99

$

Usually ships in 3-10 days

0

5

RedMax 586859602

BLADE.21.REAPER.WO/NOTCHES
(Superseded to 586859604)

Note: High Lift

$17.99

$

In Stock, Qty 20+

0

6

RedMax 532851074

WASHER,HARDEN

Note: Hardened

$4.99

$

In Stock, Qty 20+

0

7

RedMax 532850263

LOCKWASHER
(Superseded to 810040600)

Note: 3/8, Helical Spring

$1.99

$

Usually ships in 3-10 days

0

8

RedMax 582388401

BOLT.ENGINE.PULLEY

Note: Hex Head Machine Screw

$5.99

$

Usually ships in 3-10 days

0

9

RedMax 581726101

BOLT SHOULDER_1/4-20_TRILOB

Note: Shoulder, 1/4-20 Tri-lobe

$4.99

$

In Stock, Qty 20+

0

- -

RedMax 115935927

Note: OPERATOR MANUAL ENGLISH

$

$

Currently unavailable

- -

RedMax 115935931

Note: OPERATOR MANUAL FRENCH

$

$

Currently unavailable

- -

RedMax 115935946

Note: OPERATOR MANUAL SPANISH

$

$

Currently unavailable

- -

RedMax 591101515

Note: IPL (REPLACEMENT PARTS)

$

$

Currently unavailable
