CV980-2013 - Kohler Command PRO Engine, Made for Toro, 35hp, 26kW Fuel System 8-62-2 CV940-1000 Parts Diagram

Command PRO Engine, Made for Toro, 35hp, 26kW

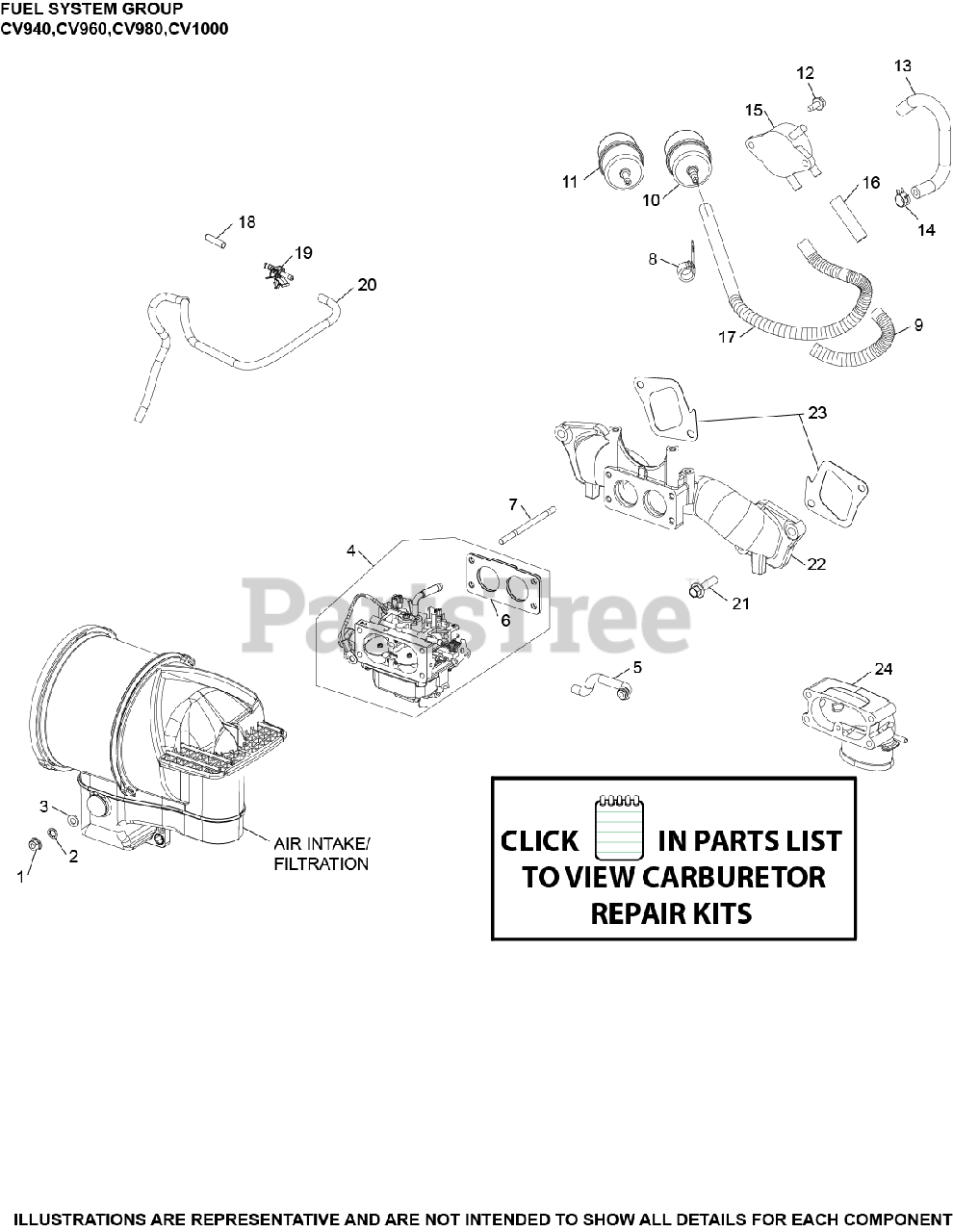

Fuel System 8-62-2 CV940-1000 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

3

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

4

Kohler 62 853 08-S

KIT, CARBURETOR

$433.99

$

Usually ships in 2-5 days

0

5

Kohler 62 326 09-S

HOSE, CARBURETOR VENT

$8.49

$

Usually ships in 2-5 days

0

6

Kohler 24 041 60-S

GASKET, CARBURETOR - USE 24 041 82-S
(Superseded to 24 041 81-S)

$7.99

$

In Stock, Qty 10

0

7

Kohler M-629095-S

STUD,M6X1.0X96

$3.99

$

Usually ships in 2-5 days

0

8

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, Qty 5

0

9

Kohler 25 431 18-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

In Stock, only 1 left!

0

9

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.49

$

Usually ships in 2-5 days

0

11

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

12

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

13

Kohler 62 111 01-S

HOSE, FUEL-LOW PERMEATION

$

$

Not available

14

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

15

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, only 2 left!

0

16

Kohler 41 353 15-S

LINE, FUEL 2" PUMP-FILTER

$3.99

$

Usually ships in 2-5 days

0

17

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 7

0

18

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

19

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

20

Kohler 25 326 28-S

HOSE, EVAPORATIVE

$4.49

$

In Stock, Qty 6

0

21

Kohler M-851030-S

SCREW, FLG M8X1.25X30

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 62 164 07-S

KIT, INTAKE MANIFOLD

$243.99

$

Usually ships in 2-5 days

0

23

Kohler 62 041 13-S

GASKET, INTAKE MANIFOLD

$14.99

$

Usually ships in 2-5 days

0

24

Kohler 24 054 39-S

KIT, ELBOW

$153.99

$

Usually ships in 2-5 days

0
