CV980-2013 - Kohler Command PRO Engine, Made for Toro, 35hp, 26kW Crankcase 2-62-1 CV940-1000 Parts Diagram

Command PRO Engine, Made for Toro, 35hp, 26kW

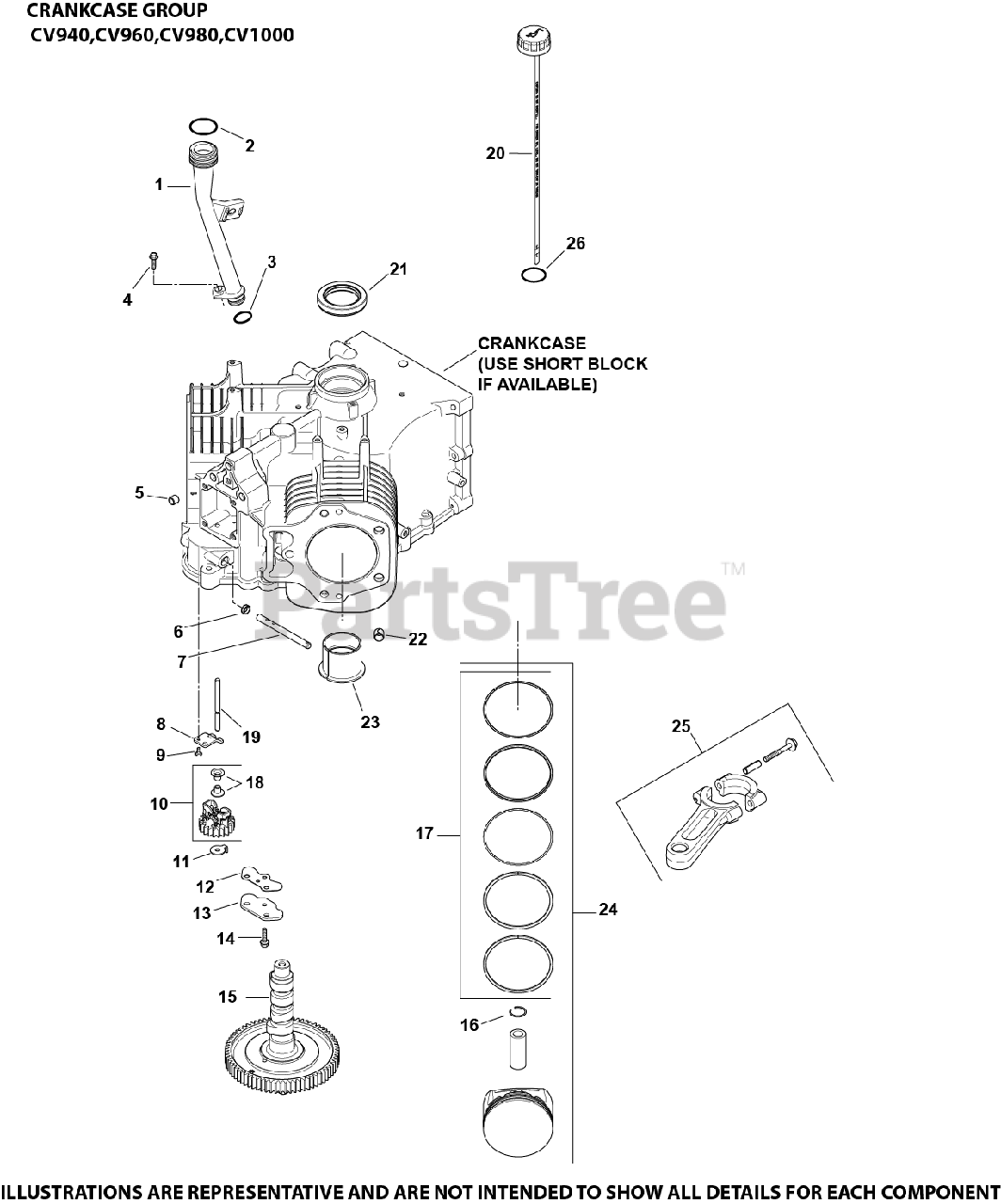

Crankcase 2-62-1 CV940-1000 Parts Diagram

  • Title

1

Kohler 62 123 08-S

KIT,OIL FILL TUBE

$18.99

$

Usually ships in 2-5 days

0

2

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, Qty 9

0

3

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 11

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

5

Kohler 15 380 01-S

PIN

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 10

0

7

Kohler 62 144 06-S

SHAFT, GOVERNOR CROSS

$24.99

$

In Stock, only 1 left!

0

8

Kohler 62 471 01-S

YOKE, GOVERNOR

$2.99

$

In Stock, only 1 left!

0

9

Kohler 28 086 05-S

SCREW, HEX HEAD POLY-LOK -USE 25 086 143
(Superseded to 25 086 143-S)

$7.99

$

Usually ships in 2-5 days

0

10

Kohler 25 310 08-S

GOVERNOR GEAR ASSEMBLY USE 25 310 09-S
(Superseded to 25 310 09-S)

$13.99

$

In Stock, only 4 left!

0

11

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

12

Kohler 62 041 24-S

GASKET, LIFTER FEED COVER

$2.99

$

Usually ships in 2-5 days

0

13

Kohler 62 096 29-S

KIT, COVER, LIFTER FEED

$6.99

$

Usually ships in 2-5 days

0

14

Kohler M-551020-S

SCREW, HVY FLG M5X0.8X20
(Superseded to 25 086 776-S)

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 62 010 09-S

KIT, CAMSHAFT USE 62 010 12-S
(Superseded to 62 010 12-S)

$

$

Not available

16

Kohler 62 018 04-S

RETAINER, PISTON PIN

$2.99

$

In Stock, only 3 left!

0

17

Kohler 62 108 07-S

RING, SET PISTON (STD)

$33.99

$

In Stock, Qty 6

0

18

Kohler 62 380 02-S

PIN, GOVERNOR REGULATING

$2.99

$

In Stock, only 2 left!

0

19

Kohler 62 144 01-S

SHAFT, GOVERNOR GEAR
(Superseded to 62 144 17-S)

$2.99

$

In Stock, only 1 left!

0

20

Kohler 62 038 05-S

DIPSTICK ASSEMBLY

$28.99

$

Usually ships in 2-5 days

0

21

Kohler 62 032 21-S

SEAL, OIL
(Superseded to 25 032 17-S)

$9.99

$

In Stock, only 1 left!

0

22

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

24

Kohler 62 874 17-S

KIT, PISTON (STD) (See Kohler Note)

$141.99

$

In Stock, only 2 left!

0

24

Kohler 62 874 06-S

KIT, PISTON ASSEMBLY (.25)
(Superseded to 62 874 18-S)

$141.99

$

Usually ships in 2-5 days

0

24

Kohler 62 874 07-S

KIT, PISTON ASSEMBLY (.50)

$343.99

$

Usually ships in 2-5 days

0

25

Kohler 62 067 13-S

CONNECTING ROD ASSEMBLY

$92.99

$

In Stock, only 2 left!

0

26

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 2 left!

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2513960-S

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

Note: NOT ILLUSTRATED

$3.49

$

In Stock, only 2 left!

0

25086129-S

Kohler 25 086 129-S

SCREW,HEX FLNGE

Note: NOT ILLUSTRATED

$2.99

$

In Stock, Qty 16

0

M-641060-S

Kohler M-641060-S

NUT, FLG M6X1.0

Note: NOT ILLUSTRATED

$4.49

$

In Stock, Qty 11

0
