CV980-2006 - Kohler Command PRO Engine, Basic Version, 35hp, 26kW 08 Fuel System Parts Diagram

Command PRO Engine, Basic Version, 35hp, 26kW

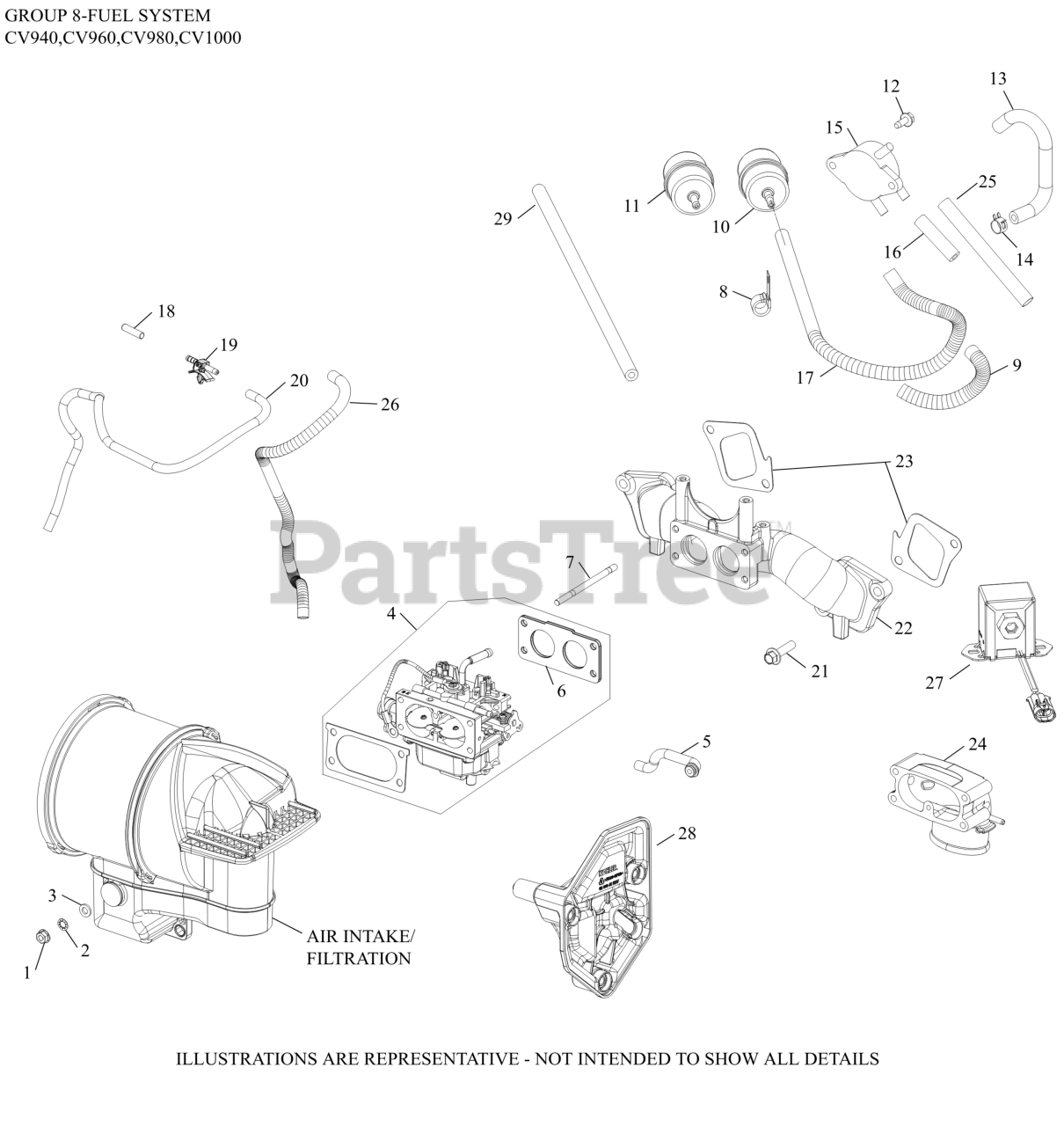

08 Fuel System Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

2

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

3

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

4

Kohler 62 853 08-S

KIT,CARB (KEIHIN)

$433.99

$

Usually ships in 2-5 days

0

5

Kohler 62 326 09-S

HOSE, CARBURETOR VENT

$8.49

$

Usually ships in 2-5 days

0

6

Kohler 24 041 81-S

GASKET, CARBURETOR

$7.99

$

In Stock, Qty 10

0

7

Kohler 25 072 26-S

STUD
(Superseded to 25 072 47-S)

$3.99

$

Usually ships in 2-5 days

0

8

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

In Stock, only 2 left!

0

9

Kohler 25 431 18-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

In Stock, only 1 left!

0

11

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

13

Kohler 62 111 01-S

HOSE, FUEL-LOW PERMEATION

$

$

Not available

14

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

15

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, only 2 left!

0

16

Kohler 41 353 15-S

LINE, FUEL 2" PUMP-FILTER

$3.99

$

Usually ships in 2-5 days

0

17

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 7

0

18

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

19

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

20

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"- (#24326143S)
(Superseded to 24 326 143-S)

$5.49

$

In Stock, only 1 left!

0

21

Kohler M-851030-S

SCREW, FLG M8X1.25X30

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 62 164 17-S

KIT, INTAKE MANIFOLD

$231.99

$

Usually ships in 2-5 days

0

23

Kohler 62 041 13-S

GASKET, INTAKE MANIFOLD

$14.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 49-S

KIT, FLOAT REPAIR

$135.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 50-S

KIT, SOLENOID VALVE REPAIR

$217.99

$

In Stock, only 1 left!

0

NI

Kohler 24 757 51-S

KIT, OVERHAUL REPAIR

$202.99

$

Usually ships in 2-5 days

0

NI

Kohler 62 755 10-S

KIT, HIGH ALTITUDE (4,000 - 8,000 FT)

$36.99

$

Usually ships in 2-5 days

0

NI

Kohler 62 755 26-S

KIT, HIGH ALTITUDE (ABOVE 8000')

$53.99

$

Usually ships in 2-5 days

0
