CV980-0002 - Kohler Command PRO Engine, Basic Version, 35hp, 26kW 06 Blower Housing Parts Diagram

Command PRO Engine, Basic Version, 35hp, 26kW

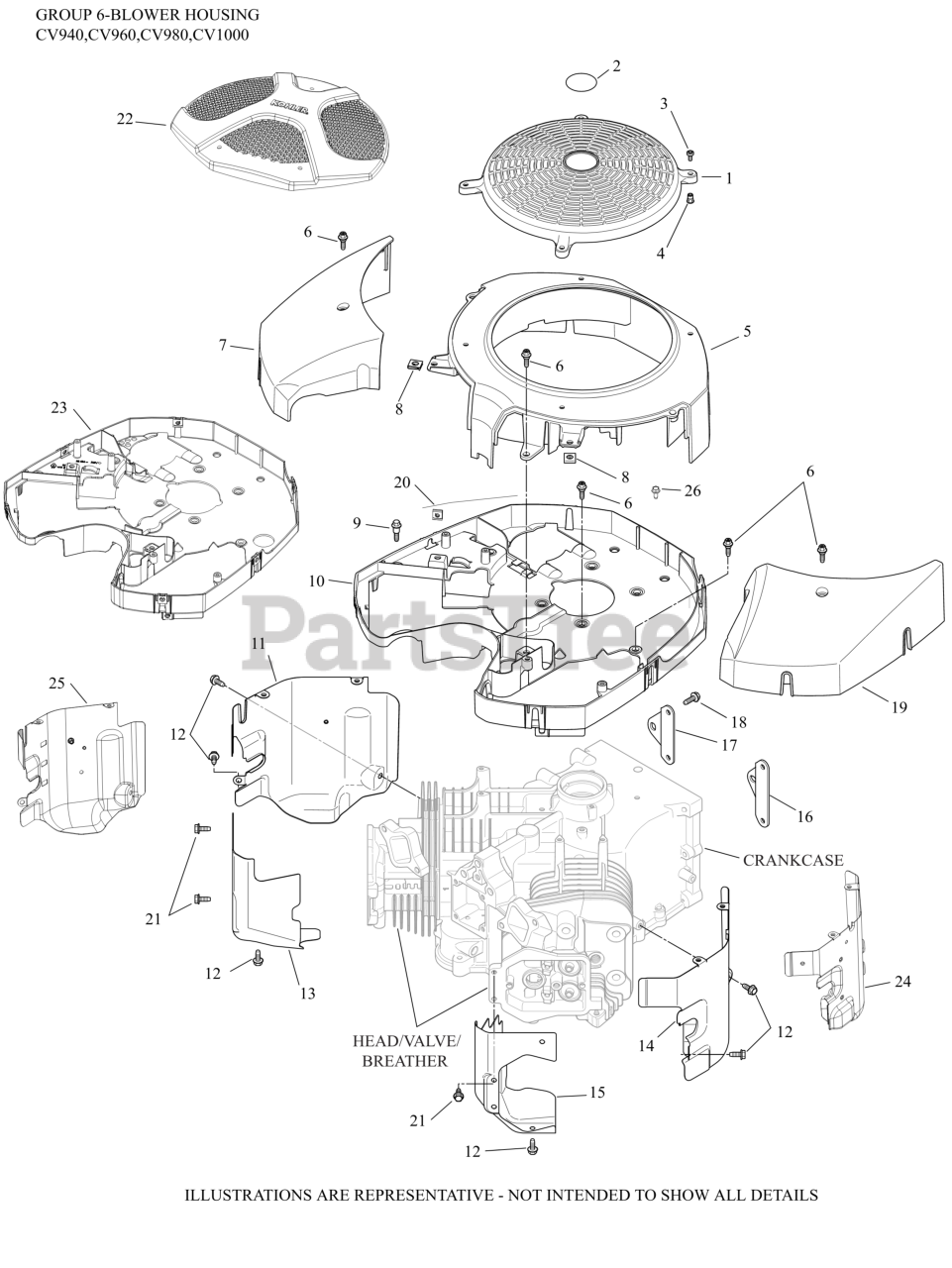

06 Blower Housing Parts Diagram

  • Title

1

Kohler 62 755 01-S

KIT, FIXED GUARD

$58.99

$

In Stock, only 1 left!

0

3

Kohler 24 086 35-S

SCREW, LBD SCKT PAN M5X0.8X10

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 332 19-S

INSERT, THREADED (M5)

$3.49

$

In Stock, Qty 5

0

5

Kohler 62 027 05-S

HOUSING, BLOWER-USE 62 027 07-S
(Superseded to 62 027 07-S)

$44.99

$

In Stock, only 1 left!

0

6

Kohler 62 086 10-S

SCREW, SHD THD FRM

$2.99

$

In Stock, only 4 left!

0

7

Kohler 62 424 08-S

SHROUD, #1 CYLINDER
(Superseded to 62 424 12-S)

$25.99

$

Usually ships in 2-5 days

0

8

Kohler 25 154 37-S

CLIP, BAFFLE MOUNTING

$2.49

$

In Stock, Qty 12

0

9

Kohler 20 086 06-S

SCREW, SHD THD FRM M6X1X26

$3.99

$

In Stock, Qty 15

0

13

Kohler 62 063 11-S

BAFFLE, VALLEY #1 SIDE

$115.99

$

Usually ships in 2-5 days

0

14

Kohler 62 063 17-S

BAFFLE CYL BARREL #2 SIDE

$24.99

$

Usually ships in 2-5 days

0

15

Kohler 62 063 16-S

BAFFLE VALLEY #2 SIDE

$40.99

$

Usually ships in 2-5 days

0

16

Kohler 62 445 05-S

STRAP, LIFTING

$13.99

$

Usually ships in 2-5 days

0

19

Kohler 62 424 09-S

SHROUD, #2 CYLINDER-USE 62 424 13-S
(Superseded to 62 424 13-S)

$25.99

$

Usually ships in 2-5 days

0

21

Kohler 25 086 396-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

23

Kohler 62 424 29-S

SHROUD AND CLIP ASSEMBLY

$39.99

$

Usually ships in 2-5 days

0

25

Kohler 62 063 57-S

BAFFLE, BARREL (#1 CYL)

$24.99

$

Usually ships in 2-5 days

0
