CV750-0023 - Kohler Command PRO Engine, Made for Scag, 27hp, 20.1kW Blower Housing & Baffles 6-24-397 Parts Diagram

Command PRO Engine, Made for Scag, 27hp, 20.1kW

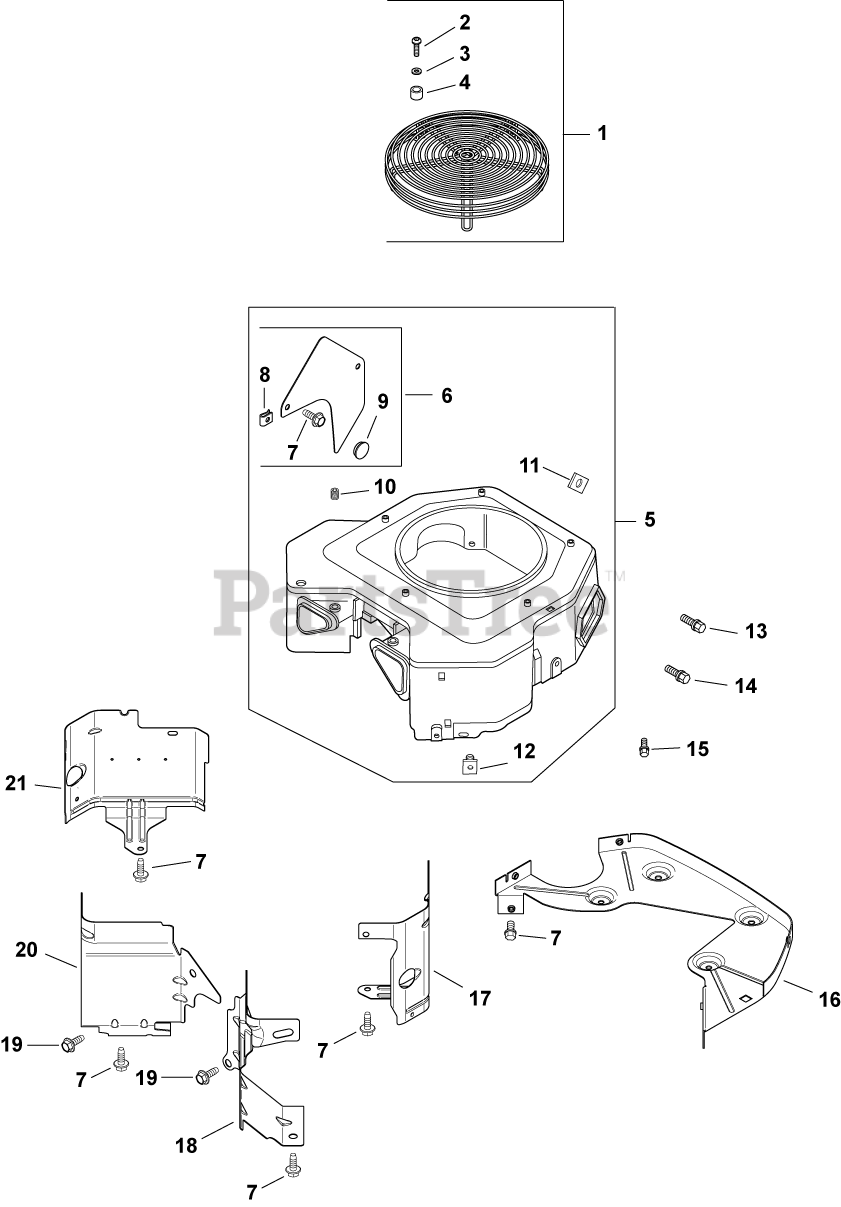

Blower Housing & Baffles 6-24-397 Parts Diagram

  • Title

1

Kohler 24 755 94-S

KIT, GUARD

Note: (includes 2-4)

$86.99

$

In Stock, only 1 left!

0

2

Kohler 24 086 39-S

SCREW, PAN HEAD-USE 25 086 160-S
(Superseded to 25 086 160-S)

$2.99

$

In Stock, Qty 7

0

3

Kohler 24 468 10-S

WASHER, FLAT 7/32"

$2.49

$

In Stock, only 1 left!

0

4

Kohler 24 112 09-S

SPACER USE 25 112 30-S
(Superseded to 25 112 30-S)

$4.49

$

In Stock, only 1 left!

0

5

Kohler 24 027 212-S

KIT, BLOWER HOUSING

Note: (includes 6-12)

$217.99

$

Usually ships in 2-5 days

0

6

Kohler 25 755 20-S

KIT, ACCESS PANEL

Note: (includes 7-9)

$27.99

$

In Stock, Qty 5

0

7

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

8

Kohler 25 154 02-S

CLIP, MOUNTING-USE 25 154 13-S
(Superseded to 25 154 37-S)

$2.49

$

In Stock, Qty 12

0

9

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

10

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

12

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

13

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

$2.49

$

In Stock, Qty 15

0

14

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

15

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

16

Kohler 24 146 53-S

PLATE, BACKING (OIL COOLER)-USE 24 146 5
(Superseded to 24 146 59-S)

$15.99

$

In Stock, only 1 left!

0

17

Kohler 24 063 39-S

BAFFLE,VALLEY #2SIDE(KM)-USE 24 063 88-S
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

18

Kohler 24 063 70-S

BAFFLE, VALLEY #2 SIDE-USE 24 063 94-S
(Superseded to 32 063 02-S)

$9.49

$

Usually ships in 2-5 days

0

19

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

20

Kohler 24 063 59-S

BAFFLE, VALLEY (CH)-USE 24 063 93-S
(Superseded to 32 063 03-S)

$6.49

$

In Stock, only 1 left!

0

21

Kohler 24 063 58-S

BAFFLE, RIGHT BARREL-USE 24 063 85-S
(Superseded to 24 063 85-S)

$17.99

$

In Stock, only 1 left!

0

2515411-S

Kohler 25 154 11-S

CLIP, REPAIR (SPEED NUT)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0

2433201-S

Kohler 24 332 01-S

INSERT, THREADED USE 25 332 19-S
(Superseded to 25 332 19-S)

Note: NOT ILLUSTRATED

$3.49

$

In Stock, Qty 5

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
