CV750-0023 - Kohler Command PRO Engine, Made for Scag, 27hp, 20.1kW Air Intake/Filtration 10-24-225 Parts Diagram

Command PRO Engine, Made for Scag, 27hp, 20.1kW

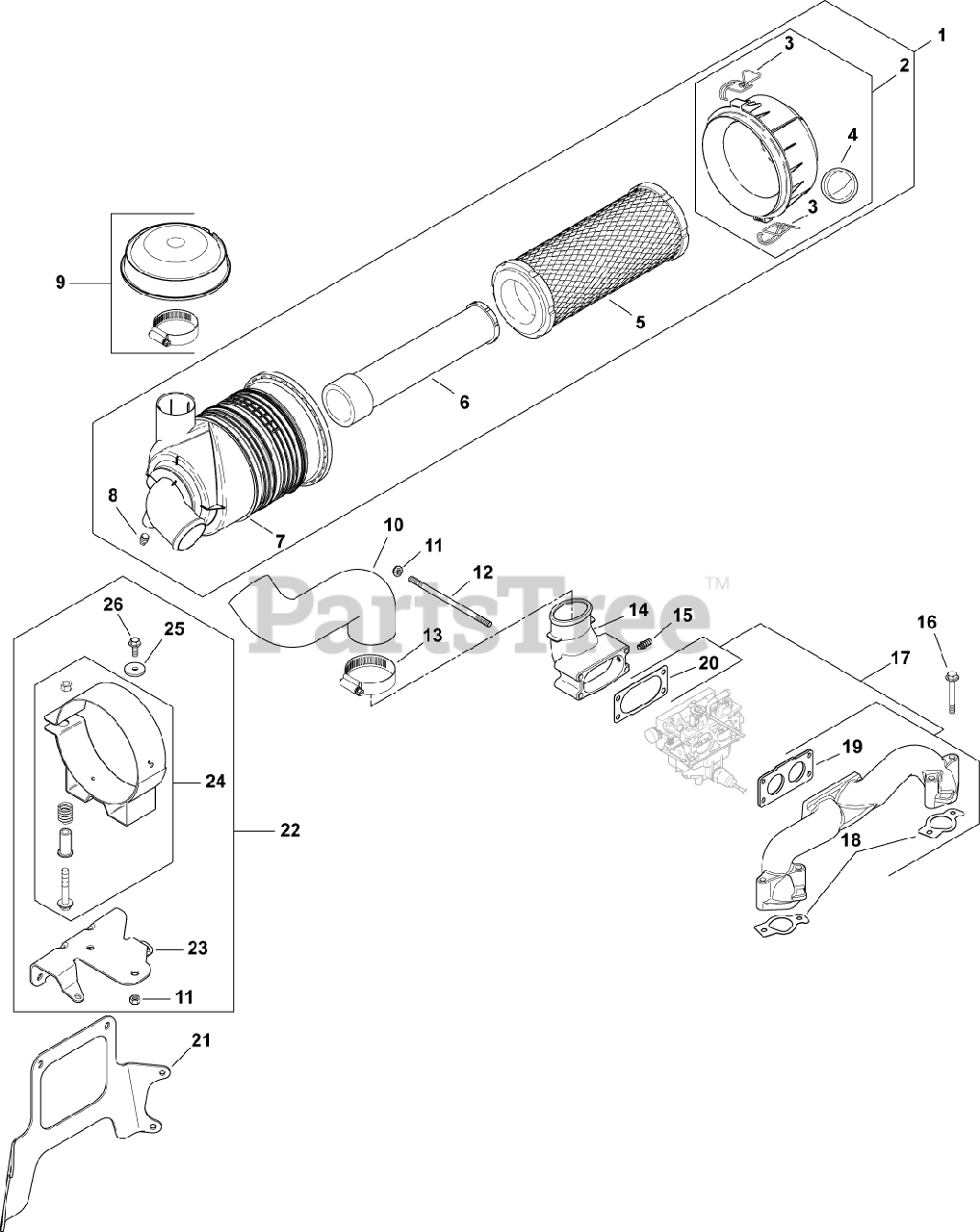

Air Intake/Filtration 10-24-225 Parts Diagram

  • Title

1

Kohler 25 048 11-S

AIR CLNR, CANISTER-USE 25 048 17-S
(Superseded to 25 048 17-S)

Note: (includes 2-8)

$143.99

$

Usually ships in 2-5 days

0

2

Kohler 25 096 06-S

COVER ASSEMBLY, AIR CLEANER

Note: (includes 3,4)

$87.99

$

In Stock, only 1 left!

0

3

Kohler 25 154 05-S

CLIP - USE 62 154 07-S
(Superseded to 62 154 07-S)

$13.99

$

In Stock, Qty 12

0

4

Kohler 24 462 07-S

VALVE, DUST EJECTOR

$21.99

$

In Stock, only 3 left!

0

5

Kohler 25 083 01-S

ELEMENT, AIR FILTER - PRIMARY

$32.99

$

In Stock, Qty 20+

0

6

Kohler 25 083 04-S

ELEMENT, AIR FILTER - SAFETY

$32.99

$

In Stock, Qty 20+

0

7

Kohler 25 081 01-S

HOUSING, HD AIR CLEANER

$140.99

$

In Stock, only 1 left!

0

8

Kohler 25 139 20-S

PLUG, PIPE

$8.99

$

Usually ships in 2-5 days

0

9

Kohler 25 324 02-S

HOOD, AIR CLEANER (5.25)-USE 25 324 04-S
(Superseded to 25 324 04-S)

$49.99

$

Usually ships in 2-5 days

0

10

Kohler 24 326 82-S

HOSE, AIR CLEANER

$19.99

$

Usually ships in 2-5 days

0

11

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 2 left!

0

12

Kohler M-629122-S

STUD,M6X1.0X122

$5.99

$

Usually ships in 2-5 days

0

13

Kohler 25 237 21-S

CLAMP, HOSE

$7.99

$

In Stock, only 1 left!

0

14

Kohler 24 054 19-S

KIT, A/C ELBOW-USE 24 054 39-S
(Superseded to 24 054 39-S)

Note: (inlcudes 13,20)

$153.99

$

Usually ships in 2-5 days

0

15

Kohler 12 294 06-S

FITTING, BARBED - USE 25 294 16-S
(Superseded to 25 294 16-S)

$

$

Not available

16

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

17

Kohler 24 164 88-S

KIT, INTAKE MANIFOLD

Note: (includes 18-20)

$223.99

$

Usually ships in 2-5 days

0

18

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

19

Kohler 24 041 60-S

GASKET, CARBURETOR - USE 24 041 82-S
(Superseded to 24 041 81-S)

$7.99

$

In Stock, Qty 9

0

20

Kohler 24 041 62-S

GASKET,AIR CLEANER ELBOW-USE 24 041 63-S
(Superseded to 24 041 80-S)

$2.49

$

In Stock, only 1 left!

0

21

Kohler 24 126 164-S

BRACKET,MAIN SUPPORT - USE 24 126 227-S
(Superseded to 24 126 227-S)

$277.99

$

Usually ships in 2-5 days

0

22

Kohler 24 126 166-S

BRACKET, AIR CLEANER -USE 24 126 186-S
(Superseded to 24 126 186-S)

Note: (includes 11 [Qty2], 23-26)

$176.99

$

Usually ships in 2-5 days

0

23

Kohler 24 126 165-S

BRACKET, AIR CLEANER-USE 24 126 184-S
(Superseded to 24 126 184-S)

$92.99

$

Usually ships in 2-5 days

0

24

Kohler 25 126 02-S

BRACKET, AIR CLEANER-USE 24 126 191-S
(Superseded to 24 126 191-S)

$62.99

$

Usually ships in 2-5 days

0

25

Kohler X-25-73-S

WASHER, FLAT 1/4" (O.D. 1")

$3.99

$

Usually ships in 2-5 days

0

26

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

2545404-S

Kohler 25 454 04-S

TIE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
