CV745-0003 - Kohler Command PRO EFI Engine, Made for Ariens, 28hp, 20.9kW 03 Lubrication Parts Diagram

Command PRO EFI Engine, Made for Ariens, 28hp, 20.9kW

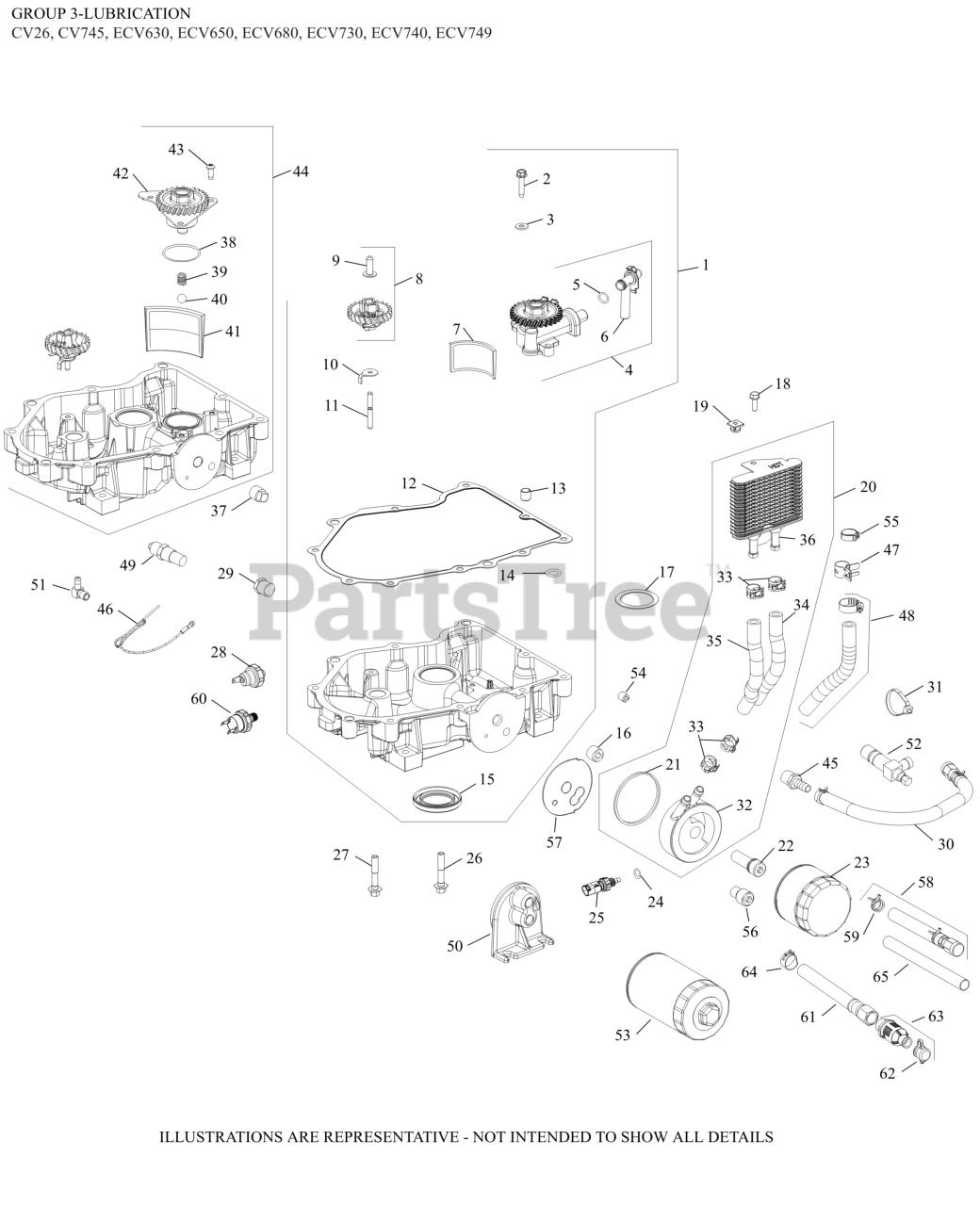

03 Lubrication Parts Diagram

  • Title

1

Kohler 24 199 21-S

KIT, OIL PAN ASSEMBLY - (#2419932S)
(Superseded to 24 199 35-S)

$337.99

$

In Stock, only 1 left!

0

2

Kohler M-645030-S

SCREW-USE 25 086 401-S
(Superseded to 25 086 401-S)

$2.99

$

In Stock, only 2 left!

0

3

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: Pump discontinued order oil pan

$

$

Not available

5

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 8

0

6

Kohler 24 381 11-S

KIT, OIL PICK-UP TUBE-(#DSC)

$

$

Not available

7

Kohler 24 162 26-S

SCREEN, OIL

$17.99

$

In Stock, only 1 left!

0

8

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, Qty 10

0

9

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 8

0

10

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

11

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

12

Kohler 24 041 54-S

KIT,OIL PAN GASKET-USE 24 041 66-S
(Superseded to 24 041 66-S)

$25.99

$

In Stock, Qty 17

0

15

Kohler 25 032 06-S

OIL SEAL

$10.99

$

In Stock, Qty 19

0

16

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

17

Kohler 24 422 05-S

SHIM, THRUST (BLACK .686MM)

$20.99

$

In Stock, only 2 left!

0

18

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

19

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 7

0

20

Kohler 24 594 37-S

KIT,OIL COOLR & DIVERTR ASSY (EFI)

$

$

Not available

21

Kohler 24 153 21-S

O-RING, OIL COOLER

$6.49

$

In Stock, Qty 7

0

22

Kohler 24 136 05-S

NIPPLE, OIL FILTER - (#2413608S)
(Superseded to 24 136 10-S)

$13.99

$

Usually ships in 2-5 days

0

23

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

24

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.49

$

In Stock, only 2 left!

0

25

Kohler 24 418 12-S

SENSOR, TEMPERATURE (EFI)

$64.99

$

Usually ships in 2-5 days

0

26

Kohler 25 086 317-S

SCREW, HEX FLANGE

$2.49

$

In Stock, only 2 left!

0

27

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 7

0

28

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, only 4 left!

0

37

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 3 left!

0

54

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0
