CV740S-0015 - Kohler Command PRO Engine, Made for Cub Cadet, 25hp, 725cc Head/Valve/Breather Parts Diagram

Command PRO Engine, Made for Cub Cadet, 25hp, 725cc

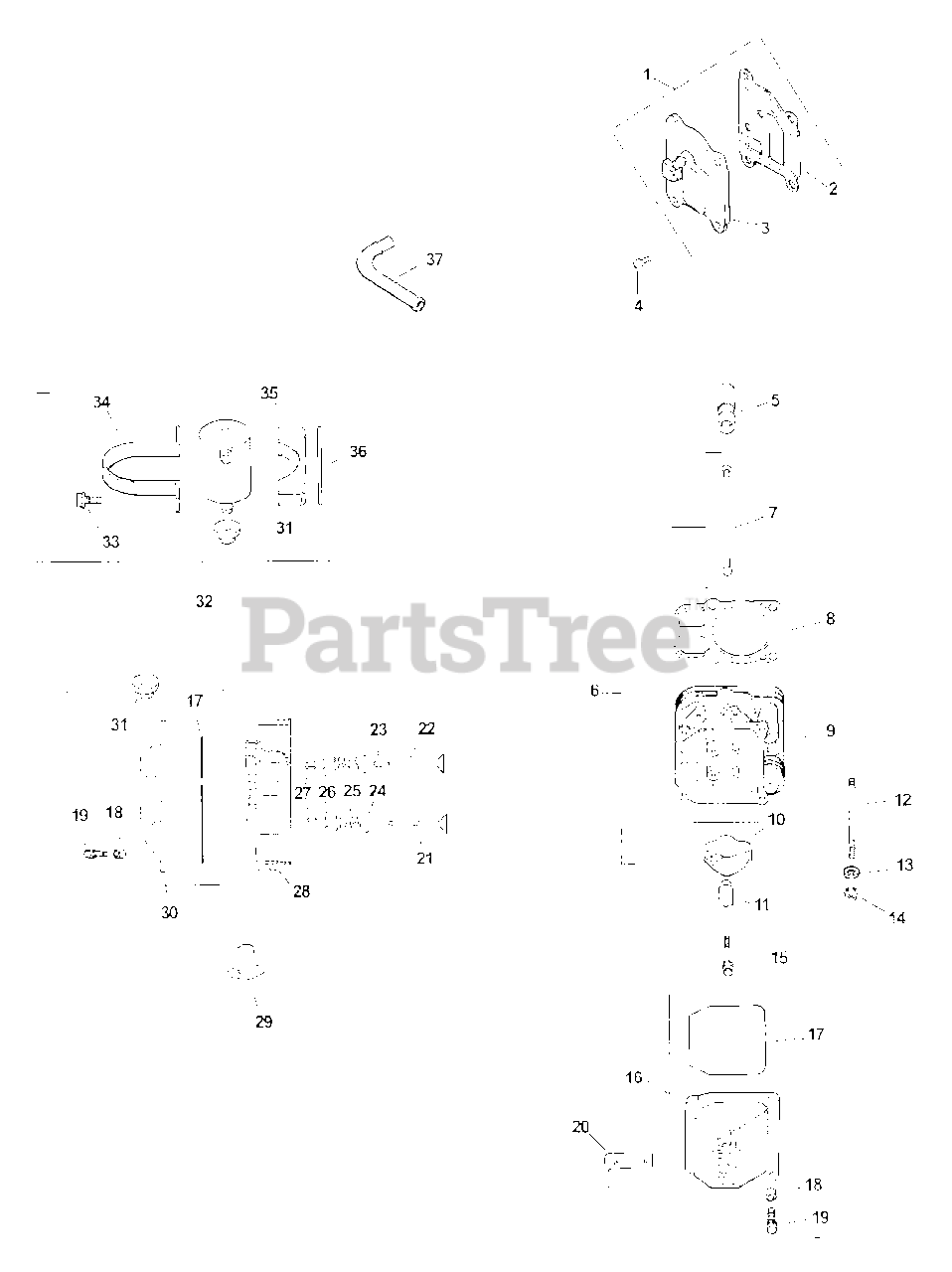

Head/Valve/Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

Breather Cover w/Gasket Kit

$

$

Not available

2

Cub Cadet KH-24-041-50-S

Breather Gasket
(Superseded to KH-24-041-67-S)

$13.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-24-096-87-S

Breather Cover
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-M-645020-S

Hex Flange Screw (M6 x 1.0 x 20)
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-351-01

Valve Lifter
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

6

Cub Cadet KH-24-755-66

Valve Train Kit

$

$

Not available

7

Cub Cadet KH-24-411-05

Push Rod

$

$

Not available

8

Cub Cadet KH-24-041-37-S

Cylinder Head Gasket
(Superseded to KH-24-841-04-S)

$45.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-24-318-72-S

Head Assembly # 2 Cylinder
(Superseded to KH-24-318-116-S)

$

$

Not available

10

Cub Cadet KH-25-186-01

Rocker Arm

$

$

Not available

11

Cub Cadet KH-24-599-01

Rocker Arm Pivot
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-24-072-09-S

Cylinder Head Stud

$6.49

$

In Stock, only 4 left!

0

13

Cub Cadet KH-24-468-16-S

Flat Washer (1/4")

$2.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-100-10-S

Hex Flange Nut (M8 x 1.25)

$4.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-M-0640034

Hex Flange Screw (M6 x 1.0 x 34)

$

$

Not available

16

Cub Cadet KH-24-755-74

Valve Cover Kit
(Superseded to KH-24-755-141-S)

$35.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-153-23-S

O-Ring

$18.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-24-112-08

Spacer

$

$

Not available

19

Cub Cadet KH-M-0651030

Hex Flange Screw (M6 x 1.0 x 30)

$

$

Not available

20

Cub Cadet KH-24-445-01

Lifting Strap
(Superseded to KH-25-445-03-S)

$

$

Not available

21

Cub Cadet KH-24-016-01

Exhaust Valve (Std.)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

Cub Cadet KH-24-016-02

Exhaust Valve (.025)

$

$

Not available

22

Cub Cadet KH-24-017-01

Intake Valve (Std.)

$

$

Not available

Cub Cadet KH-24-017-02

Intake Valve (.025)

$

$

Not available

23

Cub Cadet KH-66-032-05-S

Valve Stem Seal
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 8

0

24

Cub Cadet KH-235011-S

Spring Retainer

$6.49

$

In Stock, only 2 left!

0

25

Cub Cadet KH-24-089-02

Valve Spring

$

$

Not available

26

Cub Cadet KH-12-173-01

Valve Cap Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

27

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, only 2 left!

0

28

Cub Cadet KH-24-318-69-S

Head Assembly # 1
(Superseded to KH-24-318-196-S)

$212.99

$

Usually ships in 3-6 days

0

29

Cub Cadet KH-24-605-01-S

Exhaust Port Liner
(Superseded to KH-24-605-07-S)

$17.99

$

In Stock, only 2 left!

0

30

Cub Cadet KH-24-755-76

Breather Valve Cover Kit
(Superseded to KH-24-755-142-S)

$38.99

$

In Stock, only 1 left!

0

31

Cub Cadet KH-25-313-03-S

Rubber Grommet

$11.99

$

In Stock, only 3 left!

0

32

Cub Cadet KH-24-755-57-S

Breather Seperator Kit
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

33

Cub Cadet KH-M-545016-S

Hex Flange Screw (M5 x .8 x 16)
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

34

Cub Cadet KH-24-445-02

Breather Strap
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

35

Cub Cadet KH-24-126-44

Breather Seperator Bracket

$

$

Not available

36

Cub Cadet KH-24-112-12

Spacer

$

$

Not available

37

Cub Cadet KH-24-326-55-S

Breather Hose
(Superseded to KH-24-326-93-S)

$13.99

$

In Stock, only 1 left!

0
