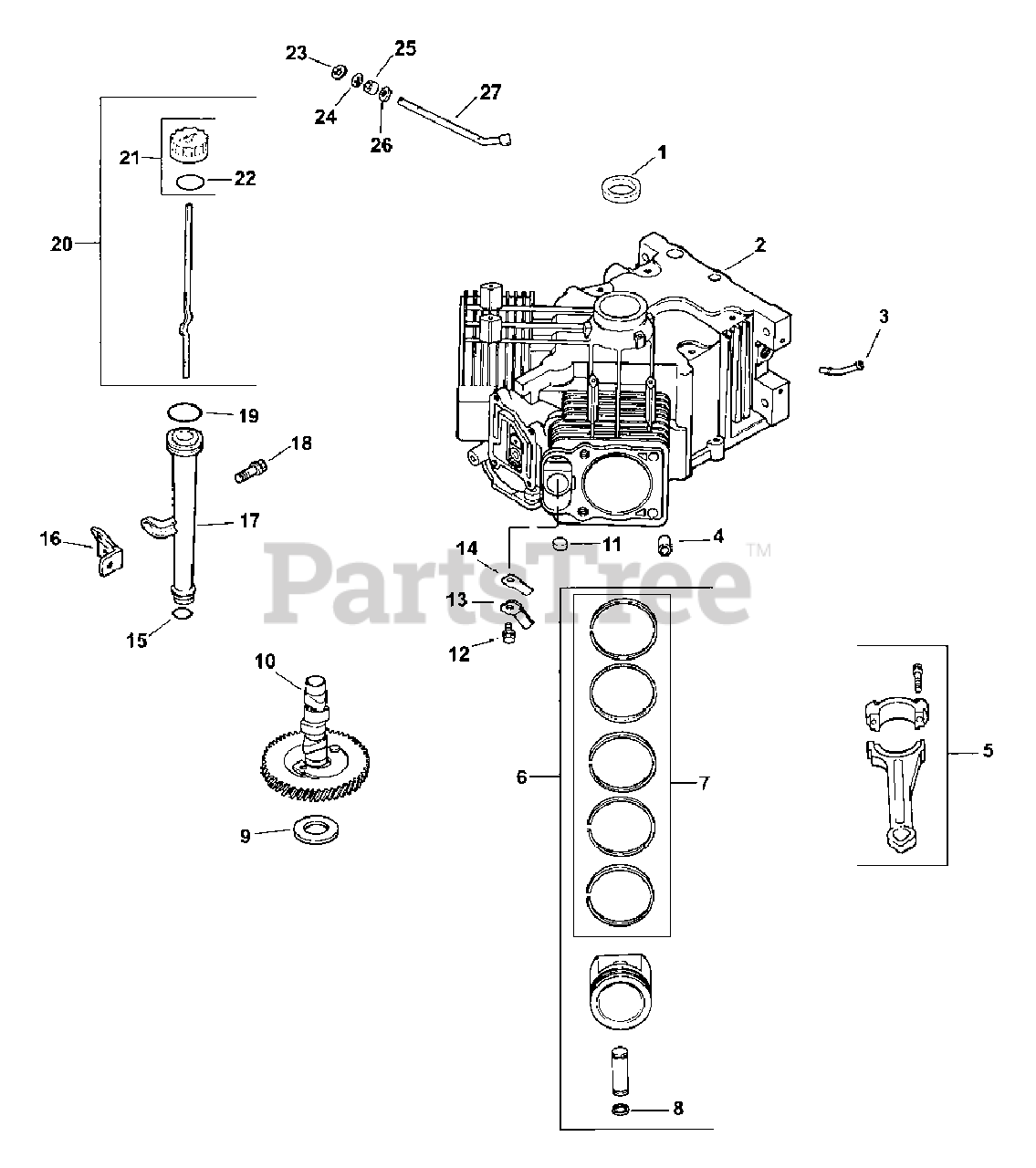

CV740S-0015 - Kohler Command PRO Engine, Made for Cub Cadet, 25hp, 725cc Crankcase Parts Diagram

Command PRO Engine, Made for Cub Cadet, 25hp, 725cc

Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-032-01

Seal, Front Oil
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

2

Crankcase

Crankcase

Note: Use miniblock or replacement engine

$

$

Not available

3

Cub Cadet KH-24-294-13

Fitting

$

$

Not available

4

Cub Cadet KH-24-380-13-S

Locating Pin
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-067-13-S

Connecting Rod (Std.)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-067-14

Connecting Rod (.025)

$

$

Not available

6

Cub Cadet KH-24-874-08-S

Piston w/Ring Set (Std.)
(Superseded to KH-25-874-13-S)

$270.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-24-874-16-S

Piston w/Ring Set (.080)
(Superseded to KH-25-874-07-S)

$261.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-108-04-S

Ring Set (Std. & .080)
(Superseded to KH-24-108-14-S)

$

$

Not available

8

Cub Cadet KH-24-018-01

Piston Pin Retainer
(Superseded to KH-24-018-01-S)

$2.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-12-422-09

Camshaft Shim-Red
(Superseded to KH-12-422-09-S)

Note: As required

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-13

Camshaft Shim-Black
(Superseded to KH-12-422-13-S)

Note: As required

$2.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-07

Camshaft Shim-White
(Superseded to KH-12-422-07-S)

Note: As required

$4.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-08

Camshaft Shim-Blue
(Superseded to KH-12-422-08-S)

Note: As required

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-422-10

Camshaft Shim-Yellow
(Superseded to KH-12-422-10-S)

Note: As required

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-11

Camshaft Shim-Green
(Superseded to KH-12-422-11-S)

Note: As required

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-12

Camshaft Shim-Gray
(Superseded to KH-12-422-12-S)

Note: As required

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-012-18-S

Camshaft
(Superseded to KH-24-012-26-S)

$165.99

$

In Stock, only 1 left!

0

11

Cub Cadet KH-52-139-09

Cup Plug
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-M-0545010

Hex Flange Screw M5 x .8 x 10

$

$

Not available

13

Cub Cadet KH-24-018-04

Reed Retainer

$

$

Not available

14

Cub Cadet KH-24-402-05-S

Breather Reed
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-12-153-01-S

O-Ring

$4.99

$

In Stock, Qty 16

0

16

Cub Cadet KH-24-126-19

Bracket
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-12-123-04

Oil Fill Tube
(Superseded to KH-32-755-04-S)

$

$

Not available

18

Cub Cadet KH-M-545016-S

Hex Flange Screw M5 x .8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-12-153-02-S

O-Ring

$2.49

$

In Stock, Qty 8

0

20

Cub Cadet KH-24-038-04-S

Dipstick Assembly

$19.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-24-755-46

Oil Fill Cap Kit

$

$

Not available

22

Cub Cadet KH-25-153-02-S

Dipstick O-Ring

$2.49

$

In Stock, only 1 left!

0

23

Cub Cadet KH-24-018-09-S

Retainer Ring

$2.49

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-M-931010-S

Plain Washer 9mm

$2.49

$

In Stock, only 2 left!

0

25

Cub Cadet KH-28-032-09-S

Governor Cross Shaft Seal

$3.49

$

In Stock, Qty 6

0

26

Cub Cadet KH-24-468-15-S

Plain Washer 1/4"

$2.49

$

In Stock, Qty 5

0

27

Cub Cadet KH-24-144-38-S

Governor Cross Shaft
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-782-23

Miniblock

Note: Not shown

$1267.99

$

Usually ships in 2-5 days

0

Cub Cadet 01007598P

Replacement Engine
(Superseded to KH-CV742-3016)

Note: Not shown

$4329.99

$

Usually ships in 3-6 days

0
