CV740S-0015 - Kohler Command PRO Engine, Made for Cub Cadet, 25hp, 725cc Air Intake/Filtration Parts Diagram

Command PRO Engine, Made for Cub Cadet, 25hp, 725cc

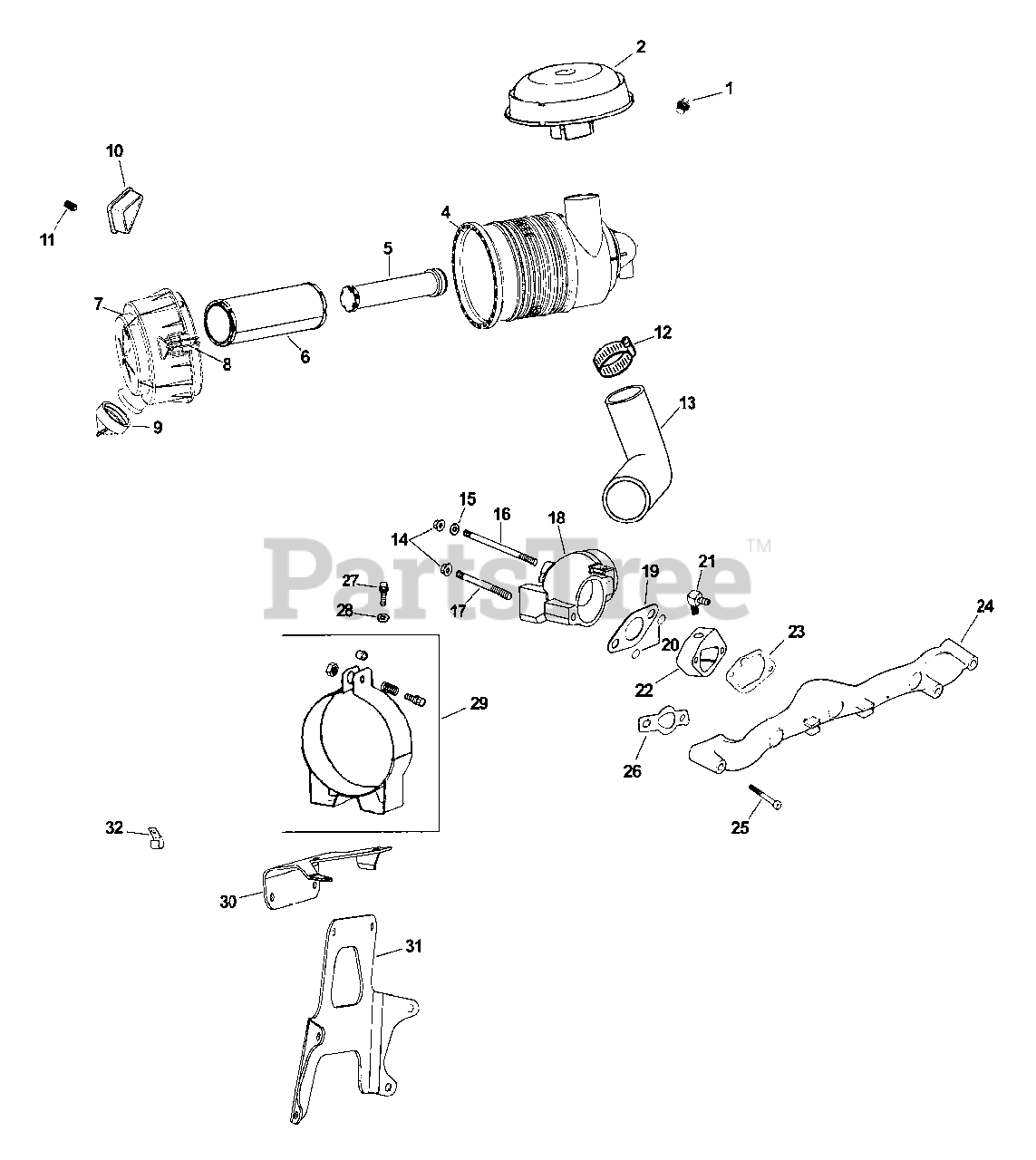

Air Intake/Filtration Parts Diagram

  • Title

1

Cub Cadet KH-25-139-20-S

Pipe Plug

$8.49

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-25-324-02-S

Heavy Duty Air Cleaner Hood
(Superseded to KH-25-324-04-S)

$49.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-25-081-01-S

Heavy Duty Air Cleaner Housing

$140.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-083-04-S

Air Cleaner Element - Safety

$31.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-25-083-01-S

Air Cleaner Element - Primary

$31.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-25-096-06-S

Air Cleaner Cover Assembly

$83.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-25-154-05-S

Clip
(Superseded to KH-62-154-07-S)

$12.99

$

In Stock, Qty 12

0

9

Cub Cadet KH-24-462-07-S

Dust Ejector Valve

$21.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-096-17-S

Blower Housing Cover
(Superseded to KH-24-096-160-S)

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-25-086-91-S

Tapping Screw

$3.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-25-237-07-S

Hose Clamp
(Superseded to KH-25-237-21-S)

$7.99

$

In Stock, only 2 left!

0

13

Cub Cadet KH-24-326-53-S

Air Cleaner Hose

$13.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-M-647060

Hex Lock Nut (M6 x 1.0)

$

$

Not available

15

Cub Cadet KH-25-468-01

Copper Washer (1/4")

$

$

Not available

16

Cub Cadet KH-24-072-10-S

Stud (M6 x 1.0 x 180)

$16.99

$

In Stock, Qty 14

0

17

Cub Cadet KH-M-629140-S

Stud (M6 x 1.0 x 40)

$13.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-24-029-43-S

Elbow Adapter

$199.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-24-041-44-S

Air Cleaner Adapter Gasket

$5.99

$

In Stock, only 1 left!

0

20

Cub Cadet KH-25-153-05-S

O-Ring

$2.49

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-25-155-38-S

Hose Connector

$16.99

$

In Stock, only 3 left!

0

22

Cub Cadet KH-24-029-57-S

Remote Air Cleaner Adapter

$

$

Not available

23

Cub Cadet KH-24-041-14

Air Cleaner Base Gasket

$

$

Not available

24

Cub Cadet KH-24-164-06

Intake Manifold

$

$

Not available

25

Cub Cadet KH-25-086-84-S

Hex Flange Screw (M6 x 1.0 x 55)
(Superseded to KH-25-086-766-S)

$2.49

$

Usually ships in 3-6 days

0

26

Cub Cadet KH-24-041-01

Intake Manifold Gasket
(Superseded to KH-24-041-79-S)

$2.99

$

In Stock, Qty 9

0

27

Cub Cadet KH-M-639016-S

Hex Flange Screw (M6 x 1.0 x 16)

$2.49

$

In Stock, only 2 left!

0

28

Cub Cadet KH-X-25-73-S

Plain Washer (1/4")

$3.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-25-126-02-S

Air Cleaner Bracket
(Superseded to KH-24-126-191-S)

$60.99

$

Usually ships in 2-5 days

0

30

Cub Cadet KH-24-126-104-S

Air Cleaner Mounting Bracket
(Superseded to KH-24-126-184-S)

$92.99

$

Usually ships in 2-5 days

0

31

Cub Cadet KH-24-126-105-S

Main Support Bracket
(Superseded to KH-24-126-171-S)

$63.99

$

Usually ships in 2-5 days

0

32

Cub Cadet KH-47-154-01

Cable Clip
(Superseded to KH-47-154-01-S)

$4.99

$

In Stock, Qty 5

0

Cub Cadet KH-25-113-27-S

Air Cleaner Decal

Note: NOT ILLUSTRATED

$

$

Not available

Cub Cadet KH-25-454-04-S

Wire Tie

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
