CV740-0037 - Kohler Command PRO Engine, Made for Medart, 25hp, 725cc Fuel System 8-24-606 Parts Diagram

Command PRO Engine, Made for Medart, 25hp, 725cc

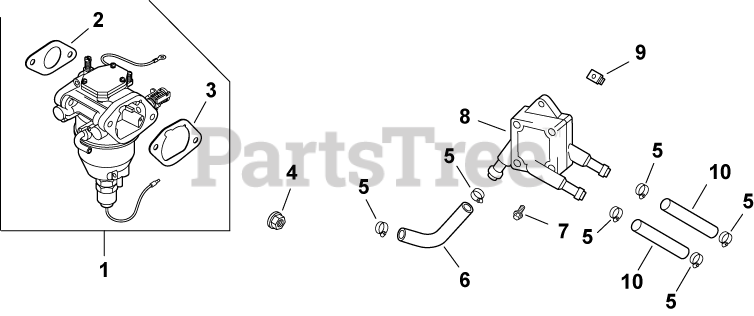

Fuel System 8-24-606 Parts Diagram

  • Title

1

Kohler 24 853 92-S

KIT, CARBURETOR w/GASKETS
(Superseded to 24 853 317-S)

Note: (includes 2,3)

$624.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

4

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

5

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

6

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

7

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

8

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 13

0

9

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 9

0

10

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

2543113-S

Kohler 25 431 13-S

SLEEVE, ANTI-ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

Note: NOT ILLUSTRATED

$10.99

$

In Stock, only 1 left!

0

2475718-S

Kohler 24 757 18-S

KIT, CARBURETOR REPAIR

Note: NOT ILLUSTRATED

$79.99

$

In Stock, only 2 left!

0

2475719-S

Kohler 24 757 19-S

KIT, REPAIR SERVICE CHOKE

Note: NOT ILLUSTRATED

$153.99

$

In Stock, only 1 left!

0

2475720-S

Kohler 24 757 20-S

KIT, REPAIR SERVICE GASKET

Note: NOT ILLUSTRATED

$62.99

$

In Stock, only 1 left!

0

2475721-S

Kohler 24 757 21-S

KIT, ACC PUMP W/GASKETS

Note: NOT ILLUSTRATED

$120.99

$

In Stock, only 1 left!

0

2475722-S

Kohler 24 757 22-S

KIT, REPAIR SOLENOID VALVE

Note: NOT ILLUSTRATED

$217.99

$

In Stock, only 2 left!

0

2423402-S

Kohler 24 234 02-S

BOWL, FLOAT

Note: NOT ILLUSTRATED

$137.99

$

Usually ships in 2-5 days

0
