CV740-0035 - Kohler Command PRO Engine, Made for Ferris, 25hp, 725cc 05 Ignition/Charging Parts Diagram

Command PRO Engine, Made for Ferris, 25hp, 725cc

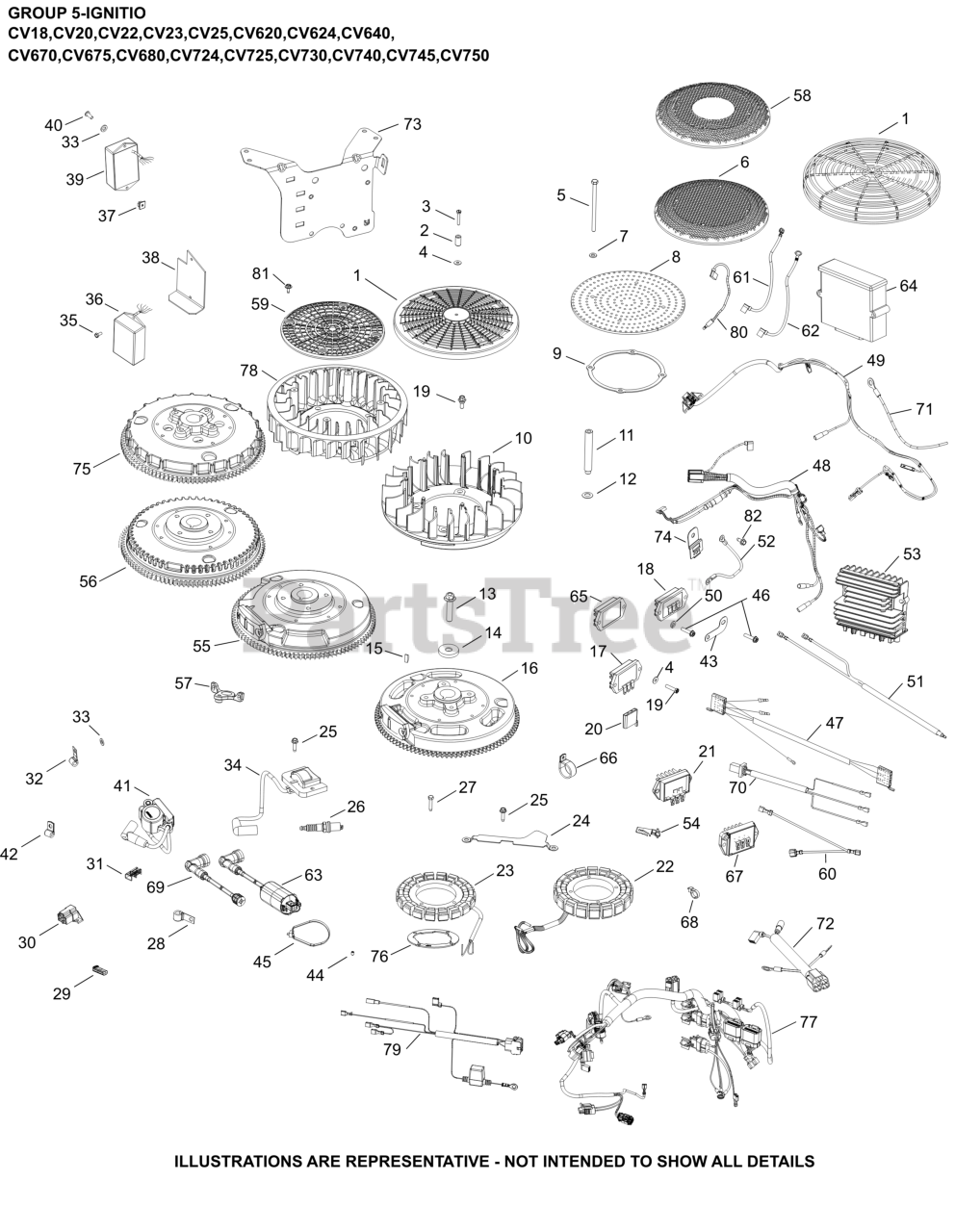

05 Ignition/Charging Parts Diagram

  • Title

5

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, only 4 left!

0

6

Kohler 24 162 41-S

SCREEN, GRASS

$24.99

$

In Stock, only 1 left!

0

7

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, only 3 left!

0

9

Kohler 25 141 08-S

RING, SUPPORT

$5.49

$

Usually ships in 2-5 days

0

10

Kohler 24 157 12-S

FAN

$22.99

$

In Stock, only 1 left!

0

11

Kohler 24 112 14-S

SPACER

$18.99

$

In Stock, only 1 left!

0

12

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

In Stock, only 3 left!

0

13

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45-USE 25 086 361-S
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

14

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

15

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 7

0

16

Kohler 24 025 58-S

FLYWHEEL ASSEMBLY (LW)

$

$

Not available

18

Kohler 25 403 37-S

REGULATOR/RECT 12/15A (41 403 10-S)

$

$

Not available

20

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

23

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 15

0

25

Kohler 25 086 472-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

26

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

27

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

28

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

33

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

34

Kohler 24 584 36-S

MODULE,IGNITION

Note: BEFORE MDI CONVERSION

$102.99

$

Usually ships in 2-5 days

0

34

Kohler 25 584 14-S

MODULE,MDI

Note: AFTER MDI CONVERSION & Before S/N 502570001

$91.99

$

In Stock, only 2 left!

0

34

Kohler 25 584 26-S

MODULE, MDI

Note: AFTER MDI CONVERSION & After S/N 5025700001

$58.99

$

Usually ships in 2-5 days

0

39

Kohler 24 584 31-S

MODULE,DSAM CONTROL-DISC-SEE PB 259
(Superseded to 24 755 172-S)

$

$

Not available

41

Kohler 24 584 52-S

MODULE,DSAI IGNITION-DISC-SEE PB 259
(Superseded to 24 584 89-S)

$

$

Not available

41

Kohler 24 584 63-S

MODULE,DSAI IGNITION-DISC-SEE PB 259
(Superseded to 24 584 89-S)

$

$

Not available

41

Kohler 24 584 89-S

MODULE,DSAI IGNITION-DISC-SEE PB 259
(Superseded to 24 755 172-S)

$

$

Not available

42

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

44

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

45

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

46

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

48

Kohler 24 176 127-S

HARNESS, WIRING-USE 24 176 185-S
(Superseded to 24 176 185-S)

Note: Before S/N 4020900011

$81.99

$

Usually ships in 2-5 days

0

48

Kohler 24 176 169-S

HARNESS, WIRING ASSEMBLY

Note: After S/N 4020900011

$46.99

$

Usually ships in 2-5 days

0

50

Kohler 25 468 30-S

WASHER, LOCK

$2.49

$

Usually ships in 2-5 days

0

51

Kohler 25 518 39-S

LEAD, DUPLEX ASSEMBLY

$15.99

$

Usually ships in 2-5 days

0

52

Kohler 24 518 43-S

LEAD

$2.99

$

Usually ships in 2-5 days

0

68

Kohler 25 454 04-S

TIE

$3.49

$

Usually ships in 2-5 days

0

NI

Kohler 24 755 162-S

KIT,DSAI CONVERSION-DISC-SEE PB 259
(Superseded to 24 755 172-S)

$

$

Not available

NI

Kohler 25 707 03-S

KIT,MDI MODULE CONVERSION-SEE PB 259

$159.99

$

In Stock, only 1 left!

0
