CV740-0028 - Kohler Command PRO Engine, Made for Excel Hustler, 25hp, 725cc Air Intake/Filtration 10-24-216 Parts Diagram

Command PRO Engine, Made for Excel Hustler, 25hp, 725cc

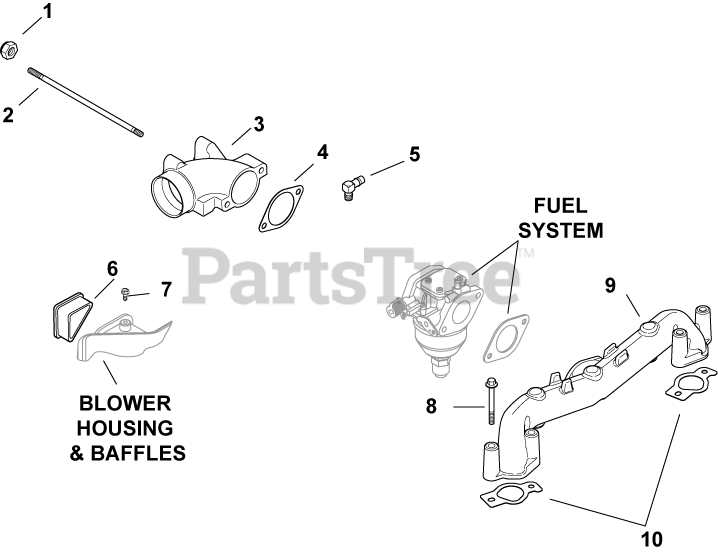

Air Intake/Filtration 10-24-216 Parts Diagram

  • Title

1

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 3 left!

0

2

Kohler 24 072 10-S

STUD, M6X1.0X180

$17.99

$

In Stock, Qty 14

0

3

Kohler 24 054 16-S

ELBOW, AIR CLEANER

$140.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

5

Kohler 25 155 38-S

CONNECTOR, HOSE

$16.99

$

In Stock, only 3 left!

0

6

Kohler 24 096 17-S

COVER, BLOWER HOUSING USE 24 096 160-S
(Superseded to 24 096 160-S)

$4.99

$

In Stock, only 2 left!

0

7

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

8

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

9

Kohler 24 164 06-S

MANIFOLD, INTAKE

$222.99

$

Usually ships in 2-5 days

0

10

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

2513926-S

Kohler 25 139 26-S

PLUG, CAP

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 5

0
