CV740-0027 - Kohler Command PRO Engine, Made for Snapper, 25hp, 725cc Ignition/Electrical 5-24-955 Parts Diagram

Command PRO Engine, Made for Snapper, 25hp, 725cc

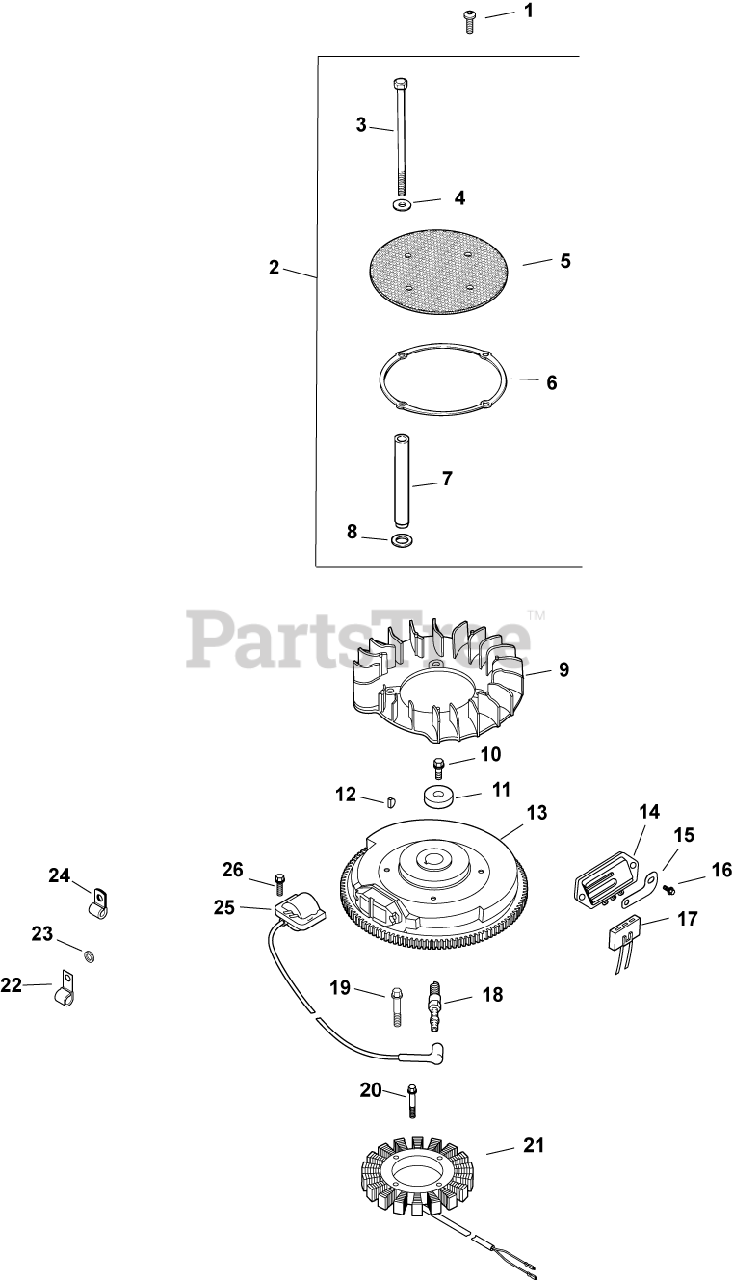

Ignition/Electrical 5-24-955 Parts Diagram

  • Title

1

Kohler 25 086 55-S

SCREW, SOCKET TRUSS HD CAP
(Superseded to M-603100-S)

$4.49

$

In Stock, only 4 left!

0

2

Kohler 24 755 79-S

KIT, CHOPPER SCREEN

Note: (includes 3-8)

$130.99

$

Usually ships in 2-5 days

0

3

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, only 4 left!

0

4

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, only 3 left!

0

5

Kohler 24 162 41-S

SCREEN, GRASS

$24.99

$

In Stock, only 1 left!

0

6

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$5.49

$

Usually ships in 2-5 days

0

7

Kohler 24 112 14-S

SPACER

$18.99

$

In Stock, only 1 left!

0

8

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

In Stock, only 3 left!

0

9

Kohler 24 157 12-S

FAN

$22.99

$

In Stock, only 1 left!

0

10

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

11

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$

$

Not available

12

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 9

0

13

Kohler 24 025 58-S

FLYWHEEL ASSEMBLY (LW)

$

$

Not available

14

Kohler 41 403 10-S

REGULATOR/RECTIFIER
(Superseded to 25 403 37-S)

$

$

Not available

15

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

16

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

17

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

18

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

19

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

20

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 5

0

22

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

23

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

24

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

25

Kohler 24 584 63-S

MODULE, SPARK ADV (DSAI)-USE 24 584 89-S
(Superseded to 24 584 89-S)

$

$

Not available

26

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

2417616-S

Kohler 24 176 16-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$127.99

$

Usually ships in 2-5 days

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

24176132-S

Kohler 24 176 132-S

HARNESS, DSAI WIRING

Note: NOT ILLUSTRATED

$34.99

$

In Stock, only 1 left!

0
