CV740-0027 - Kohler Command PRO Engine, Made for Snapper, 25hp, 725cc Exhaust 11-24-152 Parts Diagram

Command PRO Engine, Made for Snapper, 25hp, 725cc

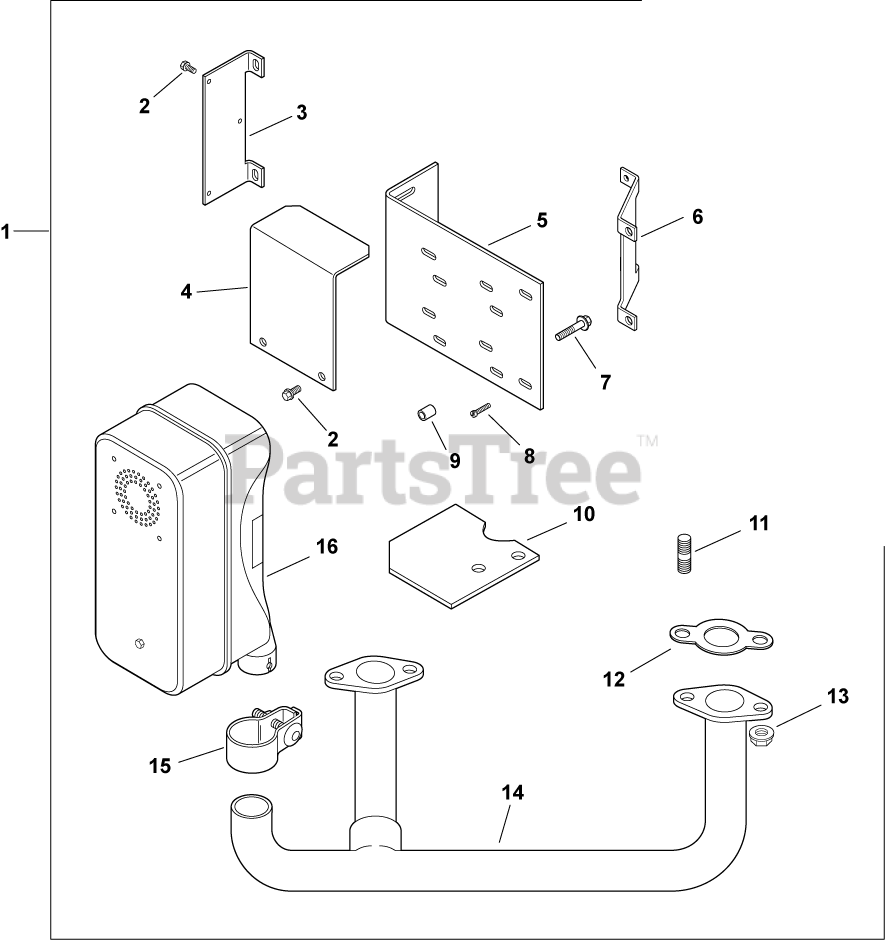

Exhaust 11-24-152 Parts Diagram

  • Title

1

Kohler 24 786 13-S

KIT, MUFFLER/EXHAUST MNFLD

Note: (includes 2-16)

$430.99

$

Usually ships in 2-5 days

0

2

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

3

Kohler 24 126 27-S

BRACKET, MUFFLER

$174.99

$

Usually ships in 2-5 days

0

4

Kohler 24 265 04-S

DEFLECTOR, HEAT

$34.99

$

Usually ships in 2-5 days

0

5

Kohler 24 126 26-S

BRACKET, MUFFLER

$78.99

$

Usually ships in 2-5 days

0

6

Kohler 24 126 112-S

BRACKET, MUFFLER

$39.99

$

Usually ships in 2-5 days

0

7

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

8

Kohler 24 086 25-S

SCREW,WSH HD TAP 1/4-20X1 1/4"

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 24 112 08-S

SPACER

$4.49

$

Usually ships in 2-5 days

0

10

Kohler 24 265 05-S

DEFLECTOR, HEAT

$19.99

$

Usually ships in 2-5 days

0

11

Kohler 25 072 04-S

STUD, EXHAUST (KM)-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 1 left!

0

12

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

13

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 2 left!

0

14

Kohler 24 164 12-S

MANIFOLD, EXHAUST SIDE 1

$145.99

$

Usually ships in 2-5 days

0

15

Kohler 12 237 02-S

CLAMP

$17.99

$

In Stock, only 1 left!

0

16

Kohler 24 068 19-S

MUFFLER USE 24 068 126-S
(Superseded to 24 068 126-S)

$200.99

$

Usually ships in 2-5 days

0
