CV740-0006 - Kohler Command PRO Engine, Made for Husqvarna, 25hp, 725cc Oil Pan/Lubrication 3-24-186 Parts Diagram

Command PRO Engine, Made for Husqvarna, 25hp, 725cc

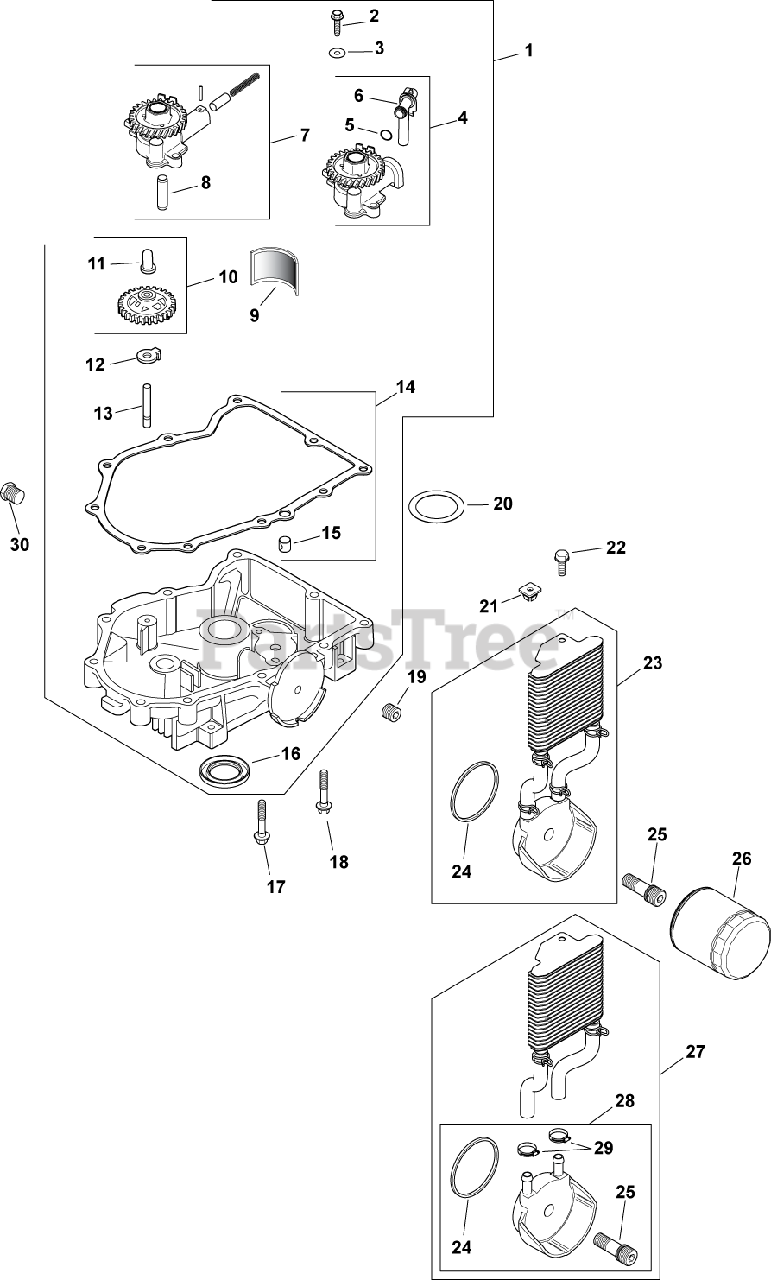

Oil Pan/Lubrication 3-24-186 Parts Diagram

  • Title

1

Kohler 24 755 59-S

OIL PAN W/GASKET KIT-USE 24 755 128-S
(Superseded to 24 755 128-S)

Note: (includes 2, 3, 7-16) (Before S/N 3203100011)

$337.99

$

In Stock, only 1 left!

0

24755128-S

Kohler 24 755 128-S

KIT, OIL PAN W/GASKET USE 24 199 32-S
(Superseded to 24 199 35-S)

Note: (includes 2-6, 9-14) (After S/N 3203100001)

$337.99

$

In Stock, only 1 left!

0

2

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, only 1 left!

0

4

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (includes 5, 6) (After S/N 3229000001)

$

$

Not available

5

Kohler 24 153 01-S

O-RING, OIL PICK-UP

Note: (After S/N 3229000001)

$2.49

$

In Stock, Qty 8

0

6

Kohler 24 381 11-S

KIT, OIL PICK-UP TUBE

Note: (includes 5) (After S/N 3229000001)

$

$

Not available

7

Kohler 24 393 08-S

USE 24 393 37-S OIL PUMP KIT
(Superseded to 24 393 51-S)

Note: (includes 8) (Before S/N 3229000011)

$

$

Not available

8

Kohler 24 123 05-S

USE 24 381 11-S TUBE
(Superseded to 24 381 11-S)

Note: (Before S/N 3229000011)

$

$

Not available

9

Kohler 24 162 26-S

SCREEN, OIL

$17.99

$

In Stock, only 1 left!

0

10

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: (includes 11)

$68.99

$

In Stock, Qty 10

0

11

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 8

0

12

Kohler 52 448 02-S

USE 24 448 01-S LOCKING TAB
(Superseded to 24 448 01-S)

$2.49

$

In Stock, only 2 left!

0

13

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

14

Kohler 24 041 24-S

USE 24 041 54-S GASKET
(Superseded to 24 041 54-S)

Note: Before S/N 3234000011)

$25.99

$

In Stock, Qty 17

0

2404154-S

Kohler 24 041 54-S

KIT,OIL PAN GASKET USE 24 041 66-S
(Superseded to 24 041 66-S)

Note: (includes 13) (After S/N 3234000001)

$25.99

$

In Stock, Qty 17

0

15

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

16

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$10.99

$

In Stock, Qty 20+

0

17

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

Note: (Before S/N 3712400011)

$2.49

$

In Stock, Qty 7

0

18

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

Note: (Before S/N 3712400011)

$2.49

$

In Stock, Qty 7

0

2408617-S

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

Note: (After S/N 3712400001)

$2.49

$

In Stock, Qty 7

0

19

Kohler X-75-32-S

PLUG, PIPE CTSK 3/8" USE 25 139 62-S
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

20

Kohler 24 422 03-S

SHIM, THRUST (GREEN .875MM) - DISCONTINUED

$

$

Not available

21

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

22

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

23

Kohler 24 594 15-S

COOLER, OIL - PHENOLIC-USE 24 594 36-S
(Superseded to 24 594 36-S)

Note: (includes 24)

$220.99

$

Usually ships in 2-5 days

0

24

Kohler 24 153 19-S

USE 24 153 21-S O-RING
(Superseded to 24 153 21-S)

$6.49

$

In Stock, Qty 7

0

25

Kohler 24 136 05-S

NIPPLE, OIL FILTER
(Superseded to 24 136 10-S)

$13.99

$

Usually ships in 2-5 days

0

26

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

27

Kohler 24 594 36-S

KIT, OIL COOLER

Note: (includes 24, 25, 28, 29)

$220.99

$

Usually ships in 2-5 days

0

28

Kohler 24 029 75-S

KIT,OIL FLTR ADPTR (W/DRIP LIP)

Note: (includes 24, 25, 29)

$110.99

$

Usually ships in 2-5 days

0

29

Kohler 25 237 12-S

CLAMP, HOSE-USE 25 237 32-S
(Superseded to 25 237 32-S)

$6.49

$

Usually ships in 2-5 days

0

30

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0
