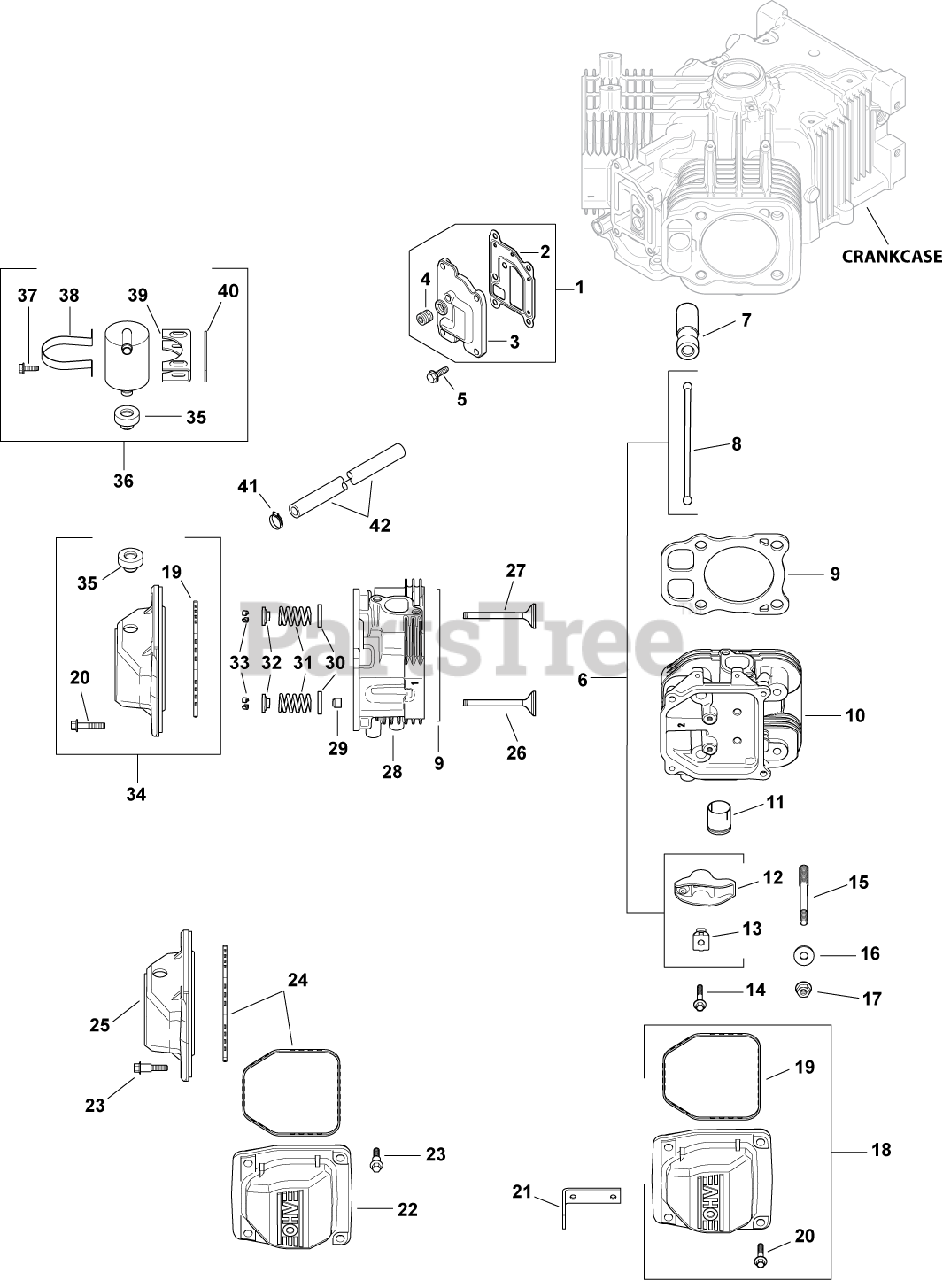

CV740-0006 - Kohler Command PRO Engine, Made for Husqvarna, 25hp, 725cc Head/Valve/Breather 4-24- 218 Parts Diagram

Command PRO Engine, Made for Husqvarna, 25hp, 725cc

Head/Valve/Breather 4-24- 218 Parts Diagram

  • Title

1

Kohler 24 033 03-S

KIT, BREATHER COVER W/GASKET

Note: (includes 2-4)

$32.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 51-S

GASKET, BREATHER-USE 24 041 67-S
(Superseded to 24 041 67-S)

$13.99

$

In Stock, Qty 9

0

3

Kohler 24 096 87-S

COVER, BREATHER -USE 24 096 125-S
(Superseded to 24 033 03-S)

$32.99

$

In Stock, only 1 left!

0

4

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

5

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

6

Kohler 24 755 66-S

KIT, VALVE TRAIN

Note: (includes 8, 12, 13)

$45.99

$

In Stock, only 3 left!

0

7

Kohler 25 351 04-S

LIFTER, HYDRAULIC VALVE-USE 25 351 10-S
(Superseded to 25 351 11-S)

Note: (includes 25 357 14-S)

$23.99

$

In Stock, only 4 left!

0

8

Kohler 24 411 05-S

ROD, PUSH

$5.49

$

In Stock, Qty 9

0

9

Kohler 24 841 03-S

CYL HEAD GASKET KIT-USE 24 841 04-S
(Superseded to 24 841 04-S)

Note: (includes 16 [qty 4], 17 [qty 4], 24 041 01-S, 24 041 49-S, 24 153 27-S)

$45.99

$

In Stock, Qty 20+

0

10

Kohler 24 318 72-S

HEAD, ASSEM CYLINDER #2 -USE 24 318 116-
(Superseded to 24 818 06-S)

Note: (Before S/N 3807800011)

$239.99

$

Usually ships in 2-5 days

0

24318116-S

Kohler 24 318 116-S

KIT, CYLINDER HEAD #2
(Superseded to 24 818 06-S)

Note: (After S/N 3807800001)

$239.99

$

Usually ships in 2-5 days

0

11

Kohler 24 605 01-S

LINER, EXHAUST PORT-USE 24 605 07-S
(Superseded to 24 605 07-S)

$17.99

$

In Stock, only 2 left!

0

12

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

0

13

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

14

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

15

Kohler 24 072 09-S

STUD, M8X1.25

$6.49

$

In Stock, only 4 left!

0

16

Kohler 24 468 16-S

WASHER, FLAT 8.6 MM

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 24 100 10-S

NUT, FLG M8X1.25

$4.49

$

Usually ships in 2-5 days

0

18

Kohler 24 755 141-S

KIT, VALVE COVER-PLAIN

Note: (includes 19 [qty 1], 20 [qty 4]) (After S/N 333200001)

$35.99

$

In Stock, only 2 left!

0

19

Kohler 24 153 28-S

O-RING (YELLOW) -USE 24 153 30-S
(Superseded to 25 153 24-S)

Note: (After S/N 333200001)

$10.99

$

In Stock, Qty 20+

0

20

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

21

Kohler 25 445 01-S

STRAP, LIFTING-USE 25 445 03-S
(Superseded to 25 445 03-S)

$

$

Not available

22

DISCONTINUED

Note: KIT, PLAIN ROCKER COVER (BEFORE S/N 333200011) (TO SERVICE COVER ORDER ITEM 18. TO SERVICE EITHER THE SHOULDER SCREW OR O-RING, ORDER ITEMS 23 [QTY 4] OR 24 [QTY 1])

$

$

Not available

23

Kohler 24 086 32-S

SCREW, SHOULDER

Note: (Before S/N 333200011)

$2.99

$

In Stock, Qty 11

0

24

Kohler 24 153 23-S

O-RING (BLACK)

Note: (Before S/N 33200011)

$18.99

$

In Stock, only 2 left!

0

25

DISCONTINUED

Note: KIT, BREATHER ROCKER COVER (Before S/N 333200011) (TO SERVICE COVER ORDER ITEM 34. TO SERVICE EITHER THE SHOULD SCREW OR O-RING, ORDER ITEMS 23 [QTY 4] OR 24 [QTY 1])

$

$

Not available

26

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, only 4 left!

0

2401602-S

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 3 left!

0

27

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 17

0

2401702-S

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

28

Kohler 24 318 69-S

HEAD, ASSEM CYLINDER #1 -USE 24 318 108-
(Superseded to 24 818 05-S)

Note: (Before S/N 3729100011)

$239.99

$

Usually ships in 2-5 days

0

24318108-S

Kohler 24 318 108-S

KIT, CYLINDER HEAD #1
(Superseded to 24 318 196-S)

Note: (After S/N 3729100001)

$239.99

$

Usually ships in 2-5 days

0

29

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

In Stock, Qty 8

0

30

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

31

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 2 left!

0

32

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 5

0

33

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, only 2 left!

0

34

Kohler 24 755 142-S

KIT, VALVE COVER

Note: (includes 19 [qty 1], 20 [qty 4], 35) (After S/N 333200001)

$38.99

$

In Stock, only 1 left!

0

35

Kohler 25 313 03-S

GROMMET, RUBBER

$11.99

$

In Stock, only 3 left!

0

36

Kohler 24 755 57-S

KIT, BREATHR SEPARATR-(#24755241S)
(Superseded to 24 755 241-S)

Note: (includes 35, 37-40)

$90.99

$

In Stock, Qty 7

0

37

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

38

Kohler 24 445 02-S

STRAP, BREATHER - USE 24 755 241-S
(Superseded to 24 755 241-S)

$90.99

$

In Stock, Qty 7

0

39

Kohler 24 126 44-S

BRACKET, BREATHER SEPARATOR

$5.49

$

Usually ships in 2-5 days

0

40

Kohler 24 112 12-S

SPACER
(Superseded to 24 755 241-S)

$90.99

$

In Stock, Qty 7

0

41

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

42

Kohler 24 326 54-S

HOSE, BREATHER-USE 24 326 63-S
(Superseded to 24 326 63-S)

$6.99

$

In Stock, only 2 left!

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 15

0

2404101-S

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

Note: NOT ILLUSTRATED

$2.99

$

In Stock, Qty 7

0

2404149-S

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

Note: NOT ILLUSTRATED

$2.99

$

In Stock, Qty 20+

0

2415327-S

Kohler 24 153 27-S

O-RING, INTAKE PORT

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 8

0

24755147-S

Kohler 24 755 147-S

KIT, CYLINDER HEAD HARDWARE

Note: NOT ILLUSTRATED(SERVICES 1 HEAD. QUANTITIES LISTED ARE FOR BOTH HEADS) (INCLUDES 8, 12-14, 26, 27, 29-33)

$96.99

$

In Stock, only 3 left!

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2545405-S

Kohler 25 454 05-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
