CV740-0006 - Kohler Command PRO Engine, Made for Husqvarna, 25hp, 725cc Crankcase Group 2-24-328 Parts Diagram

Command PRO Engine, Made for Husqvarna, 25hp, 725cc

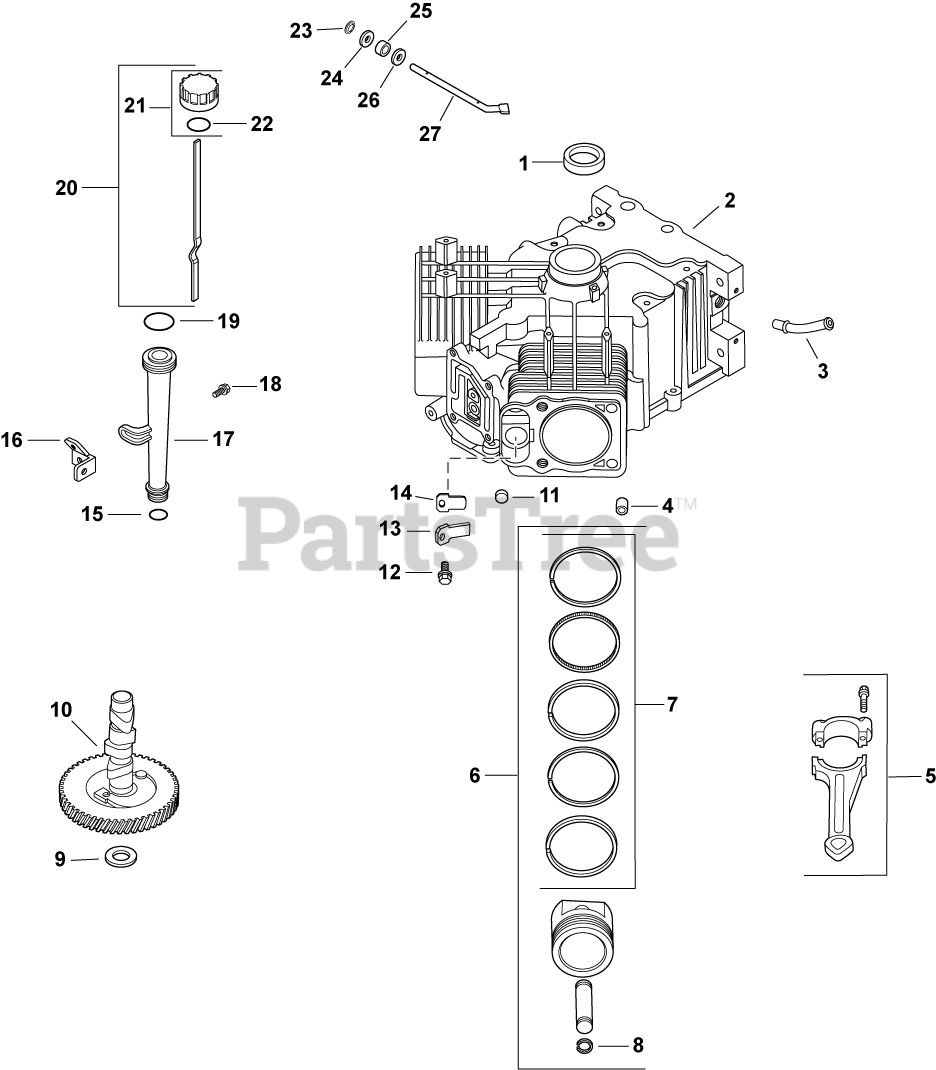

Crankcase Group 2-24-328 Parts Diagram

  • Title

1

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

2

CRANKCASE

Note: (USE: Miniblock 24 782 14)

$

$

Not available

3

Kohler 24 294 13-S

FITTING

$11.99

$

Usually ships in 2-5 days

0

4

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

5

Kohler 24 067 28-S

ROD, ASSY CONNECTING (STD)-(#2406730S)
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 4 left!

0

2406729-S

Kohler 24 067 29-S

ROD ASSY, CONNECTING U/S (.010”) (.25 mm) -USE 24 067 31-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

6

Kohler 25 874 01-S

PISTON W/RINGS (STYLE A) (STD) - RING SET 24 108 14-S USE 25 874 13-S
(Superseded to 25 874 13-S)

Note: (includes 7, 8)

$270.99

$

In Stock, only 2 left!

0

2587402-S

Kohler 25 874 02-S

PISTON W/RINGS (STYLE A)(0.08) - RING SET 24 108 15-S USE 25 874 07-S
(Superseded to 25 874 07-S)

$261.99

$

Usually ships in 2-5 days

0

2587403-S

Kohler 25 874 03-S

PISTON W/RINGS (STYLE A)(0.25)(#2587408S) - RING SET 24 108 16-S
(Superseded to 25 874 16-S)

$261.99

$

In Stock, only 1 left!

0

2587404-S

Kohler 25 874 04-S

PISTON W/RINGS (STYLE A)(.50) - (#2587409S) - RING SET 24 108 17-S
(Superseded to 25 874 17-S)

$261.99

$

Usually ships in 2-5 days

0

7

Kohler 24 108 14-S

DISC USE PISTON ASSY PER SPEC-RING SET(STD)STYLE A-1.5mm Tp RING THICK - Discontinued

$

$

Not available

2410815-S

Kohler 24 108 15-S

RING SET(.08)STYLE A-1.5mm Tp RING THICK

$103.99

$

In Stock, only 3 left!

0

2410816-S

Kohler 24 108 16-S

RING SET(.25)STYLE A-1.5mm Tp RING THICK

$103.99

$

In Stock, only 2 left!

0

2410817-S

Kohler 24 108 17-S

RING SET(.50)STYLE A-1.5mm Tp RING THICK

$

$

Not available

8

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

9

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

10

Kohler 24 012 18-S

KIT, CAMSHAFT

Note: (includes 25 357 14-S)

$

$

Not available

11

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

12

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

13

Kohler 24 018 04-S

RETAINER, BREATHER REED

$2.49

$

In Stock, only 2 left!

0

14

Kohler 24 402 05-S

REED, BREATHER
(Superseded to 24 402 07-S)

$3.99

$

In Stock, Qty 8

0

15

Kohler 12 153 01-S

O-RING, LOWER OIL FILL TUBE

$4.99

$

In Stock, Qty 16

0

16

Kohler 24 126 19-S

BRACKET, OIL FILL TUBE USE 24 126 243-S
(Superseded to 24 126 246-S)

$9.49

$

Usually ships in 2-5 days

0

17

Kohler 25 123 07-S

TUBE ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

18

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

19

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, Qty 8

0

20

Kohler 24 038 04-S

DIPSTICK, ASSY

Note: (includes 21, 22)

$19.99

$

In Stock, only 1 left!

0

21

Kohler 25 755 13-S

KIT, OIL FILL CAP (BLACK)

Note: (Includes 22)

$13.99

$

In Stock, only 1 left!

0

22

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 1 left!

0

23

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

24

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

25

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

26

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

27

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0
