CV732-3040 - Kohler Command PRO Engine, Made for Metalcraft Scag, 23.5hp, 747cc 06 Blower Housing Parts Diagram

Command PRO Engine, Made for Metalcraft Scag, 23.5hp, 747cc

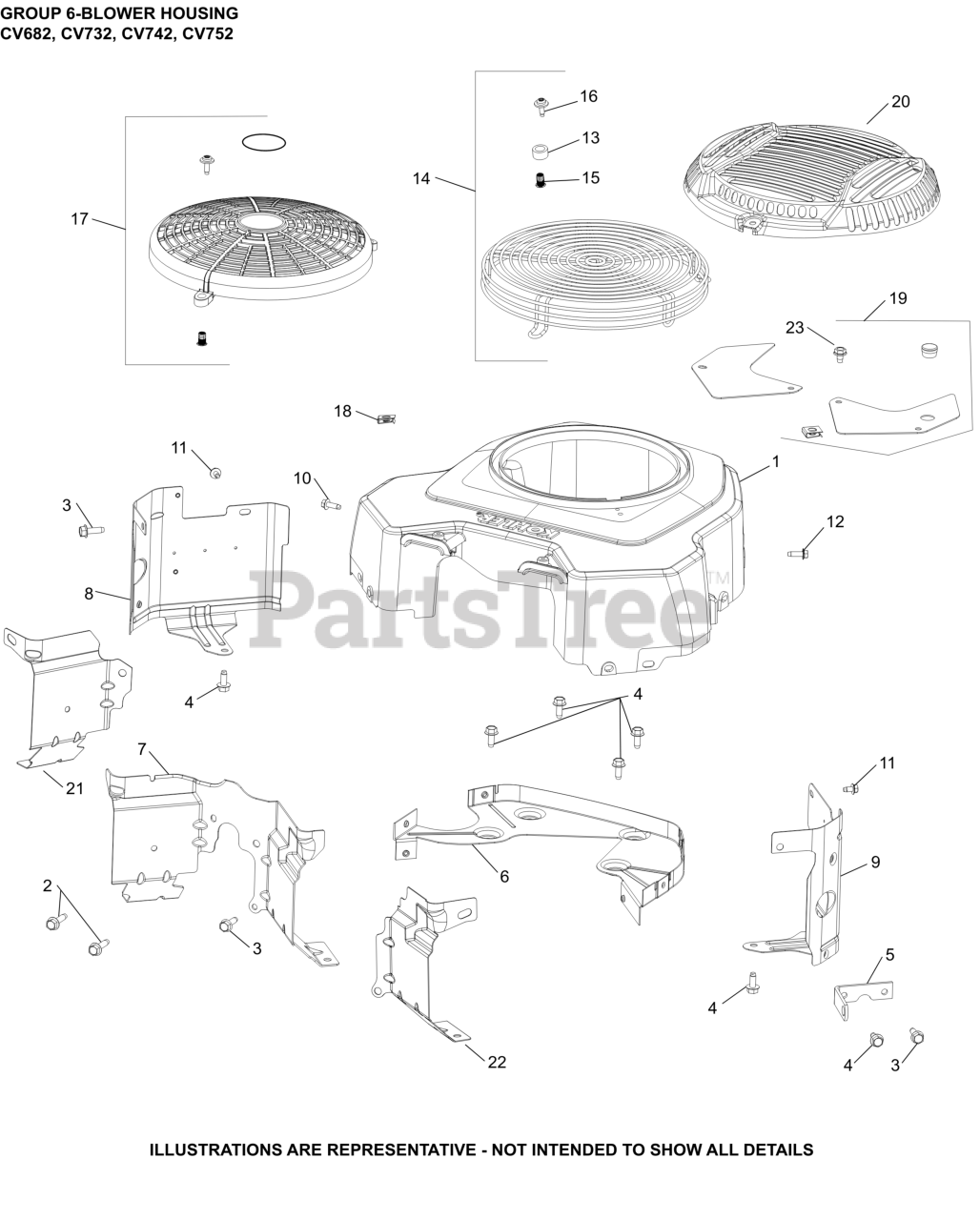

06 Blower Housing Parts Diagram

  • Title

1

Kohler 24 027 428-S

KIT, BLOWER HOUSING

$88.99

$

In Stock, only 1 left!

0

4

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

6

Kohler 24 146 59-S

KIT, BACKING PLATE

$15.99

$

In Stock, only 1 left!

0

8

Kohler 24 063 85-S

KIT, CYL BAFFEL #1 SIDE

$17.99

$

In Stock, only 1 left!

0

9

Kohler 24 063 88-S

BAFFLE, LEFT BARREL

$28.99

$

Usually ships in 2-5 days

0

10

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

12

Kohler 25 086 426-S

SCREW, THREAD FORMING

$2.49

$

In Stock, Qty 15

0

13

Kohler 25 112 30-S

SPACER

$4.49

$

In Stock, only 1 left!

0

14

Kohler 25 332 19-S

INSERT, THREADED (M5)

$3.49

$

In Stock, Qty 5

0

16

Kohler 25 086 160-S

SCREW, SEMS

$2.99

$

In Stock, Qty 14

0

20

Kohler 25 314 04-S

GUARD, GRASS SCREEN (METAL)

$27.99

$

In Stock, only 3 left!

0

21

Kohler 24 063 114-S

BAFFLE, VALLEY #1 CYLINDER

$6.49

$

In Stock, only 1 left!

0

22

Kohler 24 063 94-S

BAFFLE, VALLEY #2 CYLINDER

$9.49

$

Usually ships in 2-5 days

0

NI

Kohler 25 445 06-S

STRAP, LIFTING

$2.49

$

In Stock, only 1 left!

0
