CV732-3032 - Kohler Command PRO Engine, Made for Exmark, 23.5hp, 747cc Fuel System Group 8-24-926 CV682-752 Manifold 24 164 203 Parts Diagram

Command PRO Engine, Made for Exmark, 23.5hp, 747cc

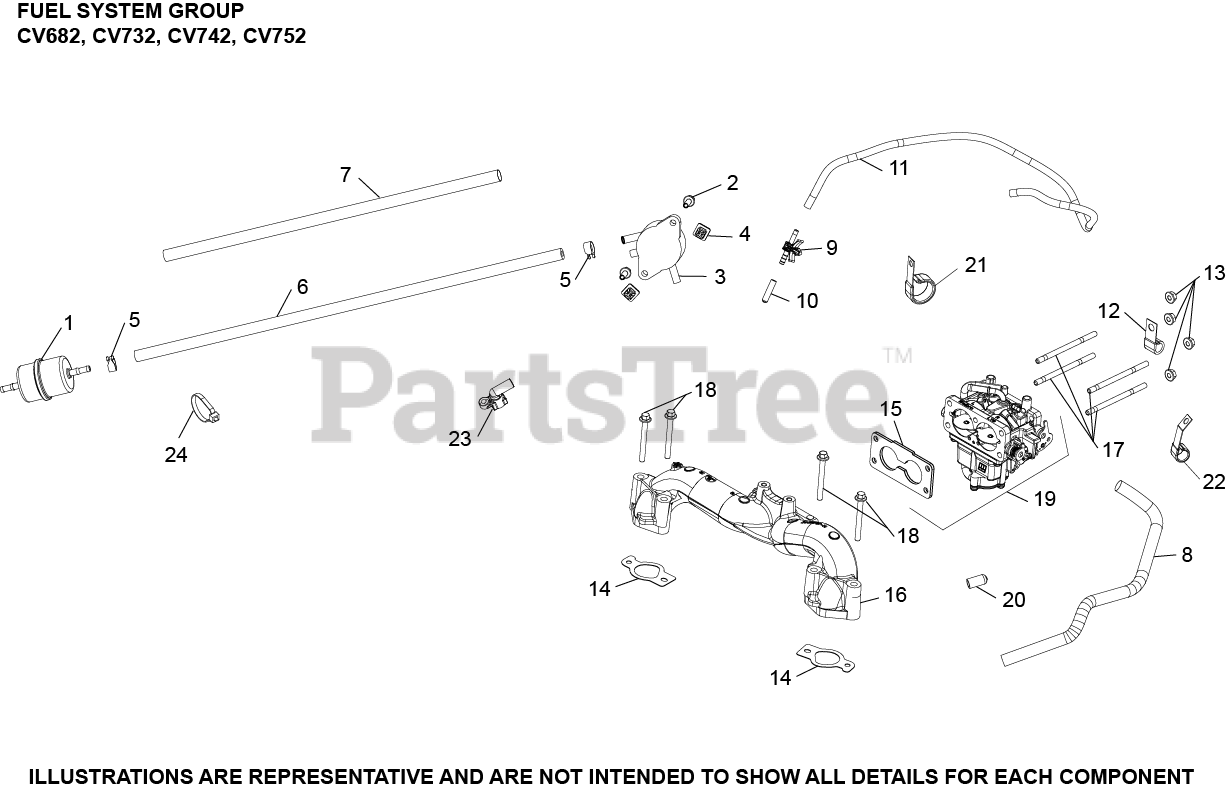

Fuel System Group 8-24-926 CV682-752 Manifold 24 164 203 Parts Diagram

  • Title

1

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

2

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

3

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 16

0

4

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 7

0

5

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

6

Kohler 25 111 81-S

HOSE, FUEL LOW PERMEATION

$17.99

$

In Stock, only 3 left!

0

8

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.49

$

Usually ships in 2-5 days

0

12

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

13

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 6

0

14

Kohler 24 041 79-S

GASKET, INTAKE MANIFOLD

$2.99

$

In Stock, Qty 7

0

15

Kohler 24 041 84-S

GASKET, CARBURETOR

$14.99

$

In Stock, only 1 left!

0

16

Kohler 24 164 138-S

MANIFOLD, INTAKE (VERTICAL 2BBL)
(Superseded to 24 164 384-S)

$104.99

$

Usually ships in 2-5 days

0

17

Kohler M-629095-S

STUD,M6X1.0X96

$3.99

$

In Stock, only 2 left!

0

18

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

19

Kohler 24 853 244-S

KIT, CARBURETOR
(Superseded to 24 853 276-S)

$371.99

$

Usually ships in 2-5 days

0

23

Kohler 24 155 05-S

FITTING, EVAP CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

24

Kohler 25 454 05-S

TIE

$2.49

$

In Stock, only 2 left!

0

25086157-S

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

2407942-S

Kohler 24 079 42-S

LINKAGE, THROTTLE

$4.49

$

Usually ships in 2-5 days

0

2451841-S

Kohler 24 518 41-S

CARB SOLENOID LEAD

$13.99

$

Usually ships in 2-5 days

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0
