CV732-3032 - Kohler Command PRO Engine, Made for Exmark, 23.5hp, 747cc Crankcase Group 2-24-428 CV682-752 Parts Diagram

Command PRO Engine, Made for Exmark, 23.5hp, 747cc

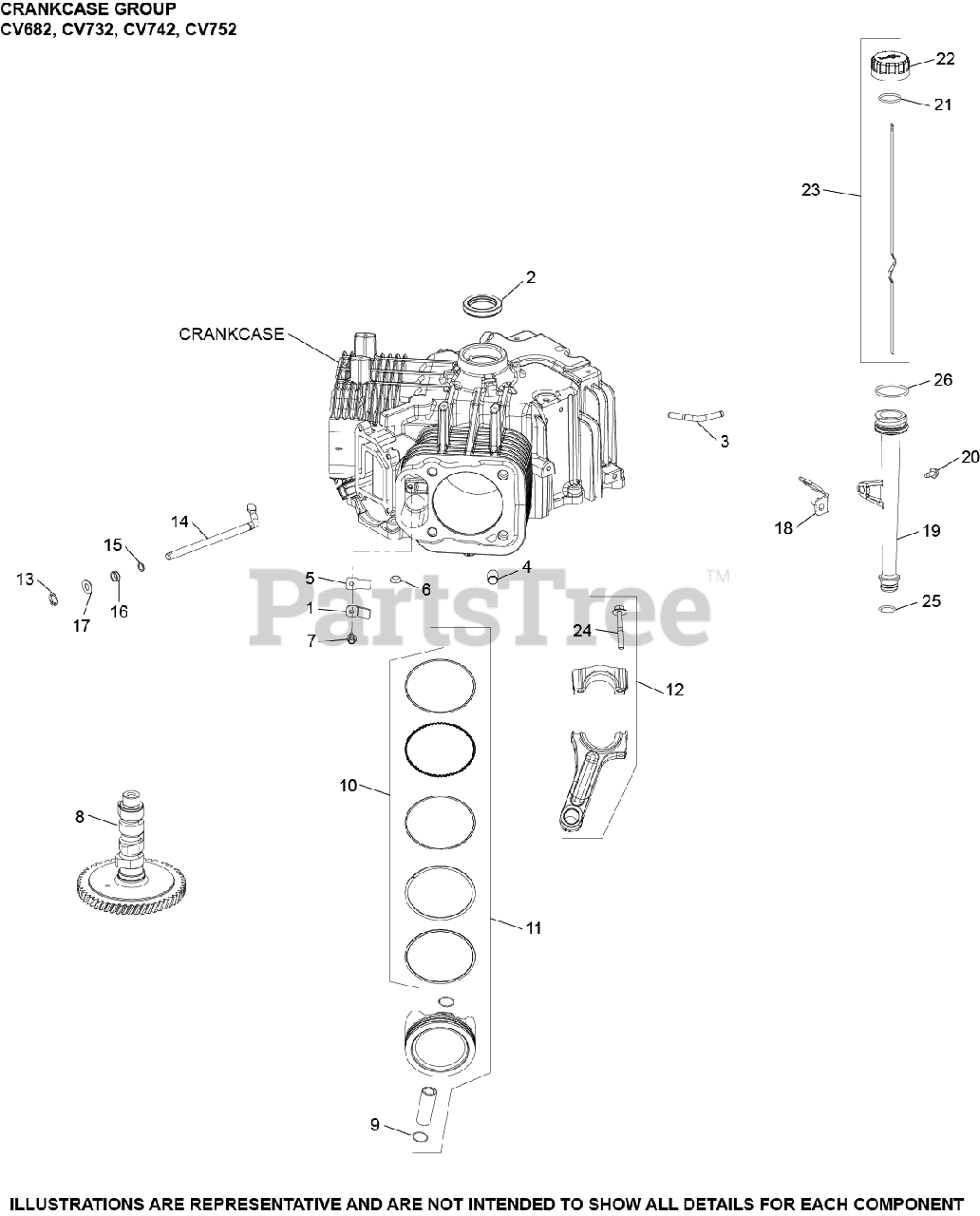

Crankcase Group 2-24-428 CV682-752 Parts Diagram

  • Title

1

Kohler 24 018 04-S

RETAINER, BREATHER REED

$2.49

$

In Stock, only 2 left!

0

2

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

3

Kohler 24 294 13-S

FITTING

$11.99

$

Usually ships in 2-5 days

0

4

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

5

Kohler 24 402 05-S

REED, BREATHER
(Superseded to 24 402 07-S)

$3.99

$

In Stock, Qty 8

0

6

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

7

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

8

Kohler 24 012 29-S

KIT, CAMSHAFT

$153.99

$

In Stock, only 1 left!

0

9

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

10

Kohler 25 108 01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$63.99

$

In Stock, only 2 left!

0

10

Kohler 25 108 02-S

RING SET(.08)STYLE B-1.2mm Tp RING THICK

$26.99

$

In Stock, only 1 left!

0

10

Kohler 25 108 03-S

RING SET(.25)STYLE B-1.2mm Tp RING THICK

$26.99

$

Usually ships in 2-5 days

0

10

Kohler 25 108 04-S

RING SET(.50)STYLE B-1.2mm Tp RING THICK

$103.99

$

Usually ships in 2-5 days

0

11

Kohler 25 874 14-S

PISTON W/RINGS (STYLE B)(STD) - RING SET 25 108 01-S

$174.99

$

In Stock, Qty 6

0

11

Kohler 25 874 18-S

PISTON W/RINGS (STYLE B)(.08) - RING SET 25 108 02-S

$206.99

$

Usually ships in 2-5 days

0

11

Kohler 25 874 19-S

PISTON W/RINGS (STYLE B)(.25) - RING SET 25 108 03-S

$253.99

$

Usually ships in 2-5 days

0

11

Kohler 25 874 20-S

PISTON W/RINGS (STYLE B)(.50) - RING SET 25 108 04-S

$250.99

$

Usually ships in 2-5 days

0

12

Kohler 24 067 34-S

KIT, CONNECTING ROD ASSEMBLY USE 25 067 04-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 3 left!

0

13

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

15

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

16

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

17

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

18

Kohler 24 126 19-S

BRACKET, OIL FILL TUBE USE 24 126 243-S
(Superseded to 24 126 246-S)

$9.49

$

Usually ships in 2-5 days

0

19

Kohler 25 123 07-S

TUBE ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

20

Kohler M-545013-S

SCREW, FLG THD FRM M5X0.8X13

$2.49

$

In Stock, Qty 7

0

21

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 1 left!

0

22

Kohler 24 755 46-S

KIT, OIL FILL CAP (YELLOW)

$11.99

$

Usually ships in 2-5 days

0

23

Kohler 24 038 04-S

DIPSTICK, ASSY

$19.99

$

In Stock, only 1 left!

0

24

Kohler 25 086 452-S

KIT, ROD BOLTS
(Superseded to 25 086 677-S)

$2.49

$

In Stock, only 3 left!

0

25

Kohler 12 153 01-S

O-RING, LOWER OIL FILL TUBE

$4.99

$

In Stock, Qty 16

0

26

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, Qty 8

0
