CV730-3142 - Kohler Command PRO Engine, Made for Exmark, 23.5hp, 725cc Oil Pan/Lubrication 3-24-736 Parts Diagram

Command PRO Engine, Made for Exmark, 23.5hp, 725cc

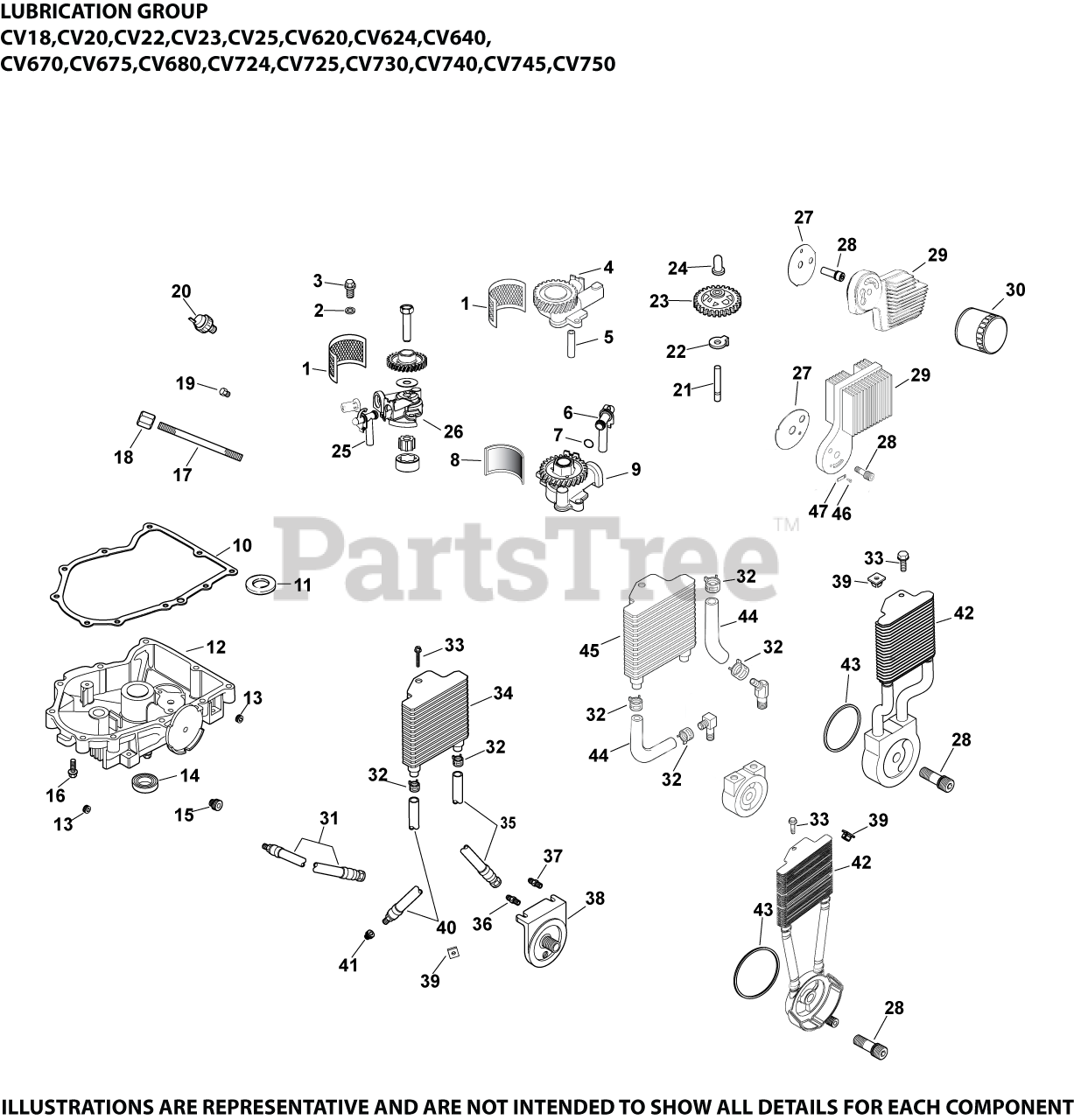

Oil Pan/Lubrication 3-24-736 Parts Diagram

  • Title
6

Kohler 24 381 11-S

KIT, OIL PICK-UP TUBE

$

$

Not available

7

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 8

0

8

Kohler 24 162 26-S

SCREEN, OIL

$17.99

$

In Stock, only 1 left!

0

9

Kohler 24 393 53-S

KIT, OIL PUMP ASSEMBLY

$

$

Not available

10

Kohler 24 041 66-S

GASKET, OIL PAN

$25.99

$

In Stock, Qty 17

0

11

$6.99

$

In Stock, only 2 left!

0

12

Kohler 24 199 32-S

KIT, OIL PAN USE 24 199 35-S
(Superseded to 24 199 35-S)

$337.99

$

In Stock, only 1 left!

0

13

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

14

Kohler 25 032 06-S

SEAL, OIL

$10.99

$

In Stock, Qty 19

0

16

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 7

0

21

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

22

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

23

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, Qty 10

0

24

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 8

0

28

Kohler 24 136 05-S

NIPPLE, OIL FILTER
(Superseded to 24 136 10-S)

$13.99

$

Usually ships in 2-5 days

0

30

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

39

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 7

0

42

Kohler 54 755 21-S

KIT, OIL COOLER

$257.99

$

Usually ships in 2-5 days

0

43

Kohler 24 153 21-S

O-RING, OIL COOLER

$6.49

$

In Stock, Qty 7

0

2508649-S

Kohler 25 086 49-S

SCREW, TAPPING
(Superseded to 24 086 12-S)

Note: NOT ILLUSTRATED

$

$

Not available

2513957-S

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2508617-S

Kohler 25 086 17-S

SCREW - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

25086401-S

Kohler 25 086 401-S

SCREW, THREAD FORMING

Note: NOT ILLUSTRATED

$2.99

$

In Stock, only 2 left!

0

X-25-53-S

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
