CV730-3124 - Kohler Command PRO Engine, Made for Exmark, 23.5hp, 725cc Fuel System 8-24-731 Parts Diagram

Command PRO Engine, Made for Exmark, 23.5hp, 725cc

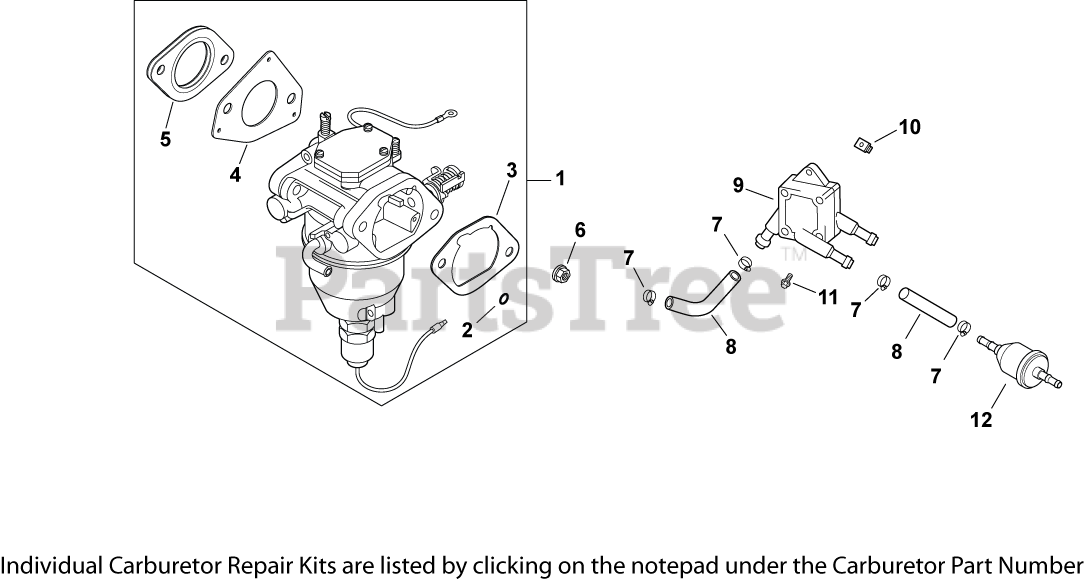

Fuel System 8-24-731 Parts Diagram

  • Title

1

Kohler 24 853 92-S

KIT, CARBURETOR w/GASKETS
(Superseded to 24 853 317-S)

Note: (includes 2-5)

$614.99

$

Usually ships in 2-5 days

0

2

Kohler 25 153 05-S

O-RING

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

4

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, Qty 9

0

5

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

6

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

7

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

8

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 3 left!

0

9

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 9

0

10

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 13

0

11

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

12

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

2443101-S

Kohler 24 431 01-S

SLEEVE,INSULATING 6.0"-USE 24 431 02-S
(Superseded to 24 431 02-S)

Note: NOT ILLUSTRATED

$5.99

$

Usually ships in 2-5 days

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545405-S

Kohler 25 454 05-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
