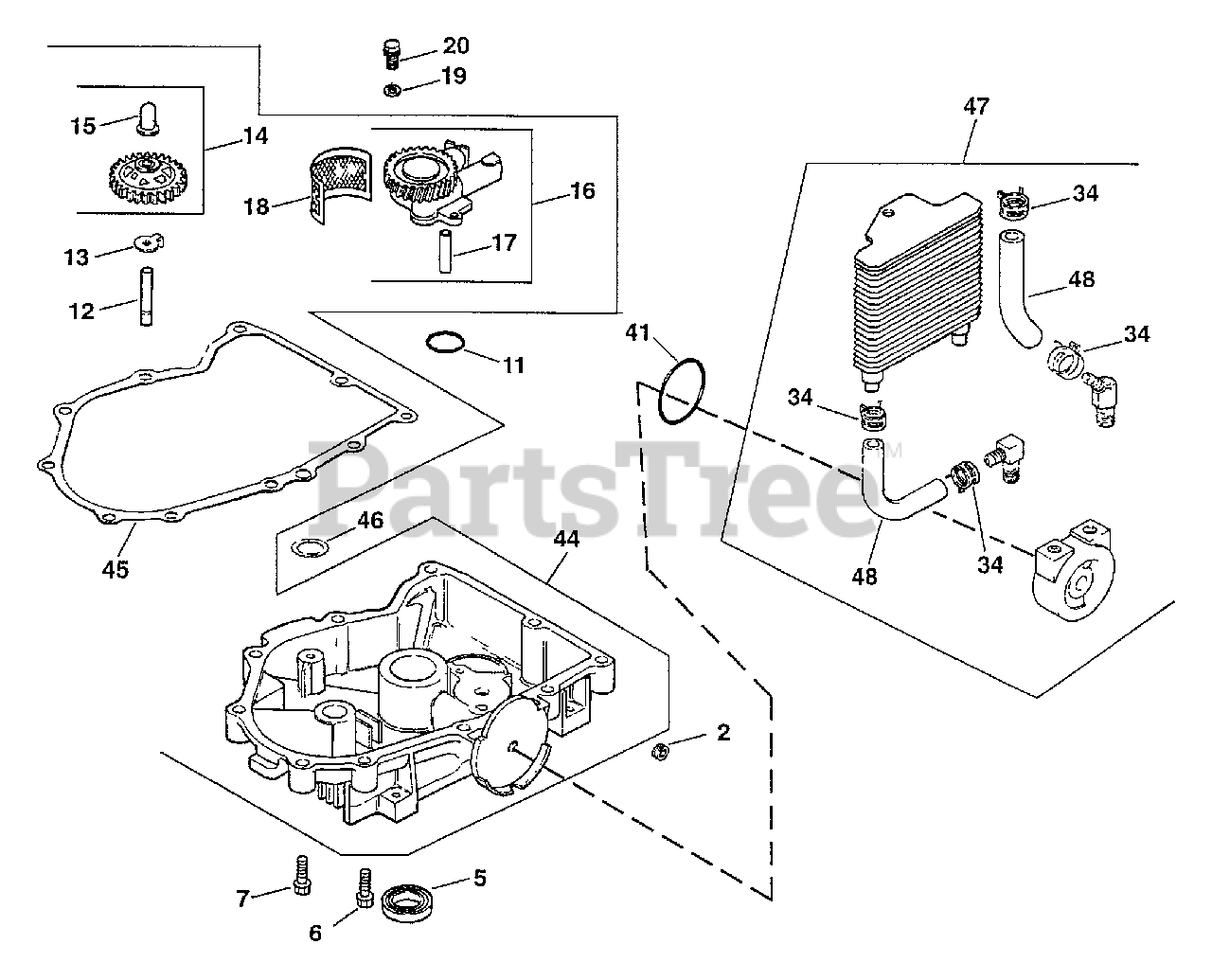

CV730-0011 - Kohler Command PRO Engine, Made for Rich Mfg., 23.5hp, 725cc Oil Pan/Lubrication (Cont.) 3-24-60 (TP-2461) Rev 10/12/2006 Parts Diagram

Command PRO Engine, Made for Rich Mfg., 23.5hp, 725cc

Oil Pan/Lubrication (Cont.) 3-24-60 (TP-2461) Rev 10/12/2006 Parts Diagram

  • Title

2

Kohler X-75-32-S

PLUG, PIPE CTSK 3/8" USE 25 139 62-S
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

5

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$10.99

$

In Stock, Qty 20+

0

6

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0

7

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

12

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 10

0

13

Kohler 52 448 02-S

USE 24 448 01-S LOCKING TAB
(Superseded to 24 448 01-S)

$2.49

$

In Stock, only 2 left!

0

14

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: Includes 15

$68.99

$

In Stock, Qty 13

0

15

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 12

0

16

Kohler 24 393 08-S

USE 24 393 37-S OIL PUMP KIT
(Superseded to 24 393 51-S)

Note: Reference No. 24-237-03 or 04 stamped on housing. Includes 17

$

$

Not available

17

Kohler 24 123 05-S

USE 24 381 11-S TUBE
(Superseded to 24 381 11-S)

$

$

Not available

18

Kohler 25 162 07-S

SCREEN, OIL-USE 24 162 26-S
(Superseded to 24 162 26-S)

$17.99

$

In Stock, only 1 left!

0

19

Kohler M-0631005

WASHER - USE M-631005
(Superseded to M-631005)

$2.49

$

In Stock, only 1 left!

0

20

Kohler M-0645025

SCREW - USE M-645025
(Superseded to M-645025)

$2.49

$

In Stock, only 2 left!

0

34

Kohler 24 237 03-S

USE 24 237 10-S CLAMP
(Superseded to 24 237 10-S)

$4.99

$

In Stock, only 2 left!

0

41

Kohler 24 153 13-S

USE 24 153 25-S O-RING
(Superseded to 24 153 25-S)

$6.99

$

In Stock, only 2 left!

0

44

Kohler 24 755 59-S

OIL PAN W/GASKET KIT-USE 24 755 128-S
(Superseded to 24 755 128-S)

Note: Includes 12-18,45

$337.99

$

In Stock, only 1 left!

0

45

Kohler 24 041 24-S

USE 24 041 54-S GASKET
(Superseded to 24 041 54-S)

$25.99

$

In Stock, Qty 11

0

46

Kohler 24 422 03-S

SHIM, THRUST (GREEN .875MM) - DISCONTINUED

Note: 0.8366 - 0.9127

$

$

Not available

47

Kohler 24 594 09-S

USE 24 594 28-S OIL COOLER
(Superseded to 24 594 28-S)

Note: Includes 34,48

$257.99

$

Usually ships in 2-5 days

0

48

Kohler 24 326 15-S

HOSE-USE 24 326 17-S
(Superseded to 24 326 17-S)

$16.99

$

In Stock, only 2 left!

0
