CV680-3016 - Kohler Command PRO Engine, Made for Exmark, 22.5hp, 16.8kW Lubrication Group 3-24-941 CV18-750 Parts Diagram

Command PRO Engine, Made for Exmark, 22.5hp, 16.8kW

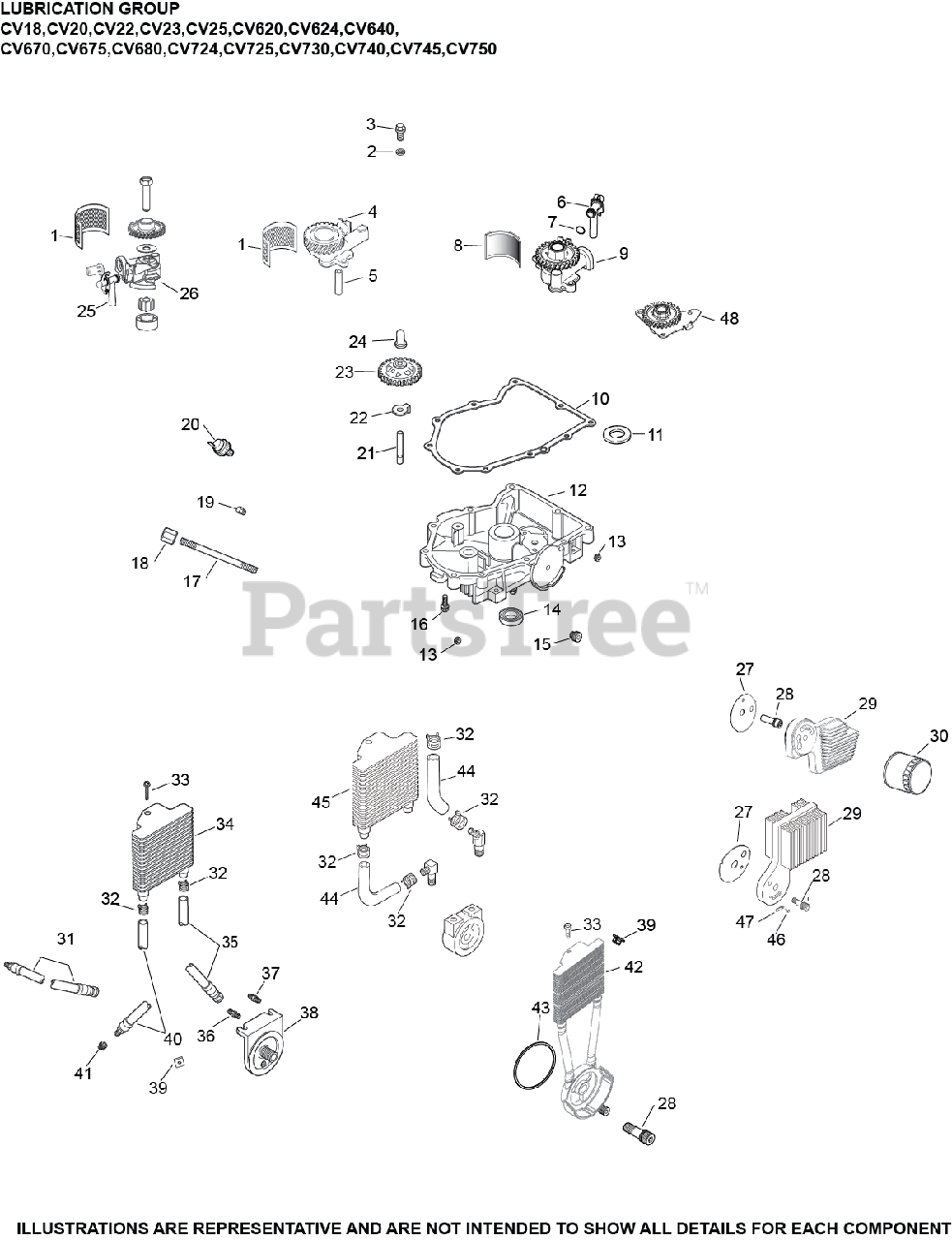

Lubrication Group 3-24-941 CV18-750 Parts Diagram

  • Title

10

Kohler 24 041 66-S

GASKET, OIL PAN

$25.99

$

In Stock, Qty 17

0

11

Kohler 24 153 08-S

O-RING

$6.99

$

In Stock, only 2 left!

0

12

Kohler 24 199 35-S

KIT, OIL PAN ASSEMBLY

$337.99

$

In Stock, only 1 left!

0

13

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

14

Kohler 25 032 06-S

SEAL, OIL

$10.99

$

In Stock, Qty 19

0

16

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 7

0

20

Kohler 24 099 03-S

SENSOR, OIL PSI
(Superseded to 24 755 425-S)

$29.99

$

In Stock, only 1 left!

0

21

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

22

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

23

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, Qty 10

0

24

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 8

0

30

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

48

Kohler 24 393 71-S

PUMP ASSEMBLY, OIL USE 24 393 89-S
(Superseded to 24 393 89-S)

$29.99

$

In Stock, only 1 left!

0

2513957-S

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2508617-S

Kohler 25 086 17-S

SCREW - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

1215305-S

Kohler 12 153 05-S

O-RING (1.78" DIA)

Note: NOT ILLUSTRATED

$7.99

$

In Stock, only 1 left!

0

2408974-S

Kohler 24 089 74-S

SPRING, COMPRESSION

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

2519403-S

Kohler 25 194 03-S

PRESSURE RELIEF BALL

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

3216206-S

Kohler 32 162 06-S

SCREEN, OIL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 2 left!

0

25086414-S

Kohler 25 086 414-S

SCREW, BUTTON HEAD
(Superseded to 25 086 792-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

2413601-S

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

Note: NOT ILLUSTRATED

$5.99

$

Usually ships in 2-5 days

0
